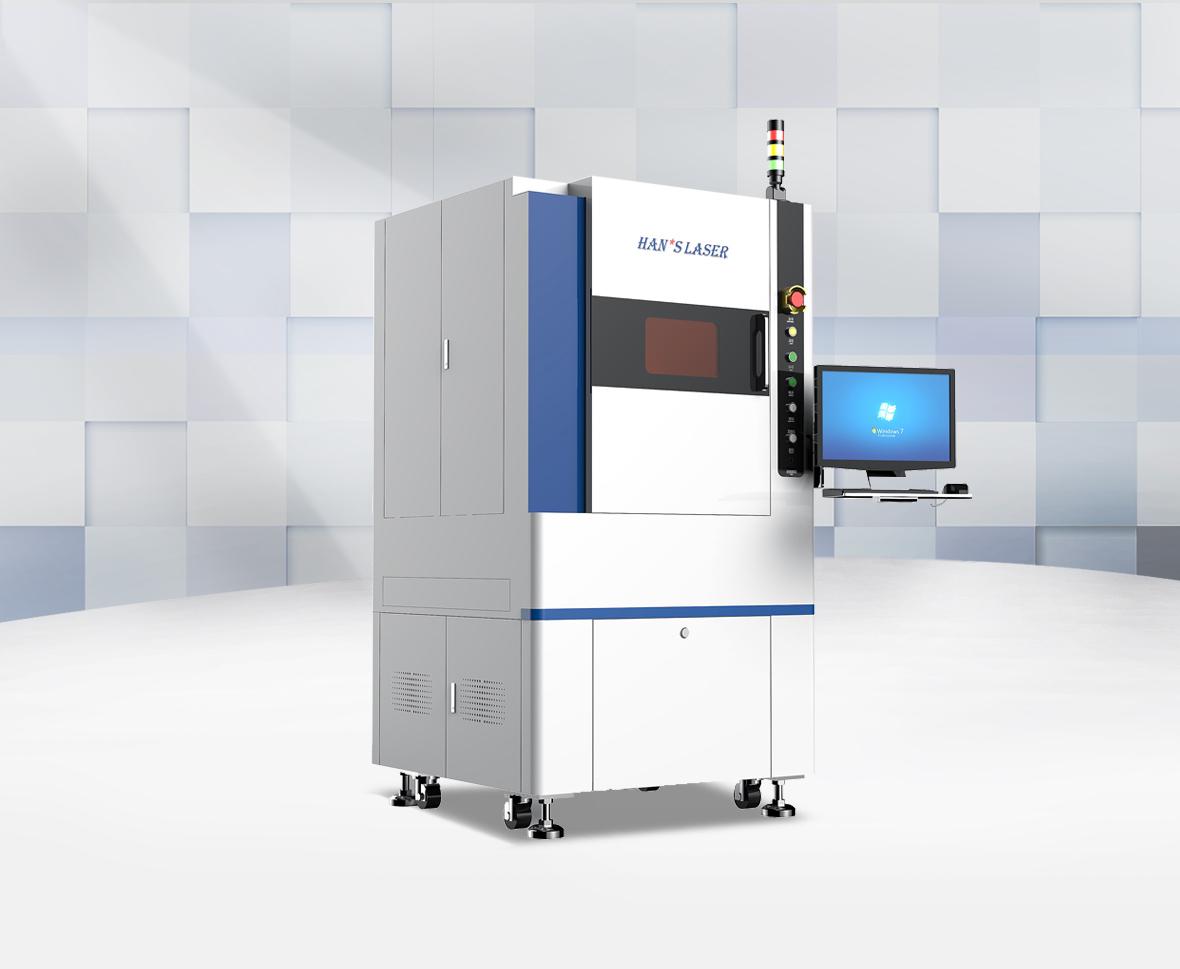

Offline PCBA (FPCBA) Cutting  machine HDZ-UVC3030
Offline PCBA (FPCBA) Cutting  machine HDZ-UVC3030

Offline PCBA (FPCBA) Cutting machine HDZ-UVC3030

Brief Description
1. With high-performance UV lase and self-developed control software.
2. With the high-precision motion platform system and high-precision galvanometer scanner.
3. With high-precision CCD positioning system.
Contact Us
应用:

Product Characteristics:

1. With high-performance UV laser, the laser cutting heat-affected zone is small and it can more efficiently process the high-density and highly integrated PCBA product

2. The self-developed control software has functions of multiple jointed board cutting, automatic focusing and distortion compensation to achieve high-precision processing

3. With the high-precision motion platform system and high-precision galvanometer scanner, the cutting precision is high

4. The high-precision CCD positioning system can ensure the product’s processing precision.

Application Field:

1. Suitable for precision cutting, half cutting, trenching of materials such as FPCBA, PCBA, RF, CVL and SIP

2. Applicable for the high-quality cutting of coverlay, PI, FR4, FR5 and CEM materials

3. Applicable for the precise processing of electronic industry like mobile phone fingerprint module, camera module, integrated chip.

规格:
Equipment parameters
Machine model HDZ-UVC3030
Control system (imported from Germany) square head + control card, Windows 7
Final processing repeated positioning precision ±0.02mm
Max. processing area 300mm*300mm
Camera positioning system 5MP
Support file format Dxf, plt and so on
Overall dimension (for reference) 1060*1000*1850mm
Power supply 220V, 50Hz, 6kW
Laser
Wavelength 355nm
Power 10W/15W
Min. line width 0.03mm
Fθ lens Box50*50mm
Cooling mode Water cooling
2D platform
Stroke 400mm*300mm
Repeated positioning precision ±0.002mm

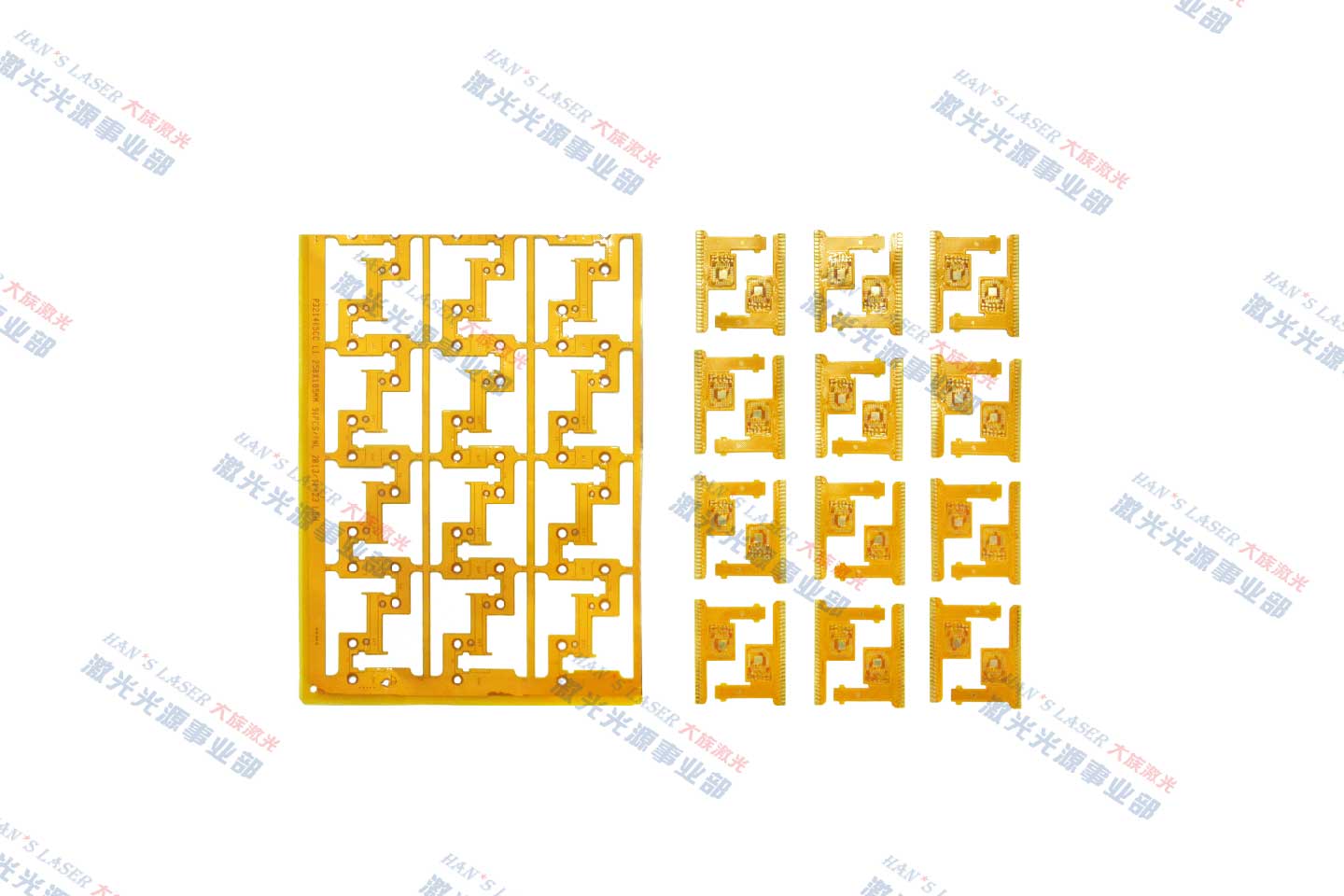

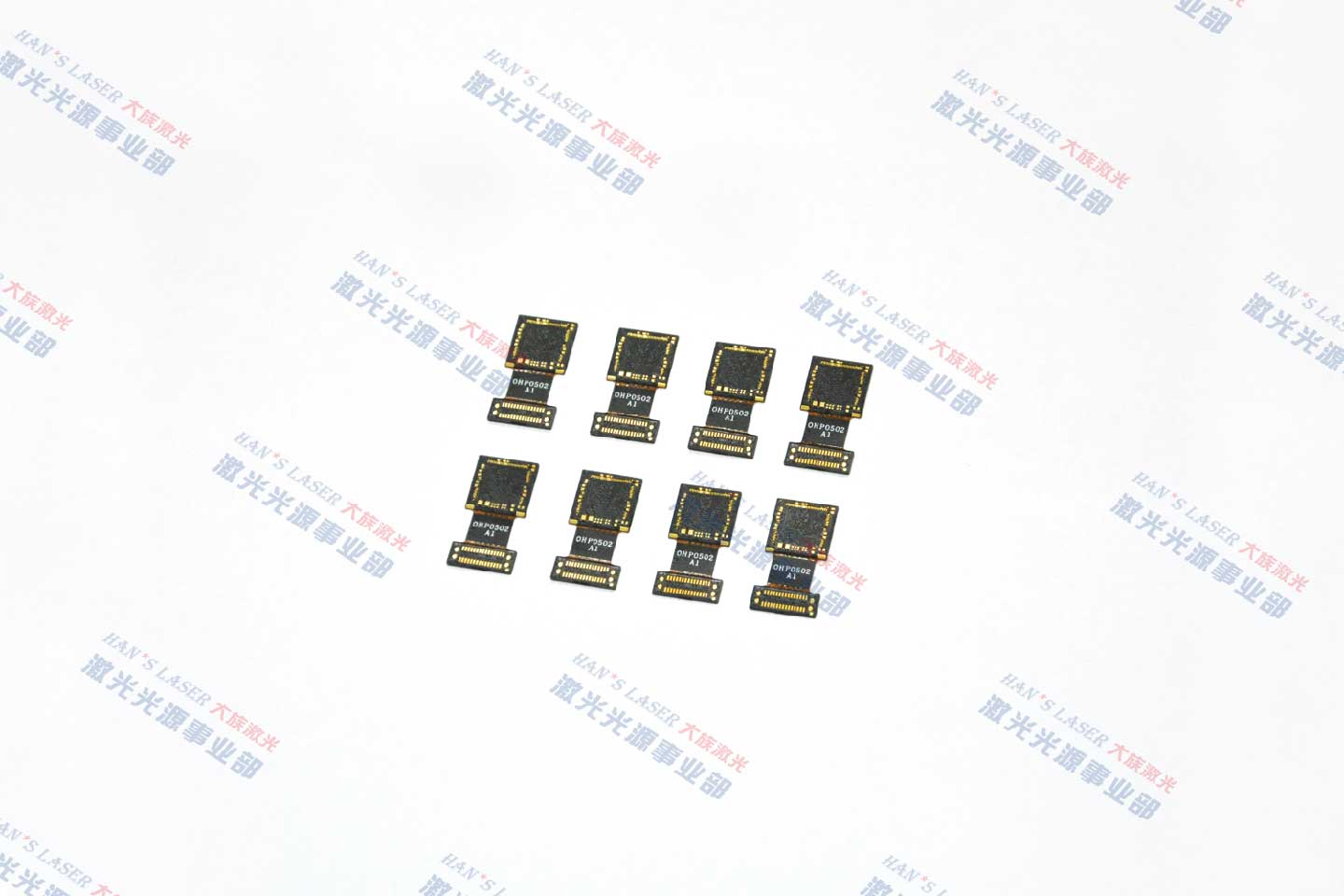

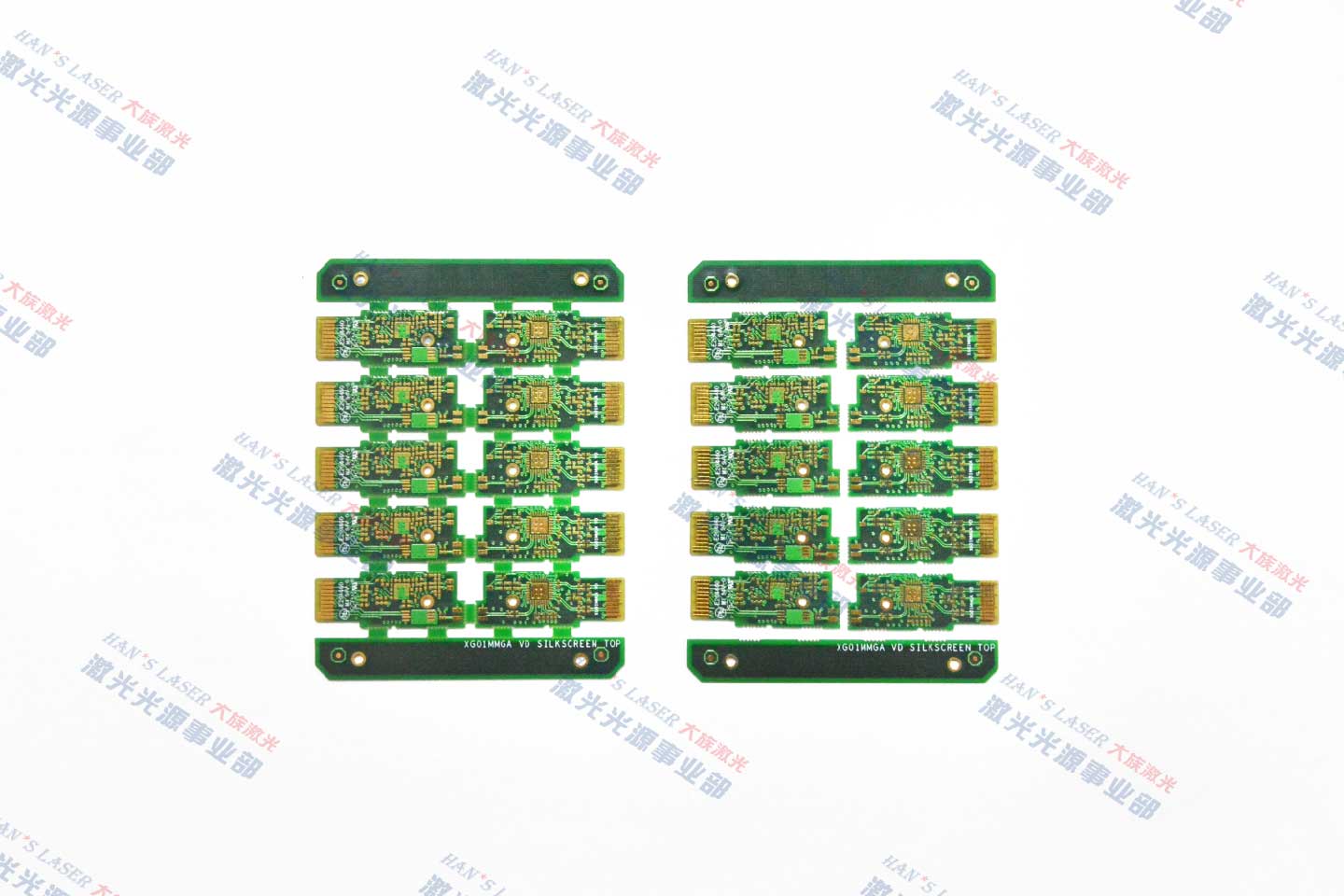

Sample
