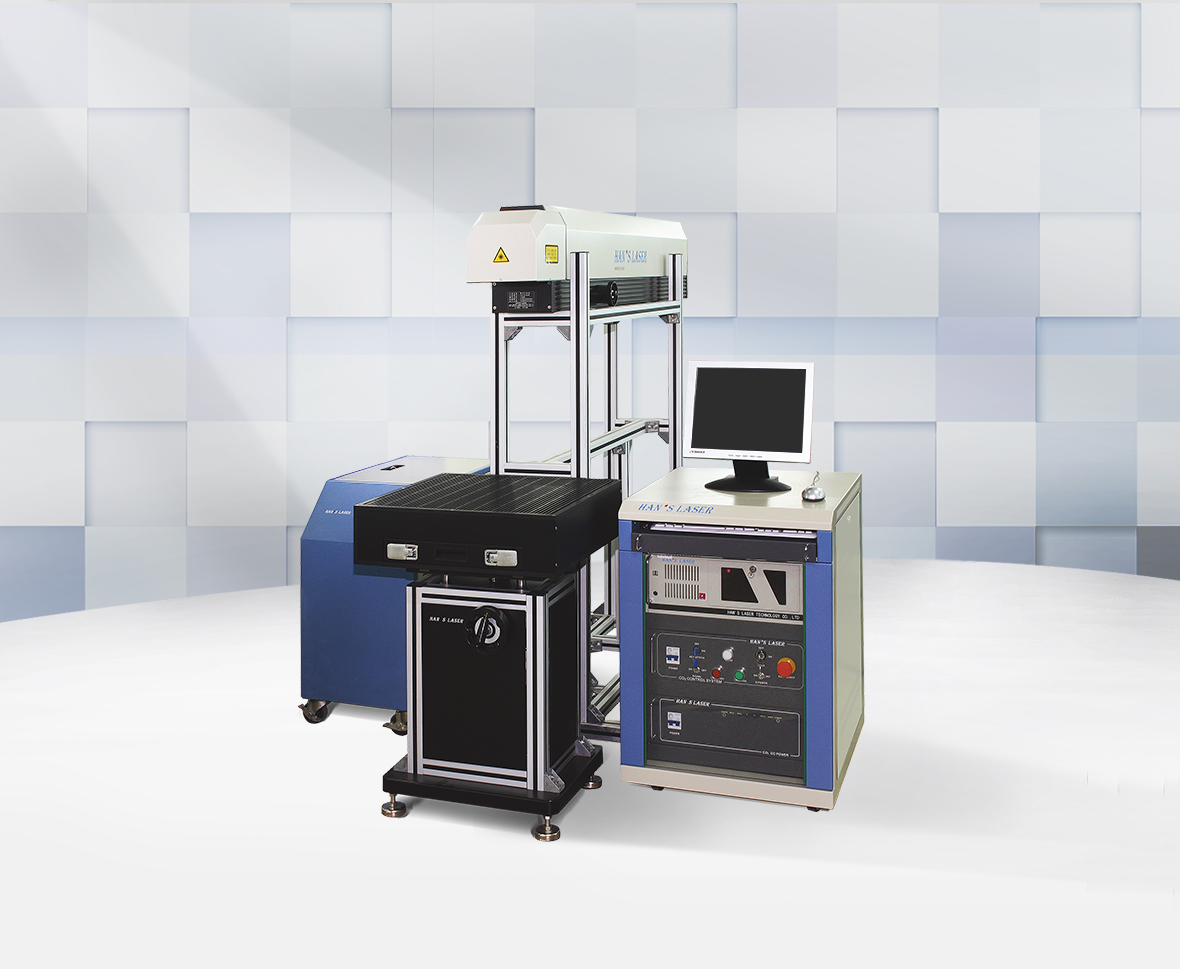

CO2-H120/H200
Brief Description
It can be widely used in graphic marks on craft gifts, food packaging, electronic components, PCB bar codes, FPC, ceramics, semiconductors, crystal glass, plastic parts, silicone rubber products and other non-metallic materials, as well as cutting.
Categories
CO2 laser marking
Contact Us
Features
Advanced processing model, high efficiency, low cost;
Full automation, easy to operate;
Environmental friendly;
Easy to identify products.
Advanced processing model, high efficiency, low cost;
Full automation, easy to operate;
Environmental friendly;
Easy to identify products.
Specification
| Mode | CO2-H120 | CO2-H200 |
| Laser | CO2 metal RF laser | CO2 metal RF laser |
| Wavelength | 10.64um | 10.64um |
| Max output power | 120W | 180W |
| Repetition frequency | ≤25kHz | ≤25kHz |
| Marking area | 120mm×120mm | 120mm×120mm |
| Marking speed | ≤7000mm/s | ≤7000mm/s |
| Min line width | 0.1mm | 0.1mm |
| Min Character | 0.6mm | 0.6mm |
| Cooling mode | Water cooling | Water cooling |
| Repetition accuracy | ±0.01mm | ±0.01mm |
| Overall size | 1780mm×415mm×1190mm | 1780mm×415mm×1190mm |
| Power supply | 220V/Single phase/50Hz/20A | 220V/Single phase/50Hz/20A |
| Lens | 140*140/B | 140*140/B |
| IPC | Great Wall | Great Wall |
| Monitor | 17” LED monitor | 17” LED monitor |
| Galvanometer system | Han’s CXY | Han’s CXY |
| Software | HLM＿V1.0 | HLM＿V1.0 |
| Marking control card | EMCC marking control card | EMCC marking control card |
| Water cooler | Han’s HC035L5-01A(UB) | Han’s HC025L5-01A(UB) |
Sample

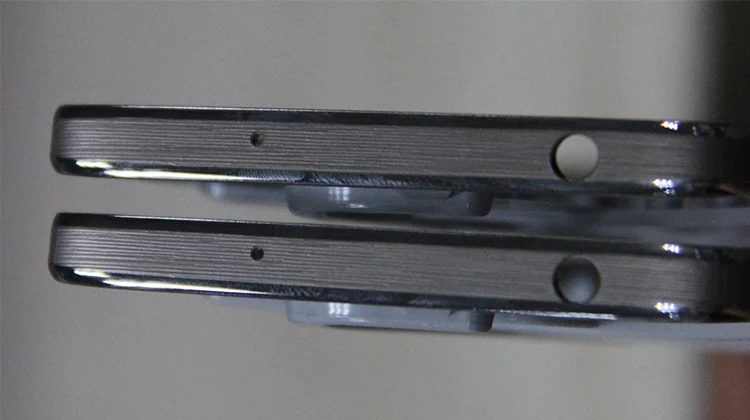

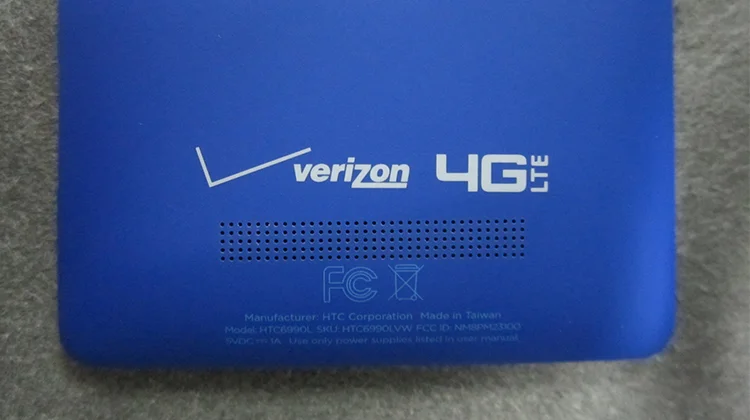

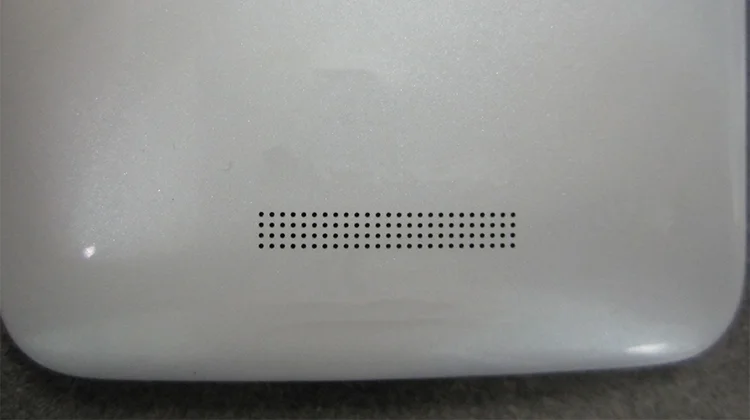

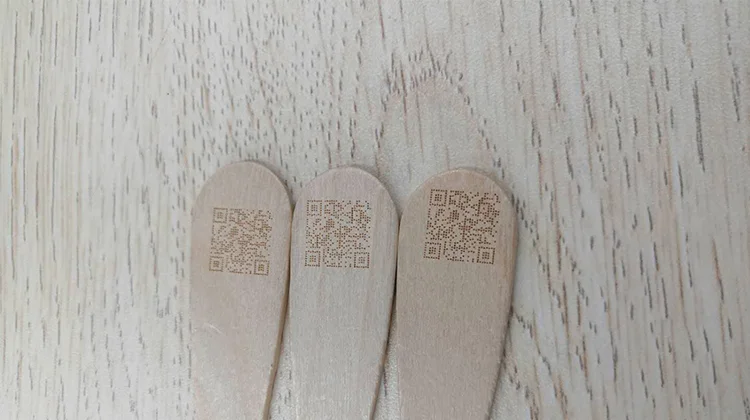

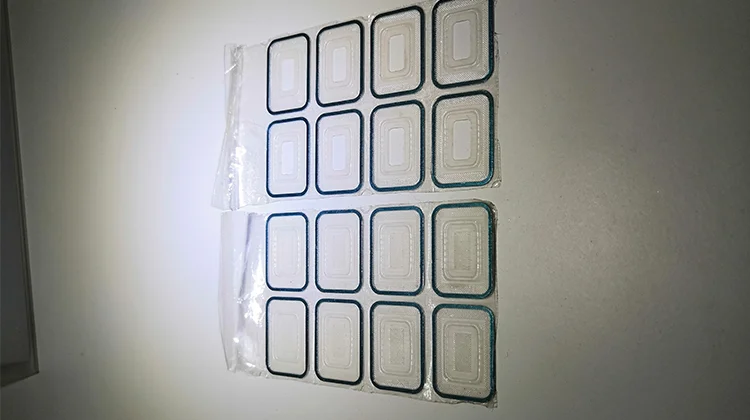

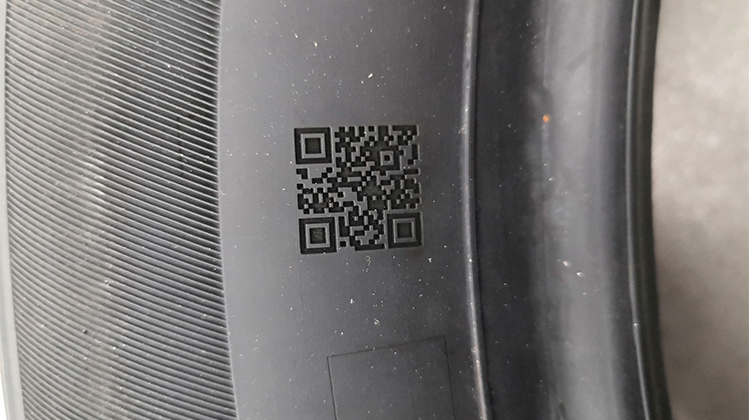

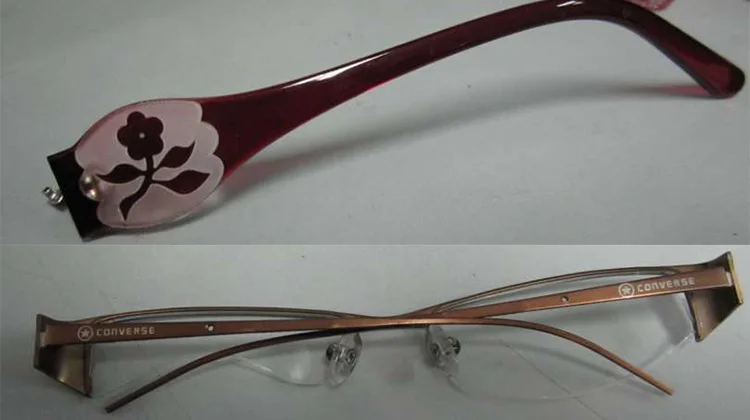

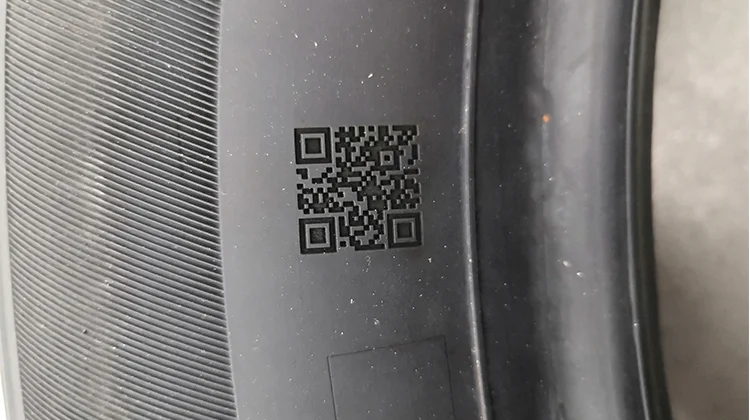

CO2 marking sample
CO2 marking sample
CO2 marking sample
CO2 marking sample
CO2 marking sample
CO2 marking sample
CO2 marking sample
