Advantages:
1. Integrated valve path design, reducing leak points & improving detection accuracy.
2. Sensitive testing, resolution of 0.1ml/min.
3. Compact size, easy to install.
4. Unique pressure algorithm, stable detection.
5. Equipped with a mechanical pressure regulator, can realize precise adjustment of the test air pressure with an accuracy of 0.1kPa.
Features:
Technical parameters:
1. Use flow method leak detection mode, can precisely detect flow values.
2. Test pressure is adjusted based on the required measuring range.
3. Five optional units for leakage value: ml/min, ml/h, L/min, L/h, sccm; other units can be developed based on actual needs.
4. With environmental drift correction, can achieve fast measurement.
5. Ethernet & RS232 interfaces.
6. Support 100 sets of program parameter settings.
7. Equipped with a 7" color touch screen & IO interfaces, easy to operate, can independently control peripheral components.
Range parameters:
PC software interfaces:
Specifications:
1. Integrated valve path design, reducing leak points & improving detection accuracy.
2. Sensitive testing, resolution of 0.1ml/min.
3. Compact size, easy to install.
4. Unique pressure algorithm, stable detection.
5. Equipped with a mechanical pressure regulator, can realize precise adjustment of the test air pressure with an accuracy of 0.1kPa.
Features:
1. 100 sets of parameter settings available, meeting various testing conditions and requirements.
2. Equipped with IO interfaces, can achieve external point control, such as solenoid valves, and achieve automatic control programming of IO points.
3. Equipped with PC software & a 7" touch screen, simple & clear interfaces, easy to use.
4. The PC supports data output, with the results saved in CSV format.
2. Equipped with IO interfaces, can achieve external point control, such as solenoid valves, and achieve automatic control programming of IO points.
3. Equipped with PC software & a 7" touch screen, simple & clear interfaces, easy to use.
4. The PC supports data output, with the results saved in CSV format.
5. Can be used for direct flow method testing & indirect flow method testing.
Technical parameters:
1. Use flow method leak detection mode, can precisely detect flow values.
2. Test pressure is adjusted based on the required measuring range.
3. Five optional units for leakage value: ml/min, ml/h, L/min, L/h, sccm; other units can be developed based on actual needs.
4. With environmental drift correction, can achieve fast measurement.
5. Ethernet & RS232 interfaces.
6. Support 100 sets of program parameter settings.
7. Equipped with a 7" color touch screen & IO interfaces, easy to operate, can independently control peripheral components.
Range parameters:
| Test air pressure range | 0-50kPa |
| Test air pressure resolution | 0.15%FS |
| Repeatability accuracy | Read±1.5%±7.5hPa |
| Flow range | 1~1000ml/min |
| Flow resolution | 0.1ml/min |
| Repeatability accuracy | Read±1%±1ml/min |

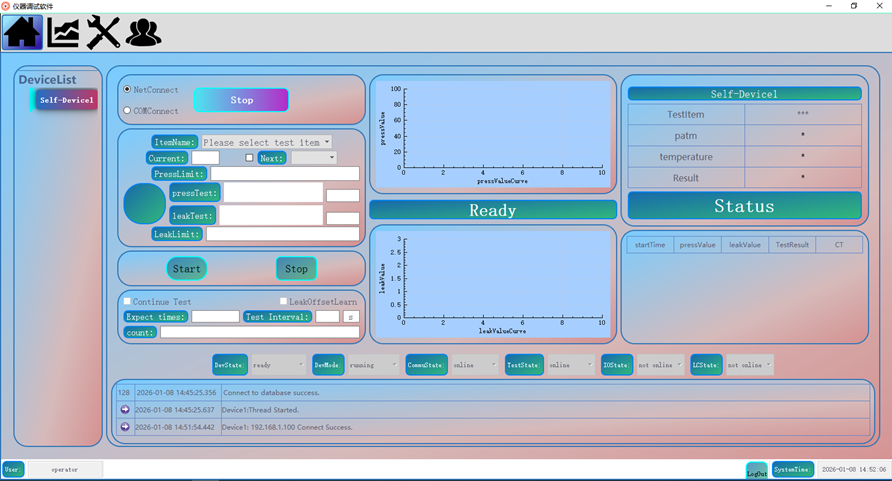

PC software interfaces:

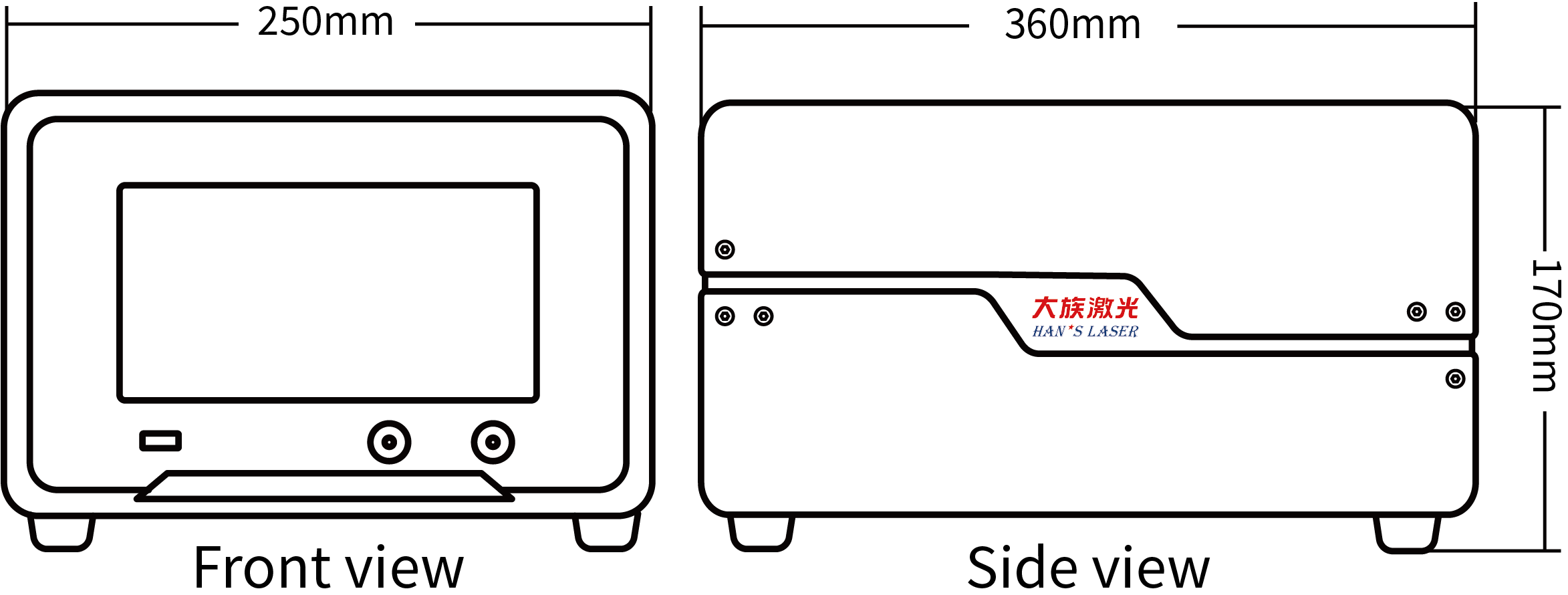

Specifications:
| Weight | Approx. 6.9kg |
| Ambient temperature | 0-50℃ |
| Power supply | AC220V/50Hz |
| Test interface | Clean, dry air source that meets ISO8573-1 standard |
| Pneumatic control interface | 4~6Bar clean and dry air source |
