Advantages:
1. Integrated valve path design, reducing leak points & improving detection accuracy.
2. Sensitive testing, resolution up to 0.1Pa.
3. Compact size, easy to install.
4. Unique pressure algorithm, stable detection.
5. Mechanical or electronic proportional pressure regulator can be used externally to achieve testing under various pressure conditions.
Features:
1. 100 sets of parameter settings available, meeting various testing conditions and requirements.
2. Ethernet connection, router distribution, allow for Industrial integration.
3. Equipped with PC software, simple & clear interfaces, easy to use.
4. The PC software supports data output, with the results saved in CSV format.
5. Can be used for direct test, indirect test, leak rate test, blockage test, etc.
Technical parameters:
1. Use differential pressure leak detection mode: pos/neg pressure detection available.
2. Pressure measuring range: vacuum to 10Bar.
3. Six optional units for leakage value: Pa, Pa/s, ml/min, ml/h, ml/s, sccm; other units can be developed based on actual needs.
4. With environmental drift correction, can achieve fast measurement.
5. Ethernet & RS232 ports.
6. Support 100 sets of program parameter settings.
7. Standardly configured with Modbus protocol for secondary development.
Range parameters:
PC software interfaces:
Specifications:
1. Integrated valve path design, reducing leak points & improving detection accuracy.
2. Sensitive testing, resolution up to 0.1Pa.
3. Compact size, easy to install.
4. Unique pressure algorithm, stable detection.
5. Mechanical or electronic proportional pressure regulator can be used externally to achieve testing under various pressure conditions.
Features:
1. 100 sets of parameter settings available, meeting various testing conditions and requirements.
2. Ethernet connection, router distribution, allow for Industrial integration.
3. Equipped with PC software, simple & clear interfaces, easy to use.
4. The PC software supports data output, with the results saved in CSV format.
5. Can be used for direct test, indirect test, leak rate test, blockage test, etc.
Technical parameters:
1. Use differential pressure leak detection mode: pos/neg pressure detection available.
2. Pressure measuring range: vacuum to 10Bar.
3. Six optional units for leakage value: Pa, Pa/s, ml/min, ml/h, ml/s, sccm; other units can be developed based on actual needs.
4. With environmental drift correction, can achieve fast measurement.
5. Ethernet & RS232 ports.
6. Support 100 sets of program parameter settings.
7. Standardly configured with Modbus protocol for secondary development.
Range parameters:
| Test air pressure range | Default -1~10Bar (Optional -1~1Bar, -1~5Bar) |
| Test air pressure resolution | 0.15%FS |
| Test air pressure accuracy | Read±1.5%±7.5hPa |
| Leakage value range | -2000~2000Pa |
| Leakage value resolution | 0.1Pa |
| Leakage value accuracy | Read±2.5%±1Pa |

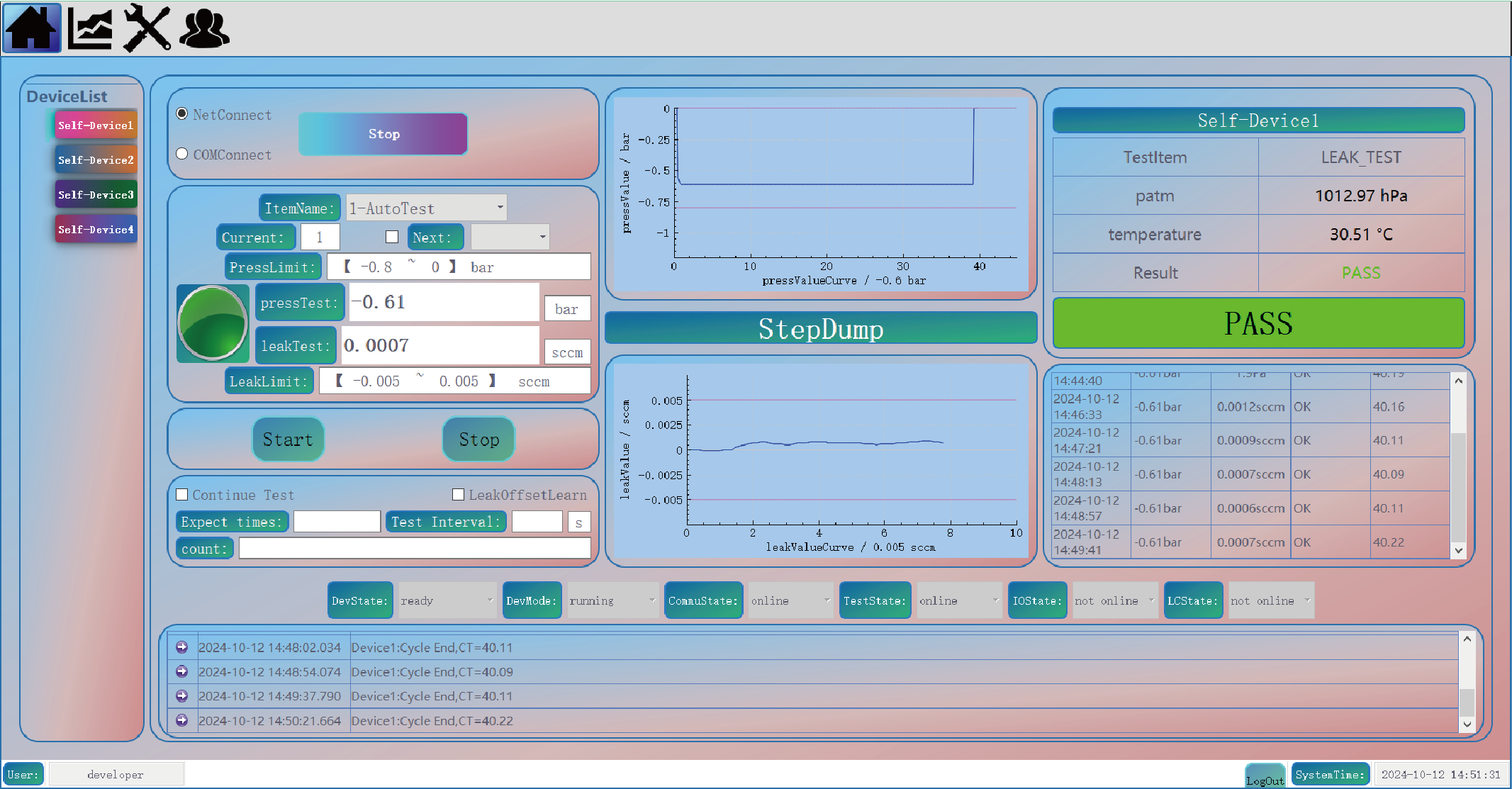

PC software interfaces:
Specifications:
| Weight | Approx. 3kg |
| Ambient temperature | 0-50℃ |
| Power supply | DC24V/2A |
| Test pressure interface | Clean, dry air source that meets ISO8573-1 standard, require an external pressure regulator |
| Pilot pressure interface | 4~6Bar clean and dry air source |
