Advantages:
1. Integrated valve path design, reducing leak points & improving detection accuracy.
2. Sensitive testing, resolution up to 0.1Pa.
3. Compact size, easy to install.
4. Unique pressure algorithm, stable detection.
5. Equipped with an electronic proportional pressure regulator, can realize automatic adjustment of single test pressure or double test pressure (high & low pressure, positive & negative pressure).
Features:
1. 100 sets of parameter settings available, meeting various testing conditions.
2. Equipped with PC software & a 7" touch screen, simple & clear interfaces, easy to use.
3. Equipped with IO interfaces, can achieve external point control, such as solenoid valves, and achieve automatic control programming of IO points.
4. The PC software supports data output, with the results saved in CSV format.
5. Can be used for direct test, indirect test, leak rate test, blockage test, etc.
Technical parameters:
1. Use differential pressure leak detection mode, can adjust test pressure intelligently.
2. Test pressure depends on the measuring range.
3. Six optional units for leakage value: Pa, Pa/s, ml/min, ml/h, ml/s, sccm; other units can be developed based on actual needs.
4. With environmental drift correction, can achieve fast measurement.
5. Ethernet & RS232 ports.
6. Support 100 sets of program parameter settings.
7. Equipped with a 7" color touch screen & IO interface, easy to operate, can independently control peripheral components.
Range parameters:
Note: Other test pressure ranges can be matched according to actual needs.
PC software interfaces:
Specifications:
1. Integrated valve path design, reducing leak points & improving detection accuracy.
2. Sensitive testing, resolution up to 0.1Pa.
3. Compact size, easy to install.
4. Unique pressure algorithm, stable detection.
5. Equipped with an electronic proportional pressure regulator, can realize automatic adjustment of single test pressure or double test pressure (high & low pressure, positive & negative pressure).
Features:
1. 100 sets of parameter settings available, meeting various testing conditions.
2. Equipped with PC software & a 7" touch screen, simple & clear interfaces, easy to use.
3. Equipped with IO interfaces, can achieve external point control, such as solenoid valves, and achieve automatic control programming of IO points.
4. The PC software supports data output, with the results saved in CSV format.
5. Can be used for direct test, indirect test, leak rate test, blockage test, etc.
Technical parameters:
1. Use differential pressure leak detection mode, can adjust test pressure intelligently.
2. Test pressure depends on the measuring range.
3. Six optional units for leakage value: Pa, Pa/s, ml/min, ml/h, ml/s, sccm; other units can be developed based on actual needs.
4. With environmental drift correction, can achieve fast measurement.
5. Ethernet & RS232 ports.
6. Support 100 sets of program parameter settings.
7. Equipped with a 7" color touch screen & IO interface, easy to operate, can independently control peripheral components.
Range parameters:
| Test air pressure range | Default single pressure |
0.05 ~ 5Bar |
| Optional high/ low pressure |
0.05 ~ 9Bar 0.05 ~ 5Bar |
|
| Optional pos/ neg pressure |
0.05 ~ 5Bar -0.02 ~ -0.8Bar |
|
| Test air pressure resolution | 0.15%FS | |
| Test air pressure accuracy | Read±1.5%±7.5hPa | |
| Leakage value range | -2000~2000Pa |
| Leakage value resolution | 0.1Pa |
| Leakage value accuracy | Read±2.5%±1Pa |

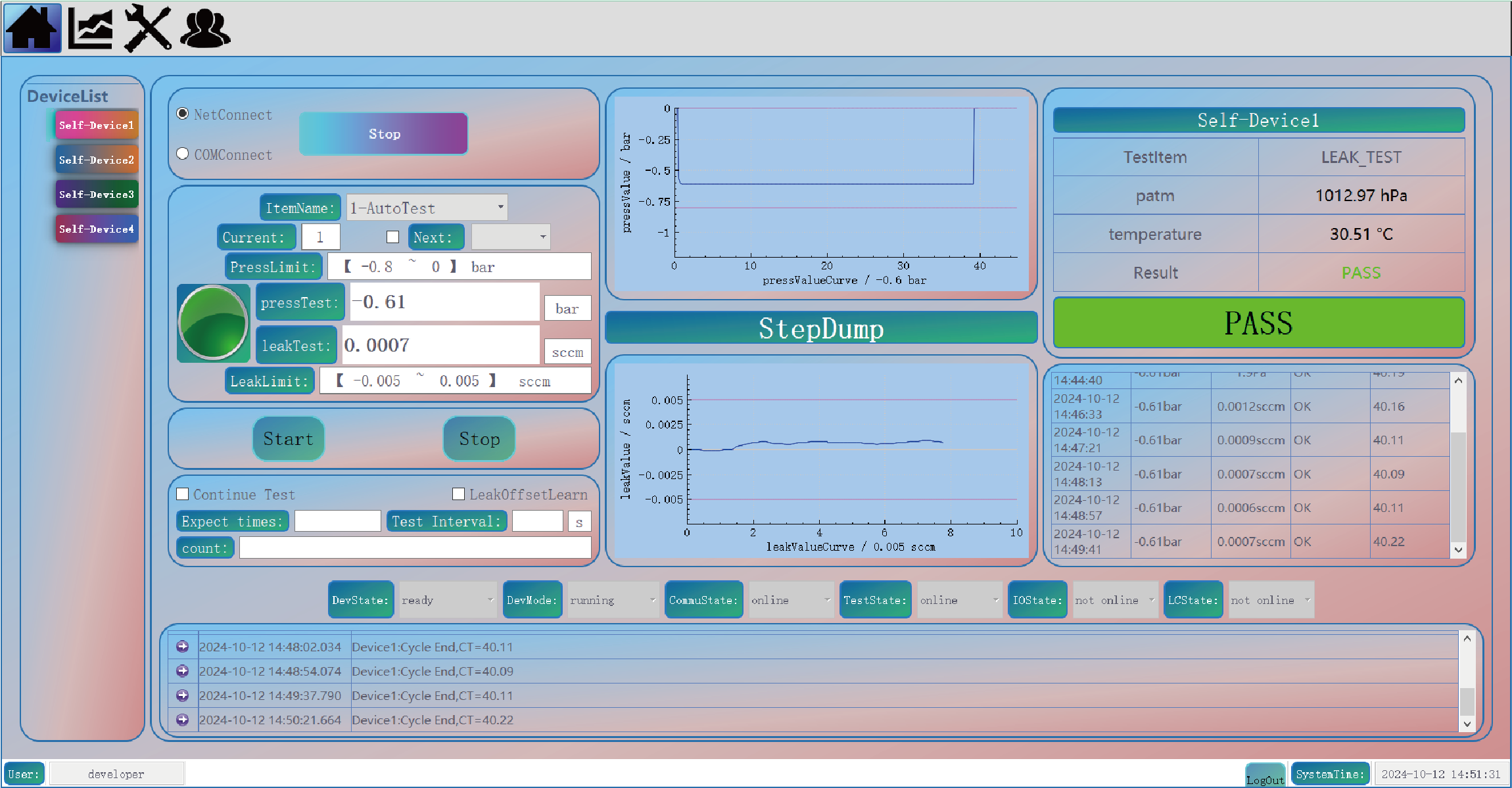

PC software interfaces:

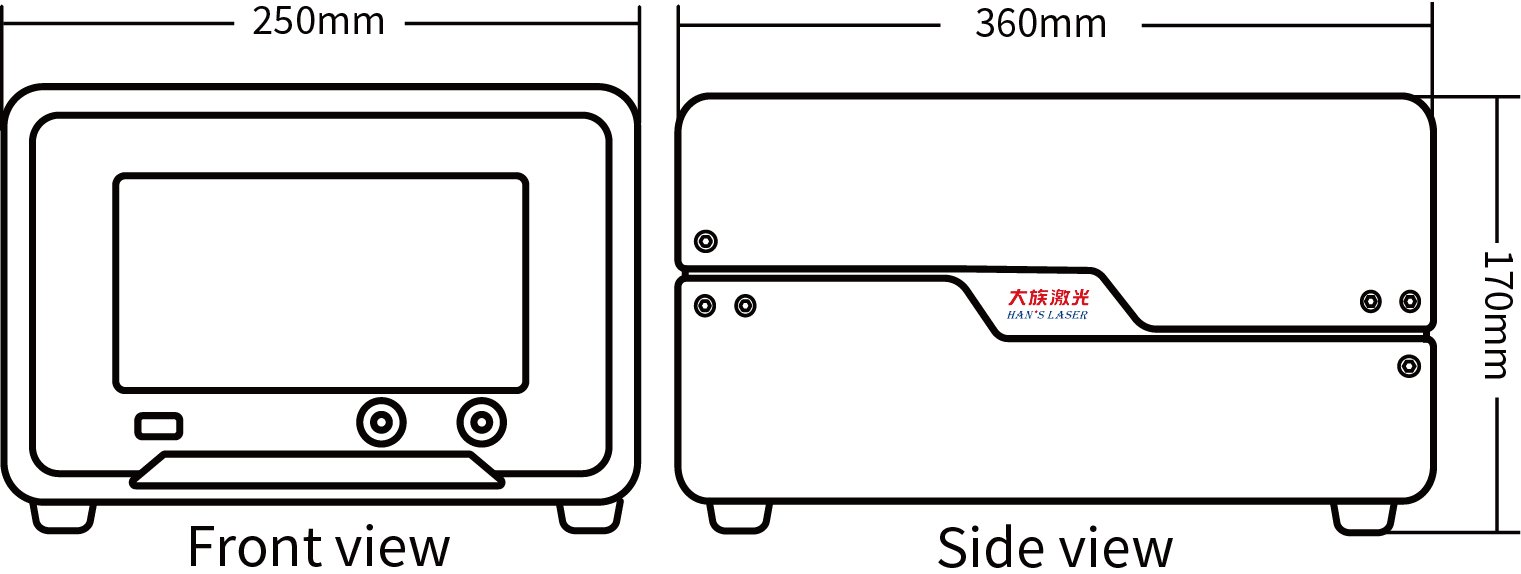

Specifications:
| Weight | Approx. 9kg |
| Ambient temperature | 0-50℃ |
| Power supply | DC24V/2A or AC220V/50Hz (choose one of the two) |
| High/low pressure, pos/neg pressure interface | Clean, dry air source that meets ISO8573-1 standard |
| Pilot pressure interface | 4~6Bar clean and dry air source |
