1. Open structure for easy disassembly and maintenanc;
2. Built-in grating or magnetic grating feedback with 0.1μm, 0.5μm, 1μm, 5μm resolution options;
3. Moving magnet flat linear motor.
Product Application
Suitable for semiconductors, precision machine tools, 3D printing machine, display panels, PCB equipment, industrial automation and other applications.

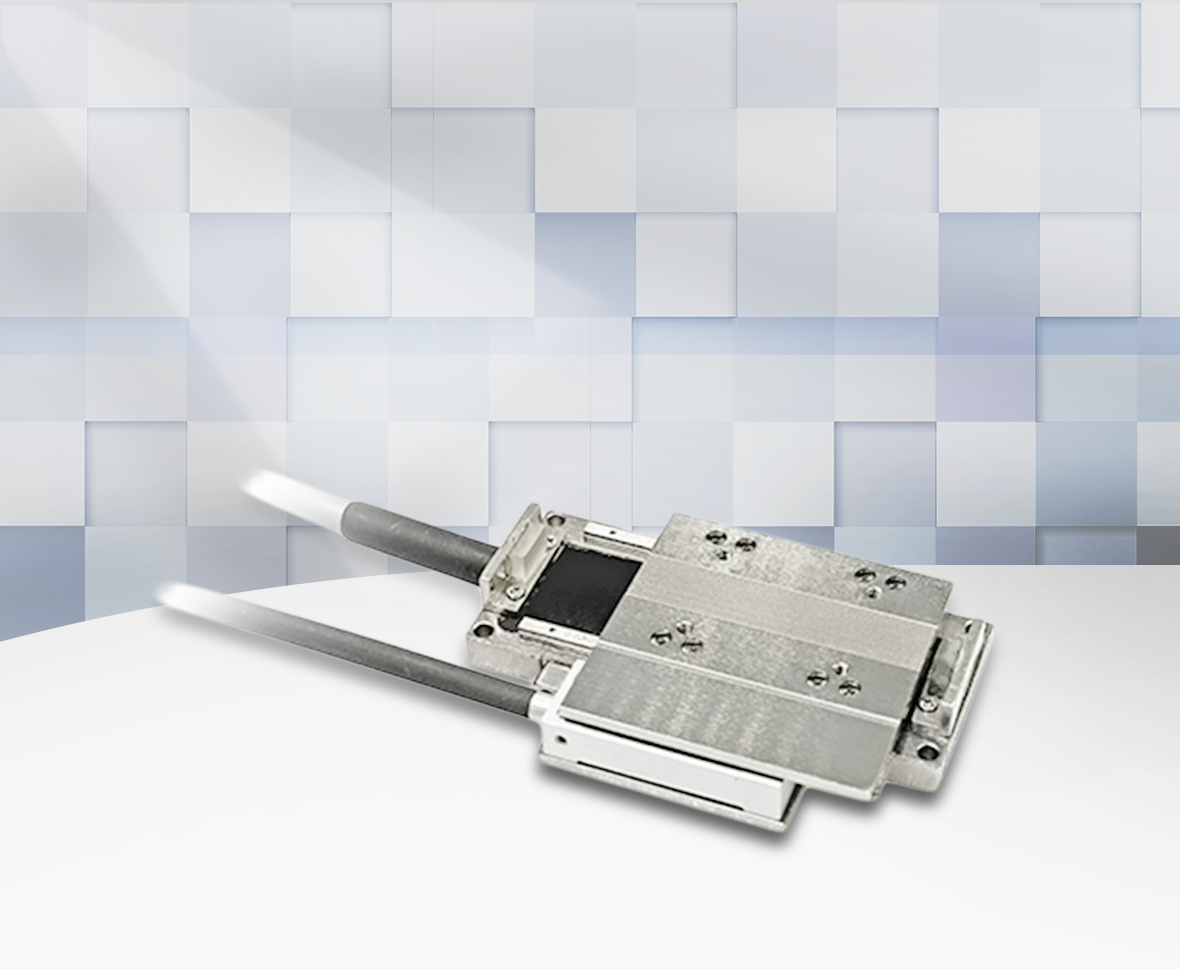

Miniature Stages（LMA38 Series )
Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer
Suitable for semiconductors, precision machine tools, 3D printing machine, display panels, PCB equipment, industrial automation and other applications.
Miniature Stages（LMA38 Series )
| Motor Parameters | ||
| Unit | Data | |
| Continuous Force (Tmax） | N | 0.6 |
| Peak Force | N | 3 |
| Motor Constant | N√W | 0.5 |
| Max.Continuous Power Dissipation | W | 1.42 |
| Continuous Current (Tmax） | Arms | 0.15 |
| Peak Current (1S) | Arms | 0.8 |
| Force Constant (25℃，±5%） | N/Arms | 4 |
| Back EMF Constant (25℃，±5%） | Vrms/m/s | 1.3 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 30 |
| Inductance(25℃，±20%）P-P | μm | 0.25 |
| Max Coil Temperature | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 24 |
| Magnetic Attraction | N | 11 |
| Stage Parameters | ||
| Unit | Data | |
| Max. Load | kg | 1 |
| Effective Stroke | mm | 10 |
| Resolution | μm | 0.1 |
| Max.Speed（1） | mm/s | 200 |
| Repeat accuracy | μm | ±0.5 |
| Weight | kg | 0.1 |
| Working environment temperature and humidity |
0-40℃、20-80%RH | |
Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer
