Features：
Iron core technology、Low cogging effect、Water cooling or natural cooling structure、Standardization, modularization, high reliability、Multi-series maximum specification peak force 20000N、Optional hall sensor、Customizable for optional.

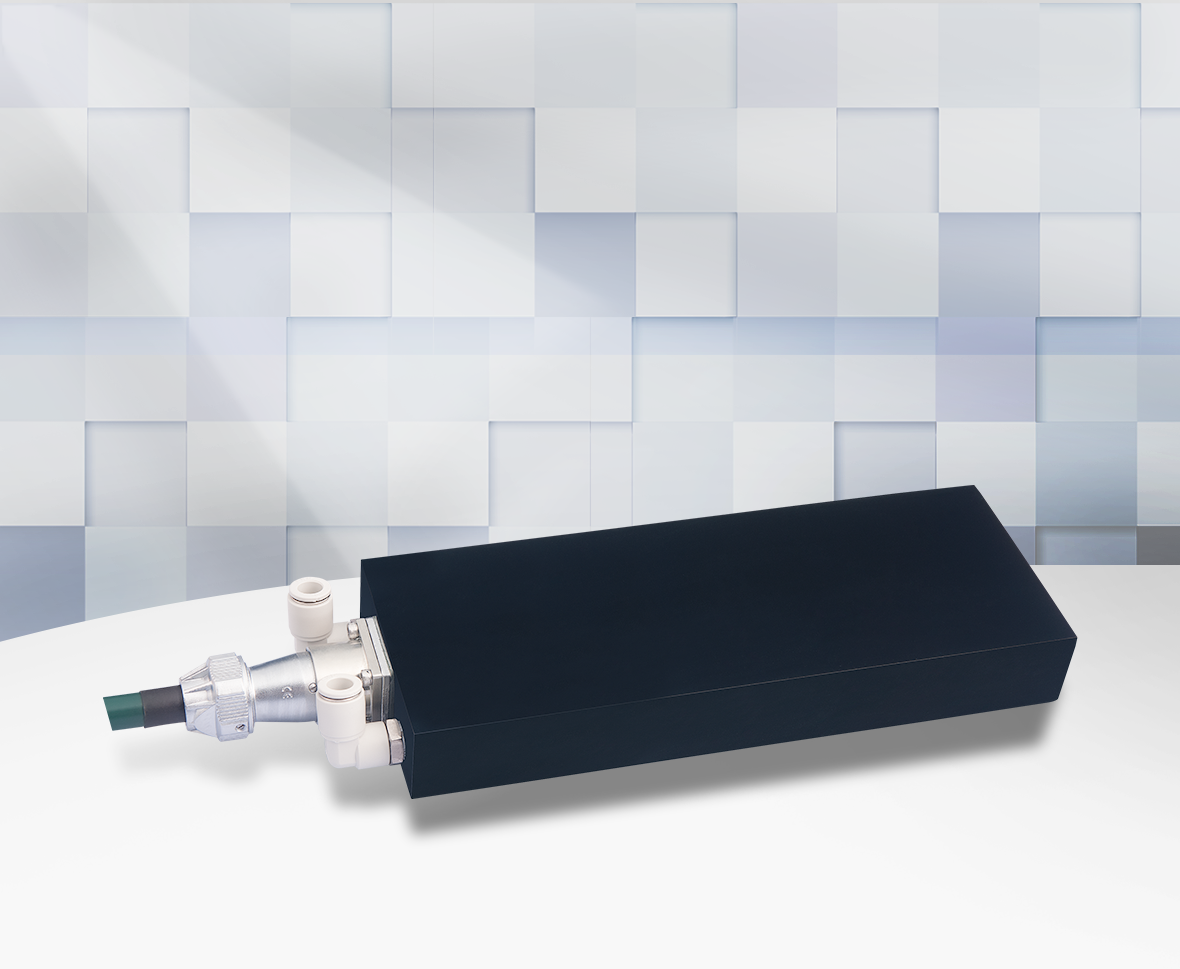

LSMF6 Linear Motor (Iron core/Natural cooling)-50
| Mover Spec.：LSMF610xxxx-x-H-NC-N-C00.5 | 701A-S | 701B-S | 702A-S | 702B-S | 703A-S | 703A-P | 704-S | 704A-P | ||
| PERFORMANCE PARAMETERS | Symbol | Unit | Series | Series | Series | Series | Series | Parallel | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 109 | 109 | 226 | 212 | 468 | 468 | 361 | 362 |
| Peak Force | Fp | N | 259 | 259 | 532 | 500 | 1090 | 1090 | 830 | 834 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 15.6 | 16.1 | 23.6 | 23.4 | 34.5 | 35.6 | 25.4 | 30.2 |
| Max.Continuous Power Dissipation | Pc | W | 67 | 63 | 126 | 113 | 252 | 237 | 276 | 198 |
| Continuous Current (Tmax） | Ic | Arms | 6.0 | 2.8 | 6.0 | 4.5 | 6.0 | 12.0 | 3.7 | 8.0 |
| Peak Current (1S) | Ip | Arms | 18.0 | 8.4 | 18.0 | 13.5 | 18.0 | 36.0 | 11.1 | 24.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 18.3 | 38.7 | 37.5 | 47.1 | 78.0 | 39.0 | 97.5 | 45.3 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 6.1 | 12.9 | 12.5 | 15.7 | 26.0 | 13.0 | 32.5 | 15.1 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 0.9 | 3.9 | 1.7 | 2.7 | 3.4 | 0.8 | 9.8 | 1.5 |
| Inductance(25℃，±20%）P-P | L | mH | 11.8 | 53 | 23.6 | 37.4 | 47.2 | 11.8 | 85.0 | 18.2 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
| Magnetic Attraction | Fa | kN | 0.5 | 0.5 | 1.0 | 1.0 | 2.0 | 2.0 | 1.5 | 1.5 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 15.1 | 7.0 | 7.3 | 5.9 | 3.4 | 7.1 | 2.5 | 6.3 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 7.1 | 3.2 | 3.4 | 2.7 | 1.4 | 3.3 | 0.9 | 3.1 | |
| Vmax,0@Vbus=310Vdc | m/s | 20.5 | 9.7 | 10.0 | 7.9 | 4.8 | 9.6 | 3.8 | 8.3 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 26.6 | 12.4 | 12.9 | 10.5 | 6.1 | 12.7 | 4.9 | 11.3 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 12.5 | 5.8 | 6.1 | 5.0 | 2.8 | 6.1 | 2.2 | 5.7 | |
| Vmax,0@Vbus=537Vdc | m/s | 35.7 | 16.9 | 17.4 | 13.9 | 8.3 | 16.7 | 6.7 | 14.4 | |
| Mover Mass | Mp | Kg | 1.3 | 1.3 | 2.6 | 2.6 | 4.9 | 4.9 | 3.8 | 3.8 |
| Stator Mass within unit length | Ms | Kg/m | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
| Mover Dimension | ||||
| Mover Model | Mover Length | M | Mover mounting hole A |
K |
| LSMF610701A-S-H-NC-N-C00.5 | 101 | 1 | 4 | 22.5 |
| LSMF610702A-S-H-NC-N-C00.5 | 200 | 3 | 8 | 16 |
| LSMF610702B-S-H-NC-N-C00.5 | 200 | 3 | 12 | 16 |
| LSMF610703A-S-H-NC-N-C00.5 | 368 | 6 | 14 | 16 |
| LSMF610703A-P-H-NC-N-C00.5 | 368 | 6 | 14 | 16 |
| LSMF610704A-S-H-NC-N-C00.5 | 278 | 4 | 10 | 27 |
| LSMF610704A-P-H-NC-N-C00.5 | 278 | 4 | 10 | 27 |
| Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements; 2. Optional temperature sensor; |
||||
| Stator Dimension | |||
| Stator Model | Stator Length TL |
N | Stator mounting hole B |
| LSMF6201E | 168 | 3 | 8 |
| LSMF6202E | 252 | 5 | 12 |
| LSMF6203E | 420 | 9 | 20 |
| Suitable for any mover of this series | |||
