Features:
Coreless、Zero cogging force、Patent technology、Winding compact design、High thrust density、High continuous force and Peak force、Optional hall sensor.

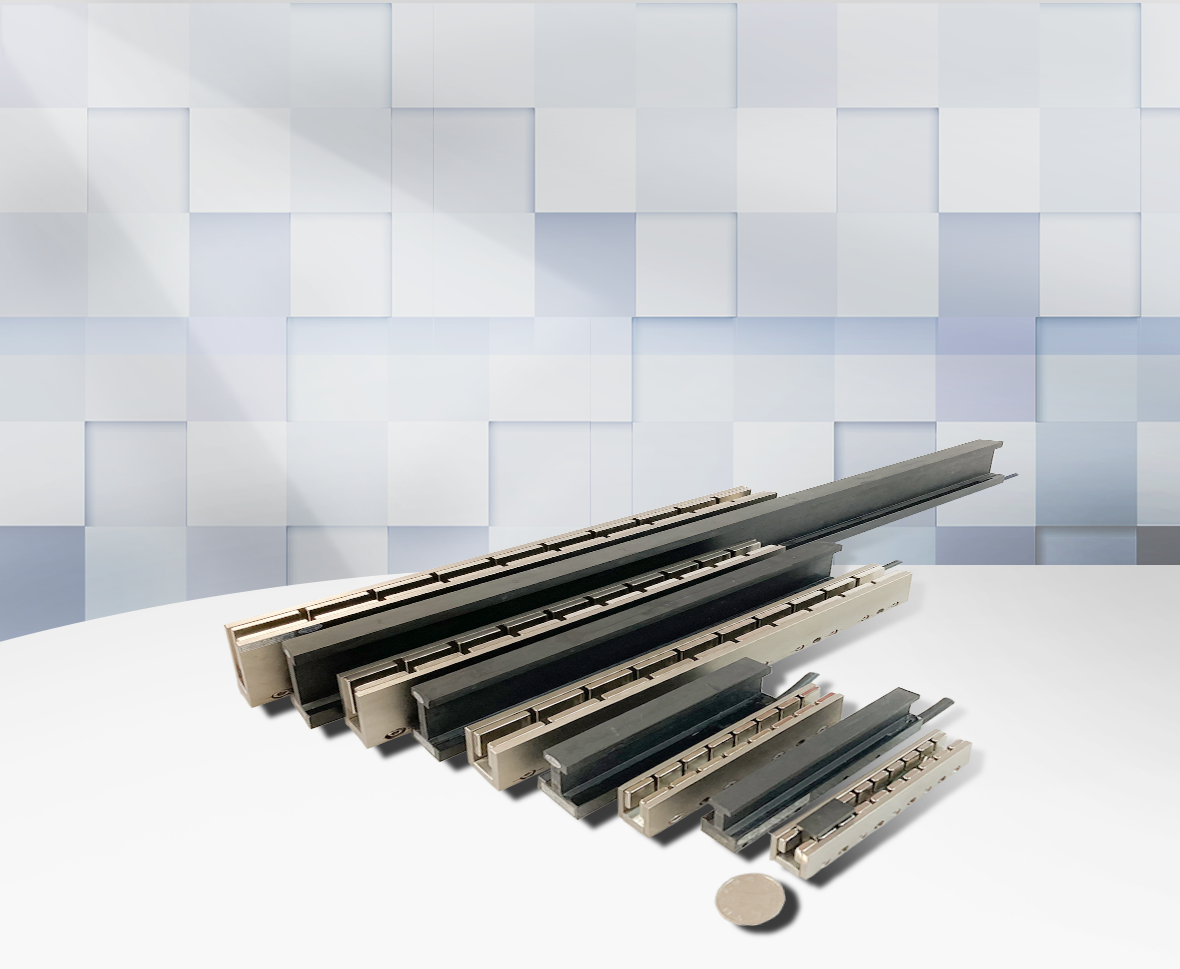

LSMU5 Linear Motor (Coreless/Natural cooling)
| Mover Spec.：LSMU510xxxx-x-H-NC-N-D00.5 | 101A-S | 201A-S | 201A-P | 301A-S | 301A-P | 402A-S | 402A-P | 108A-S | 501A-S | 501A-P | 601A-S | 601A-P | 801A-P | ||
| PERFORMANCE PARAMETERS | Symbol | Unit | Series | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 56 | 112 | 112 | 168 | 168 | 224 | 224 | 249 | 280 | 280 | 336 | 336 | 448 |
| Peak Force | Fp | N | 317 | 624 | 624 | 936 | 936 | 1248 | 1248 | 1387 | 1560 | 1560 | 1872 | 1872 | 2496 |
| Motor Constant | Km25 | N/Sqrt(W) | 10.2 | 14.4 | 14.4 | 17.7 | 17.8 | 20.5 | 20.4 | 21.6 | 22.9 | 22.9 | 24.9 | 25.2 | 28.8 |
| Max.Continuous Power Dissipation | Pc | W | 41.4 | 82.8 | 82.8 | 124.2 | 122.0 | 163.4 | 165.6 | 181.9 | 204.8 | 204.8 | 250.6 | 244.0 | 331.2 |
| Continuous Current (Tmax） | Ic | Arms | 2.3 | 2.3 | 4.6 | 2.3 | 4.6 | 2.3 | 4.6 | 2.3 | 2.3 | 4.6 | 2.3 | 4.6 | 4.6 |
| Peak Current (1S) | Ip | Arms | 13.0 | 13.0 | 26.0 | 13.0 | 26.0 | 13.0 | 26.0 | 9.2 | 13.0 | 26.0 | 13.0 | 26.0 | 26.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 24.4 | 48.7 | 24.4 | 73.0 | 36.5 | 96.0 | 48.0 | 108.0 | 120.0 | 60.0 | 144.0 | 72.0 | 97.6 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 8.1 | 16.2 | 8.1 | 24.3 | 12.2 | 32.0 | 16.0 | 36.0 | 40.0 | 20.0 | 48.0 | 24.0 | 32.4 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 3.8 | 7.6 | 1.9 | 11.4 | 2.8 | 15.0 | 3.8 | 16.7 | 18.8 | 4.7 | 23.0 | 5.6 | 7.6 |
| Inductance(25℃，±20%）P-P | L | mH | 3.6 | 7.0 | 1.8 | 9.5 | 2.6 | 14.0 | 3.5 | 17.2 | 17.5 | 4.4 | 21.0 | 5.3 | 7.2 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| Vmax,Fc@Vbus=310Vdc | Vmax,Fc | m/s | 14.6 | 6.9 | 14.6 | 4.4 | 9.5 | 3.1 | 7.0 | 2.7 | 2.3 | 5.5 | 1.8 | 4.4 | 3.1 |
| Vmax,Fp@Vbus=310Vdc | Vmax,Fp | m/s | 10.8 | 3.4 | 10.8 | 0.8 | 5.9 | 0.0 | 3.4 | 0.4 | 0.0 | 1.9 | 0.0 | 0.9 | 0.0 |
| Vmax,0@Vbus=310Vdc | Vmax,0 | m/s | 15.4 | 7.7 | 15.4 | 5.1 | 10.3 | 3.9 | 7.8 | 3.4 | 3.1 | 6.2 | 2.6 | 5.2 | 3.8 |
| Mover Mass | Mp | Kg | 0.4 | 0.7 | 0.7 | 1.0 | 1.0 | 1.3 | 1.3 | 1.3 | 1.7 | 1.7 | 2.0 | 2.0 | 2.4 |
| Stator Mass within unit length | Ms | Kg/m | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
| Mover Dimension | |||
| Mover Model | Mover Length | M | Mover mounting |
| LSMU510101A-S-H-NC-N-D00.5 | 61 | 1 | 3 |
| LSMU510201A-S-H-NC-N-D00.5 | 121 | 3 | 7 |
| LSMU510201A-P-H-NC-N-D00.5 | |||
| LSMU510301A-S-H-NC-N-D00.5 | 181 | 5 | 11 |
| LSMU510301A-P-H-NC-N-D00.5 | |||
| LSMU510402A-S-H-NC-N-D00.5 | 241 | 7 | 15 |
| LSMU510402A-P-H-NC-N-D00.5 | |||
| LSMU510501A-S-H-NC-N-D00.5 | 301 | 9 | 19 |
| LSMU510501A-P-H-NC-N-D00.5 | |||
| LSMU510601A-S-H-NC-N-D00.5 | 361 | 11 | 23 |
| LSMU510601A-P-H-NC-N-D00.5 | |||
| LSMU510801A-P-H-NC-N-D00.5 | 481 | 15 | 31 |
| Remarks: 1. Standard cable length is 0.5m (with aviation plug), maximum outer diameter of motor cable is 7mm, minimum bending radius is 35mm, the cable length and terminal can be customized if there are special requirements; 2. Optional temperature sensor; |
|||
| Stator Dimension | ||||
| Stator Model | Stator Length | N | Stator mounting hole B | Stator mounting hole C |
| LSMU5208A | 299.5 | 4 | 5 | 5 |
| LSMU5209A | 239.5 | 3 | 4 | 4 |
| LSMU5210A | 179.5 | 2 | 3 | 3 |
| LSMU5211A | 119.5 | 1 | 2 | 2 |
| Suitable for any mover of this series, and stator installation mode can be selected | ||||
Sample
