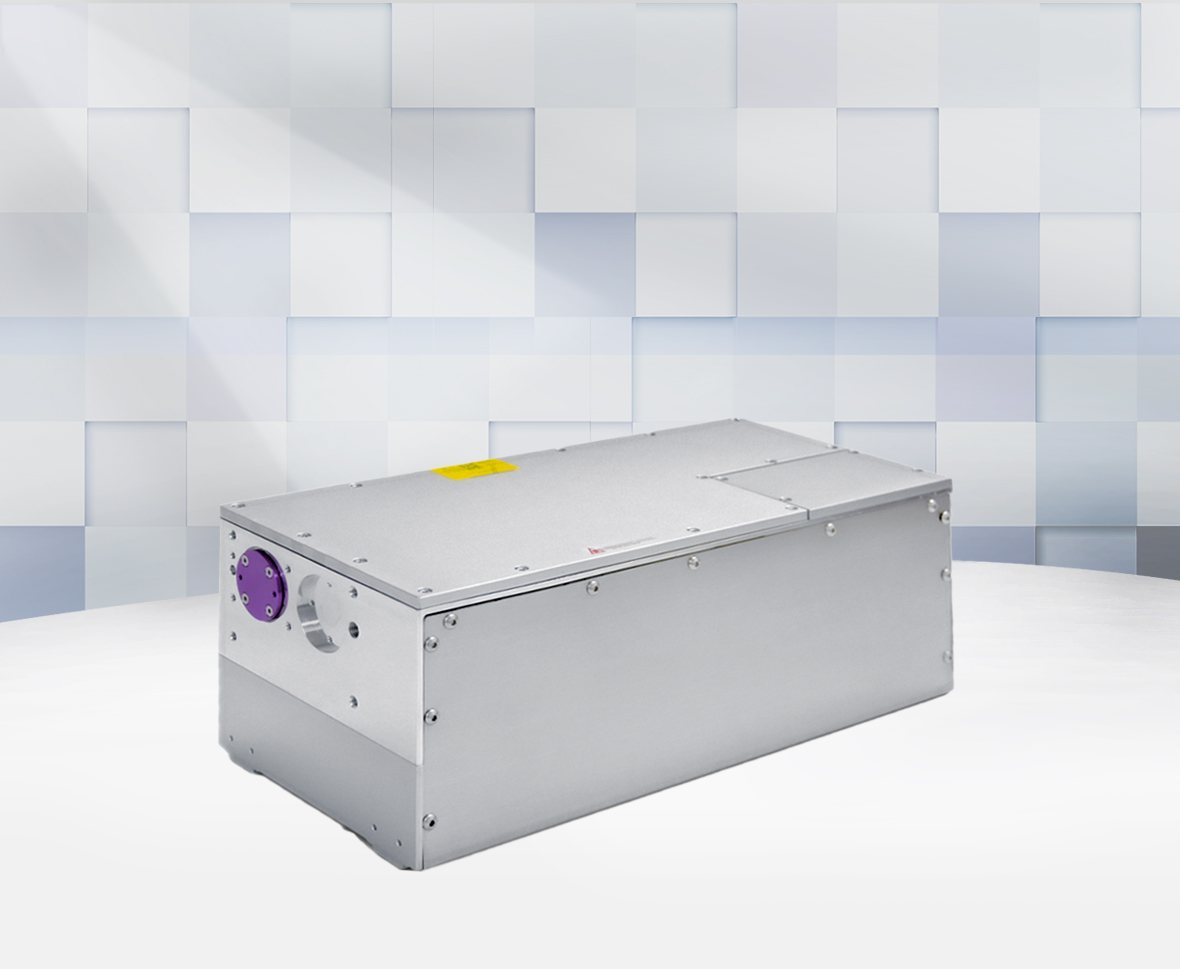

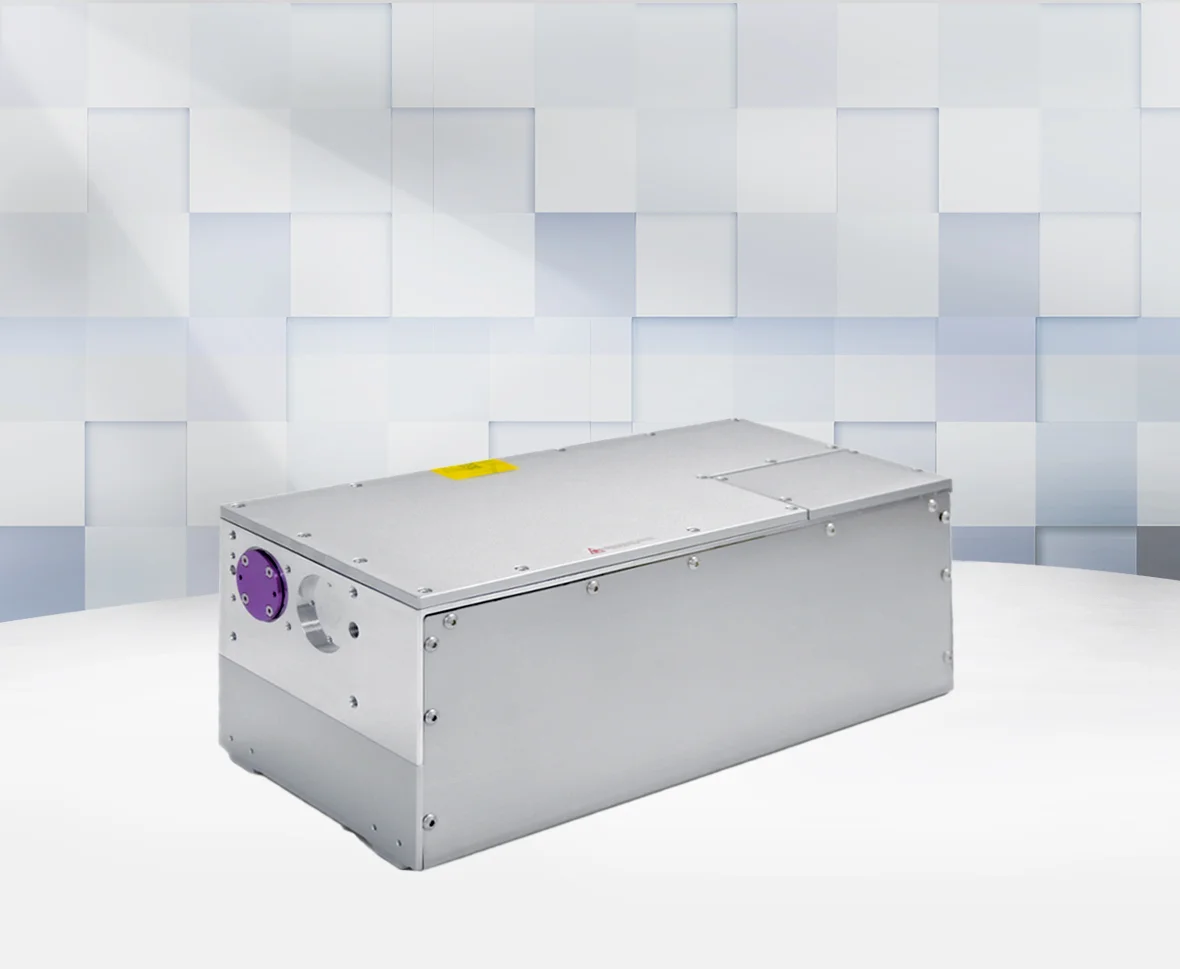

HANS#UV Nanosecond Laser
HANS#UV Nanosecond Laser

HANS#UV Nanosecond Laser

Brief Description
Adjustable repetition frequency, ranging from 20kHz to 200kHz
Integrated design of optical and control system
TEM00 output
Contact Us
As a new product with innovative design, it adopts proven intra-cavity frequency doubling technology and has been applied to various precision marking processes in batches. As UV laser breaks through the power limit and has unique super-high cost performance, its application is rapidly increasing and will have a breakthrough in the field of extreme manufacturing.

Applications
Marking of high-end electronic product LOGO
Marking of food, PVC pipes, pharmaceutical packaging & cable wire (HDPE, PO, PP, etc.)
PCB & EPC QR code marking
Metallic or nonmetallic coating removal
Marking of air switch & low-voltage electrical appliances (flame-resistant materials)

Model HANS #1 HANS #2
Output parameters
Wavelength 355nm
Power 3W@ 30kHz, typical value 5W@ 30kHz, typical value
Repetition frequency 20-200 kHz
Pulse width 25ns@30kHz
Pulse stability <3% rms @ 30 kHz, typical value
Beam parameters
Spatial pattern TEM00
M2 <1.2
Polarization ratio  100:1 (horizontal)
Spot diameter 1.1 mm ±0.1mm
Divergence full angle  <2 mrad
Spot symmetry   >90%
Beam pointing <± 25 µrad/°C
Working conditions/requirements
Power supply 12VDC±1V; ≥200W switching power supply
Ready time Standby to ready<10 minutes; Cold start to ready<30 minutes
Temperature range Working: 18~35°C; Non-working: 0~50°C
Humidity 10—90%, no condensation
Cooling requirements Water cooling, chiller accuracy ±0.1°C & flow rate≥4L/min
Overall heat consumption <200 W
Size
Size of laser head (L × W × H) 370 mm×165mm × 136 mm
Weight of laser head 10 kg

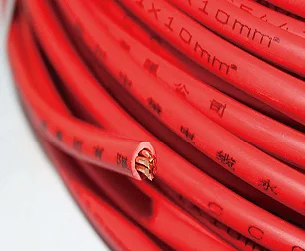

Sample
sample
sample
sample
sample
