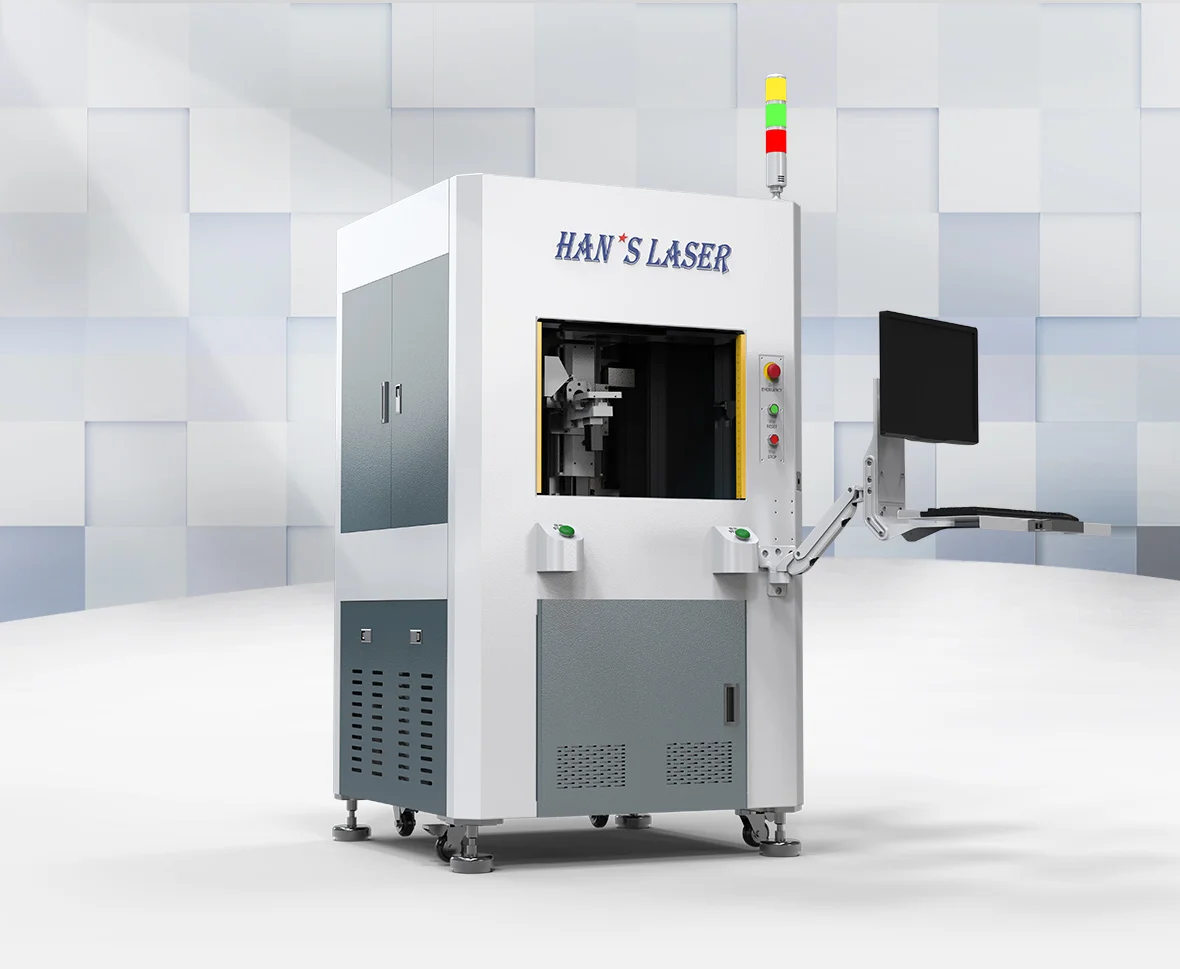

Mobile phone antenna decolorization five axis
Mobile phone antenna decolorization five axis
Brief Description
Conduct different color treatment at the mobile phone antenna
Contact Us
Overall performance of equipment
1. Equipment size: 1000 * 1000 * 1750mm (excluding tricolor lamp)
2. Number of stations: single station
3. Product transfer mechanism: five axis motion module
4. Product positioning mode: coaxial CCD

Equipment use requirements
1Voltage: 220VAC 50Hz,
2Air pressure: 0.5-0.7mpa

Environmental requirements for equipment use
1 The ambient temperature is required to be between 15-30 ℃, and air conditioning is required.
2 The humidity requirement is 40% - 80%. If there is no condensation, a dehumidifier should be installed.
3 Power supply grid requirements: 220V; 50Hz 。
4 Fluctuation of power supply network: ± 5%, and the power grid ground wire meets international requirements. Electronic automatic voltage stabilizing and current stabilizing devices shall be installed in areas where the voltage amplitude is more than 5%.
5 There shall be no strong electromagnetic signal interference near the installed equipment. Avoid radio transmitting stations (or relay stations) around the installation site.
6 Foundation amplitude: less than 50um; Vibration acceleration: less than 0.05g. Avoid a large number of stamping and other machine tools and equipment nearby. The equipment space shall be smoke-free and dust-free, and the working environment with serious dust such as metal polishing and grinding shall be avoided.
7 Air pressure: 5-8KG / cm2.
8 Some environments should be equipped with anti-static floor, strengthen shielding, etc.
9 There are strict requirements for the water quality of working cooling circulating water, which requires the use of purified water, deionized water or distilled water. Tap water, mineral water and other water containing high metal ions or other minerals are not allowed.
