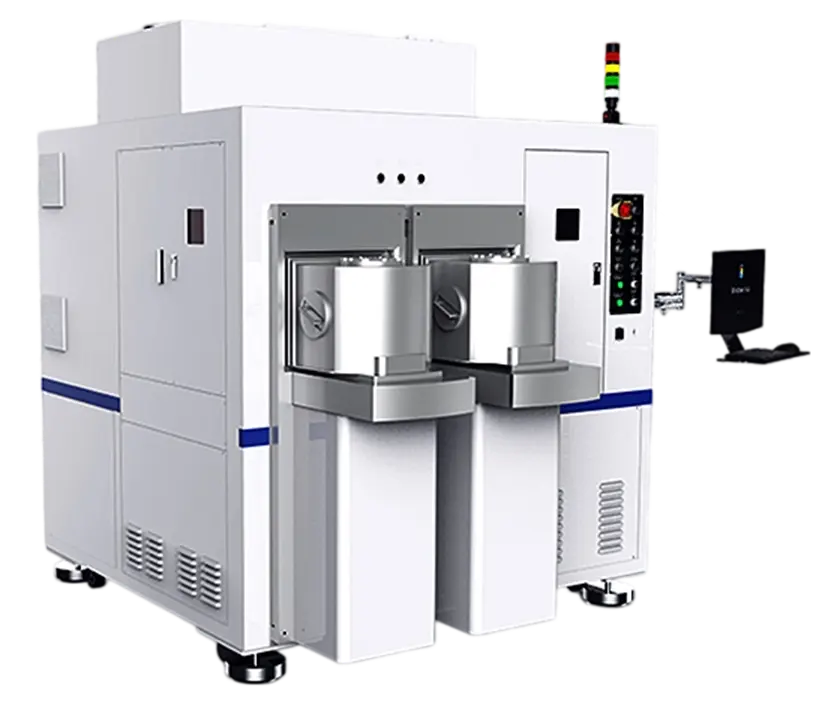

1. For semiconductor wafer DIE marking, compatible with 8/12-inch wafers, Si, EMC, solder mask materials; supports obverse/reverse marking, bare die & film-through marking processes
2. Fully automatic operation with dual-arm manipulator for high productivity
3. Optional Load Port / SMIF loading module
4. Built-in power inspection system to guarantee consistent marking quality
5. SECS-GEM communication protocol supported
For DIE marking of 12-inch and smaller wafers including Si, GaAs, SiC, EMC and solder mask materials.
