HDZ-MDP200

Substrate and Chip Packaging Laser Processing Series

HDZ-MDP200

Machine Features

1 High-speed visual scanning system; NG identification and positioning recognizable

2.Double platform feeding system design, effectively improved processing efficiency

3.Supporting singlesided and doublesided marking

4.Communication with customers’ MES data to obtain and return information

Applications

Applicable to marking of NG units or gold spots on PCB boards

Technical Data Sheet

Machines model

HDZ-MDP200

Laser wavelength

Green laser (532 nm)

Processing product dimension

50mm*40mm-300mm*120mm

Final processing repeated positioning precision

±0.05mm

Support file format

dxf，plt

Power supply

AC/220V, 50/60Hz

Cooling mode

Air cooling / Water cooling

Air supply

0.6-0.8MPa

Overall dimensions

1850mm*1960mm*1990mm

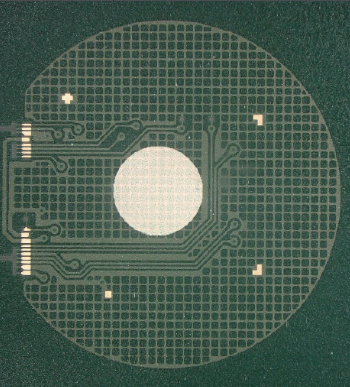

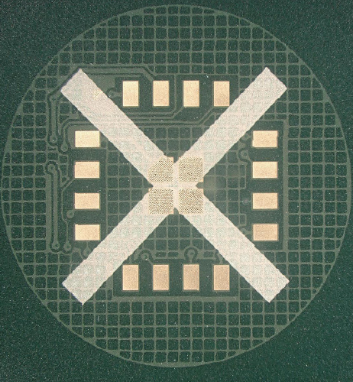

Laser Marking Effects
