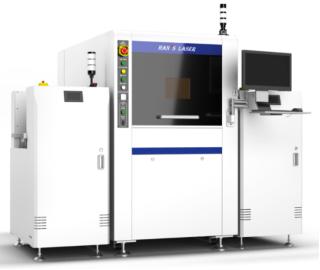

PCBA Laser Marking Machine

Machine Features

It is suitable for marking traceability information such as barcode, QR code, and characters on the hard copper plate layer of PCBs in the fields of mobile phones, wearable devices, and automotive electronics.

Applications

Technical Data Sheet

Equipment Name	PCB Online Laser Marking Equipment	PCB Built-in Flip-over Laser Marking Equipment	PCB Double-sided Laser Marking Equipment
Equipment Model	HDZ-PCB100	HDZ-PCB100F	HDZ-PCB100D
Laser Type	Ultraviolet、Green、Infrared、CO2
Marking Range	510mm*460mm
Substrate Size	50mm50mm-510mm460mm
Processing Method	Single-Faced	Double-Faced(built-in flap)	Double-Faced(double head)
Positioning System	Visual Camera Positioning
Final Processing Positioning Accuracy	±0.15mm
Orbital Altitude	900mm±20mm
Cooling Method	Air-Cooling/Water-Cooling
Boundary Dimensions	100016001760mm	100016001760mm	100018501760mm
