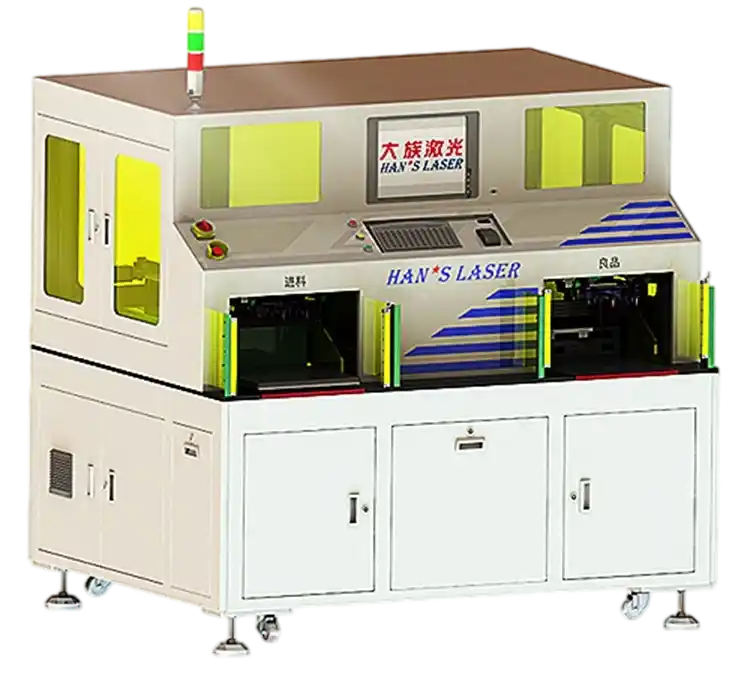

PCB QR Code Grading Laser Equipment CO2-PCBA400-PJ

CO2-PCBA400-PJ

Machine Features

1. Dedicated QR code grading equipment with automatic loading and unloading

2. Optional conveying modes: rail conveying (A reference rail, B width-adjustable rail) or belt conveying

3. Built-in high-performance barcode verifier, visual positioning & code reading system, X-Y motion stage

4. Barcode verifiers of various brands available as optional accessories

5. Offline barcode verification compliant with ISO/IEC standards

Applications

Applied to QR code grading for PCBs

Technical Data Sheet

Machine Model	PCB QR Code Grading Laser Equipment CO2-PCBA400-PJ
Applicable PCB Size Range	Length Range: 50mm—400mm Width Range: 50mm—400mm Thickness Range: 0.8mm—4mm
Axis Movement Speed	100-300mm/s
Loading Height	900mm
Adjustable Range	±30mm
Control Mode	PC
Overall Dimensions (L × W × H)	Front-Back: 1800mm × Left-Right: 1600mm × Height: 1500mm (excluding tri-color light)
Worktable Power Requirements	AC 220V 50Hz
Pneumatic Supply Requirements	0.4~0.8Mpa Clean Dry Air
Air Inlet	8mm
Approx. Total System Power	Approx. 2KW
Approx. Total System Weight	0.8T
