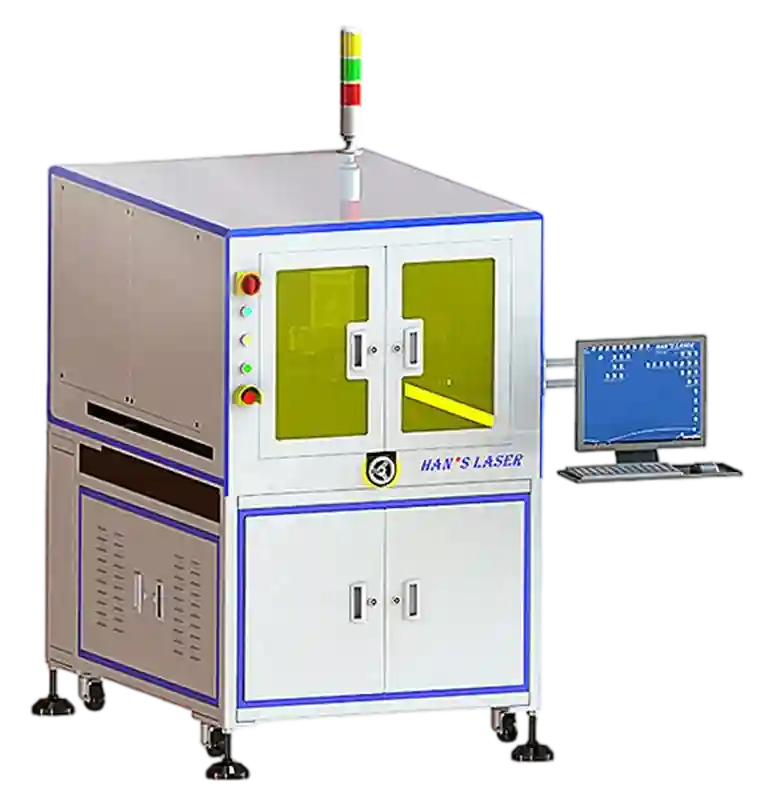

PCB Laser Desmear Equipment

CO2-D30-70AC

Machine Features

1. Height adjustment module automatically adjusts position with distance sensor

2. Coaxial CCD inspection path and laser beam path to ensure precise degumming

3. External fume purifier exhausts smoke via ventilation duct

4. Automatic and manual versions optional upon demand

Applications

Applied to PCB desmear processes.

Technical Data Sheet

Machine Model	PCB Laser Desmear Equipment CO2-D30-70AC
Applicable PCB Size Range	Length Range: 20mm—700mm Width Range: 20mm—600mm Thickness Range: 0.8mm—5mm
Axis Travel Speed	100-400mm/s(Automatic Model)
Production Line Docking Height	900mm
Adjustable Range	±30mm
Control Mode	PC
X-Y Table Travel	200×200mm
Overall Dimension (L×W×H)	Front-Back: 1300mm × Left-Right: 1000mm × Height: 1500mm (excluding tri-color light)
Worktable Power Requirement	AC 220V 50Hz
Pneumatic Supply Requirement	0.4~0.8Mpa Clean dry air
Air Inlet	8mm；
Approx. Total System Power	Approx. 3KW
Approx. Total System Weight	0.5T
