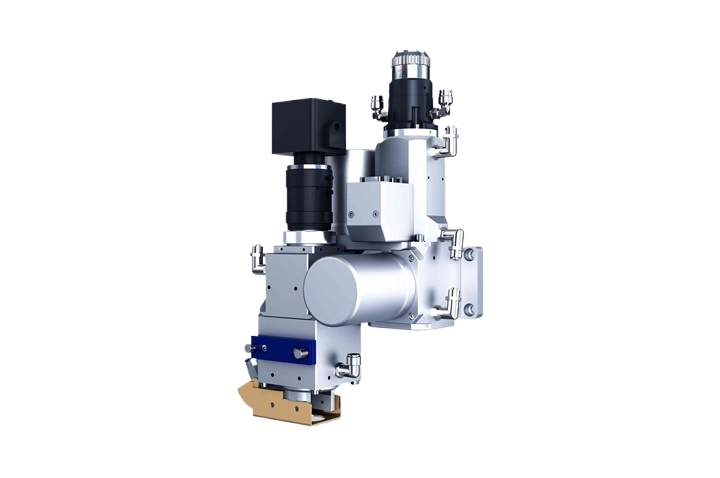

Oscillating Welding Head

FW208

Machine Features

1. Unique advantages in non-ferrous metal welding, greatly improving the welding quality of aluminum alloy, copper and other materials, with porosity reduced to 1%.

2. Diversified laser beam options. Multiple oscillation modes support beam scanning in shapes including circle (O), figure-eight (8/∞), straight line (—). Adopting a fully enclosed structural design, it prevents component contamination and extends the service life of the welding head.

3. Modular overall structure for easy maintenance and upkeep.

Applications

Widely applied in consumer electronics, power batteries, automobile manufacturing and other industries.

Technical Data Sheet

Machine Model	Oscillating Welding Head FW208
Laser Power	≤3KW	≤6KW
Wavelength	1070+10nm	1070+10nm
Collimation Focal Length	75mm/100mm	100mm/125mm
Focus Focal Length	200/250/300mm	200/250/300mm
Cooling Water Pressure	≤0.5Mpa	≤0.5Mpa
Cooling Water Flow Rate	≥2L/min	≥2L/min
Cooling Water Temperature	30°C	30°C
Recommended Air Curtain Pressure	0.3~0.5Mpa	0.3~0.5Mpa
Operating Temperature	+15°C~+70°C	+15°C~+70°C
Storage Temperature	Ambient Temperature	Ambient Temperature
Operating Humidity	40%~85%	40%~85%
Effective Clear Aperture	26mm	34mm
Total Weight	≤3.5Kg	≤5Kg
Optional Modules	Coaxial blowing, side blowing, air curtain, red light positioning, blue light lamp, camera, display, etc.
