Dual-Station Constant Temperature Solder Ring Welding System

Machine Features

1. Time-saving dual-station loading/unloading

2. Constant temperature welding (temperature controllable)

3. Contact-free tin melting, low thermal impact

4. Synchronized tin‑ring loading & welding, accurate and efficient

5.High electro-optical conversion efficiency, cost-saving

6.Easy and convenient maintenance


Applications

Welding for 3C electronics, home appliances, and automotive electronics industry, especially for PCBAFPCA plug-ins.

Brief Description

The machine adopts semiconductor laser and is highly integrated with the industrial control system in the workbench cabinet, with a solder ring device, a constant temperature welding head and a double gantry system equipped. The machine performs highly-efficient automatic welding in a wide range of welding scenarios including welding of PCBA board plug-ins by enabling simultaneous loading, unloading, automatic positioning and welding.
Technical Data Sheet

Soldering System

Welding Method

constanttemperature soldering with solder paste

Temperature Range

50-400℃

Welding Temperature Accuracy

±10℃

Welding Yield

Above 98%

Motion

Repeated Positioning Accuracy

±0.02mm

Welding Range

150mm*300mm

Positioning CCD

5 Mpixels

Structure

Dimensions

1200mm*1350mm*2000mm

Total Weight

900KG

Supply Voltage, Electricity Demand

AC220V,30A,50Hz

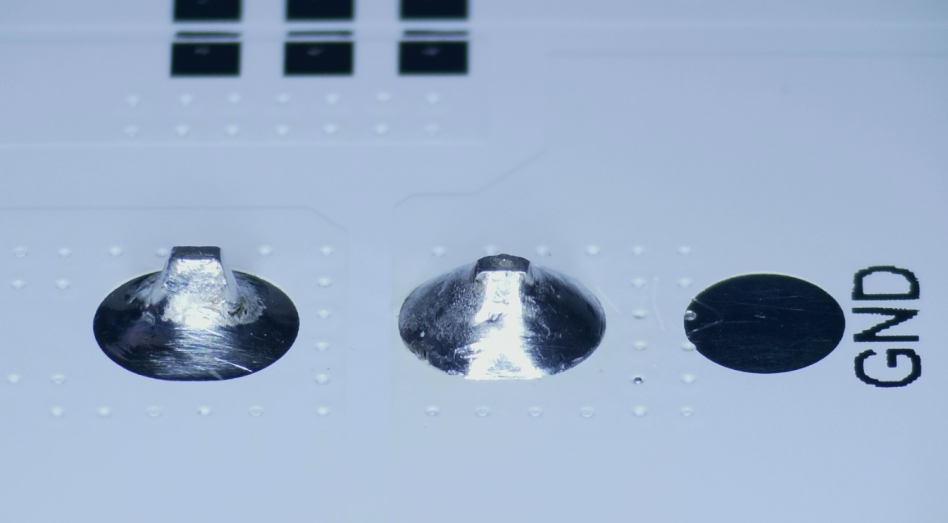

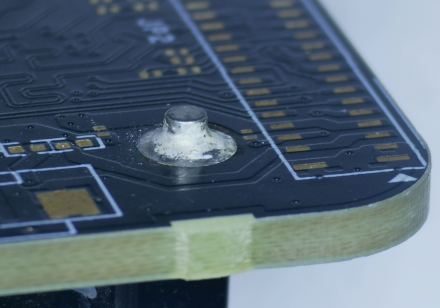

Laser Welding Effects
