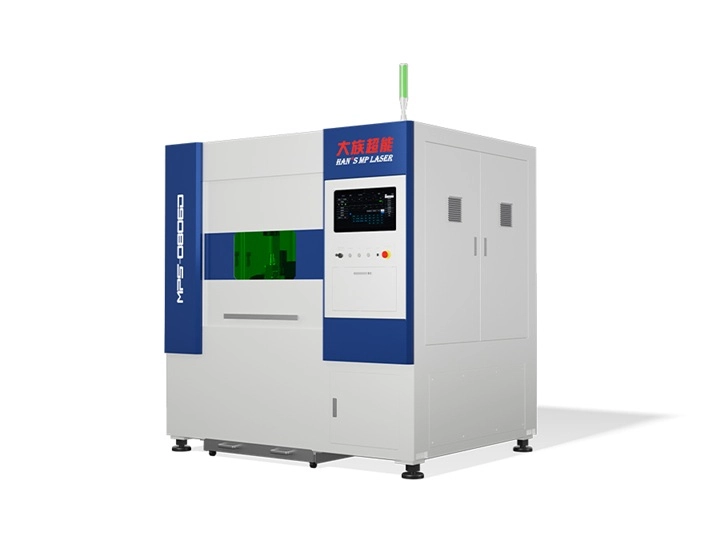

High-Precision Fiber Laser Cutting Machine

MPS-0806D

Machine Features

1. Stable marble platform base, high-strength integrally cast aluminum beam for long-term stability

2. High-quality servo motors, high-precision dual-drive ball screw transmission, high accuracy & processing efficiency

3. Reliable equipment; user-friendly interface, real-time machining status feedback, ensuring orderly cutting

Applications

Professionally applied to cutting various metallic materials including carbon steel plate, stainless steel plate, galvanized sheet, electrolytic plate, aluminum alloy, brass and red copper.

Technical Data Sheet

Machine Model	High-Precision Fiber Laser Cutting Machine MPS-0806D
Processing Range	800mm╳600mm
X/Y-Axis Positioning Accuracy	±0.03mm/m
X/Y-Axis Repositioning Accuracy	0.02mm
Max Travel Speed	45m/min
Max Travel Acceleration	1.0g
Max Worktable Load	25kg
Machine Weight	Approx. 1.8T
Overall Machine Dimensions（mm）	Approx. 1900╳1500╳2000
