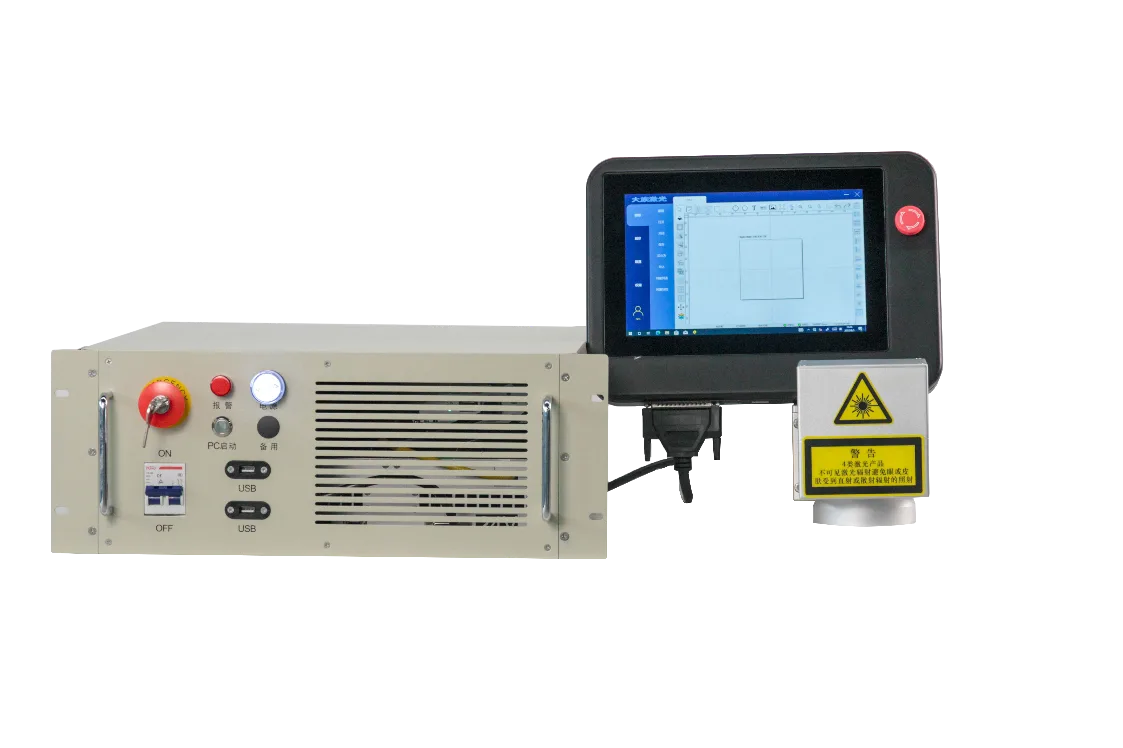

Split-type Teach Pendant

Machine Features

1. Han's Laser self-developed MOPA laser, featuring a wide adjustable pulse width range and supporting laser engraving on various products.

2. Compact size, high marking precision, fast processing speed, excellent stability, zero pollution and low noise.

3. The teach pendant can be handheld, wall-mounted or magnetically attached to any position on automated production lines for enhanced flexibility.

4. The teach pendant is connected to the main unit via a flexible cable, enabling multi-scenario use of one screen and real-time feedback of production line status.

Applications

Widely applied in automotive manufacturing, automation supporting equipment, hardware industry, electronic components, home appliances, consumer electronics, e-cigarettes, instruments and meters, jewelry, new energy, mold manufacturing and more.

Technical Data Sheet

Machine Model	Split-type Teach Pendant
Laser Output Power	≤20W standard（30W/50W/100W/250W, optional） MOPA Fiber Laser
Laser Wavelength	1.06μm
Max Single Pulse Energy	1.0mJ
Optional Modes	8~11
Laser Repetition Frequency Range	1.6-1000KHz
Beam Quality M²	1.2-2
Engraving Area	100100mm(standard)~400400mm(optional)
Engraving Depth	≤0.4mm
Engraving Line Speed	≤7000mm/s
Minimum Line Width	0.1mm
Minimum Character Size	0.1mm
Repositioning Accuracy	±0.003mm
Total Power Consumption	≤500W
