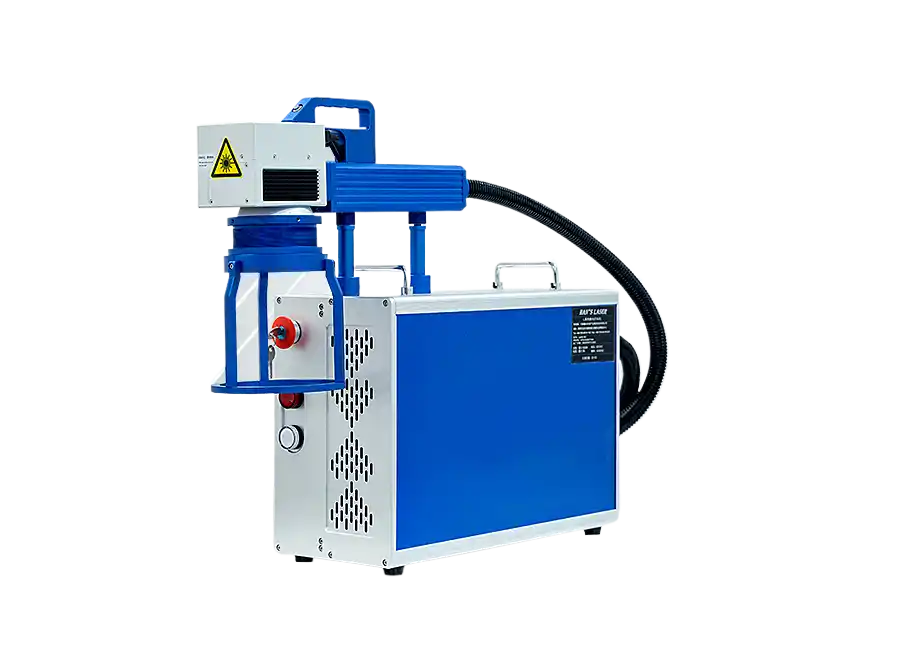

Handheld Laser Marking Machine (Plug-in Power Type)

Machine Features

1. High precision, fast marking speed and stable performance, supporting long-hour continuous operation.

2. High versatility, suitable for a wide range of marking materials and various marking patterns.

Applications

Widely used in electronic components, electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, eyewear and watches, jewelry, auto parts, plastic buttons, building materials, PVC pipes and other industries.

Technical Data Sheet

Machine Model	Handheld Laser Marking Machine (Plug-in Power Type)
Laser Type	Q-switched Fiber Laser
Laser Output Power	≤20W
Marking Area	100*100mm（Standard）
Marking Focal Length	185mm
Positioning Method	Red Light Positioning
Overall Weight	23KG
Supported File Formats	BMP/DXF/HPGL/JPEG/PLT
Laser Wavelength	1064nm
Galvo Mirror Size	10mm
Marking Line Speed	≤7000mm/s
Supported Barcode Types	CODE39/CODE128/CODE126/QR
Main Unit Dimensions	450mm×210mm×400mm
Operating Temperature Range	10-45°C
Cooling Method	Air Cooling
