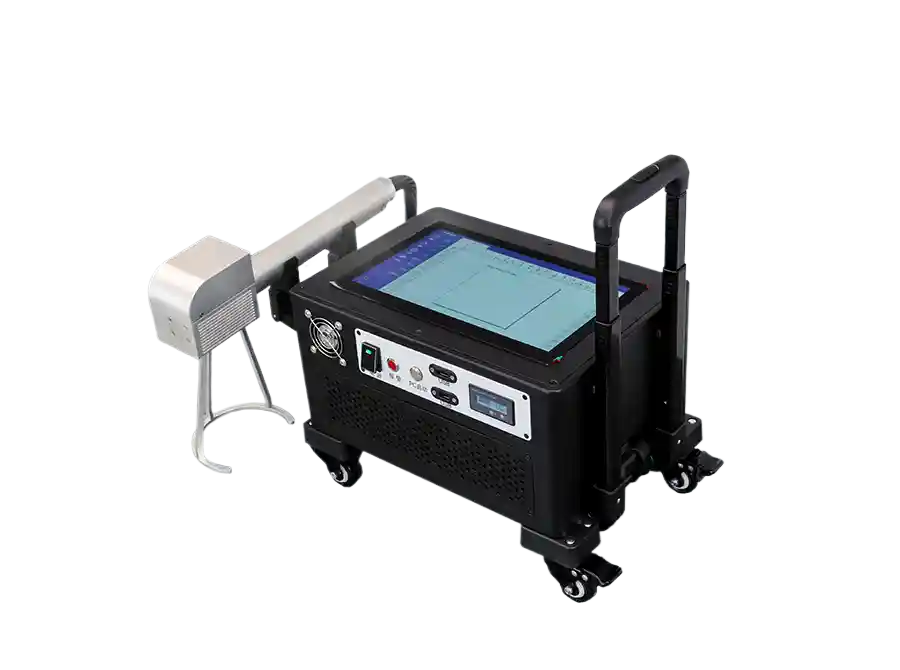

Handheld Fiber Laser Marking Machine

J20H-SC

Machine Features

1.Optional battery power with a standard 6-hour runtime for fully portable marking without site restrictions.

2. Handheld marking head with an infrared proximity sensor that automatically detects marking surfaces to prevent accidental triggering, avoiding personal injury and workpiece damage.

3. Unique luggage-style pull handle for easy transport, enabling flexible marking across frequently changing work sites.

4. Built-in 13.3 inch touchscreen simplifies operation

5. Marking software with powerful functions and easy operation

Applications

Suitable for mobile marking and marking on large equipment, vertical surfaces and other workpieces that cannot be processed by conventional models.

Technical Data Sheet

Machine Model	Handheld Fiber Laser Marking Machine J20H-SC
Laser Type	Q-switched Fiber Laser
Laser Wavelength	1064nm
Battery Runtime	≤6H
Laser Output Power	≤20W
Operating Temperature Range	15-45°C
Marking Area	90*90mm
Main Control System	13.3 inch Touch Screen; Windows Operating System
Machine Dimensions	300550450mm
