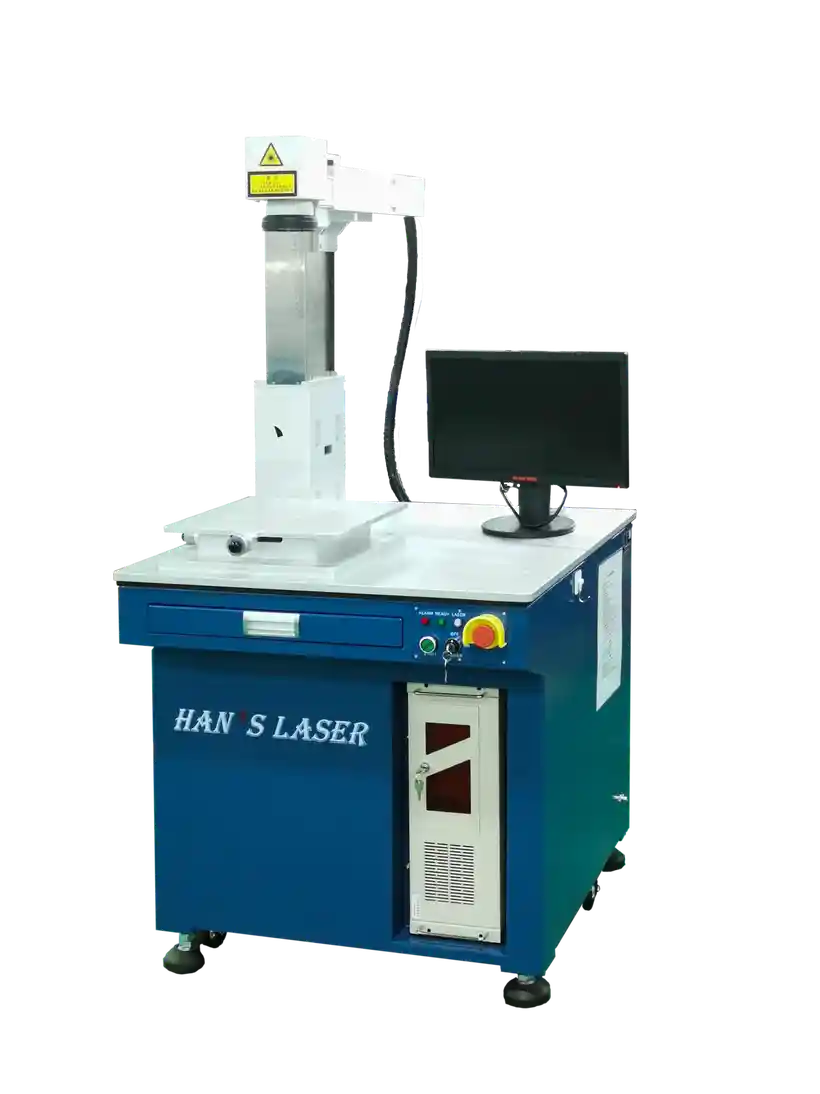

Fiber Laser Marking Machine

MP20

Machine Features

1. MOPA Fiber Laser with adjustable pulse width, wide material compatibility and superior beam quality.

2. Specially suitable for various consumer electronics and medical devices.

3. Excellent for black marking on anodized aluminum, keyboard marking, translucent key marking and charger marking.

4. Capable of contact-free marking on various metal alloys for medical equipment.

5. Abundant worktable expansion functions.

Applications

Suitable for various metals including iron, copper, aluminum, gold, silver, as well as partial non-metallic materials such as PC, ABS, PVC and PC+ABS.

Widely used in 3C products, auto parts, electronic components, integrated circuits (IC), instruments and meters, electrical appliances, medical devices, hardware products, building materials, eyewear & watches, jewelry and craft gifts.

Technical Data Sheet

Machine Model	Fiber Laser Marking Machine MP20
Laser Type	MOPA Fiber Laser
Laser Wavelength	1064nm
Laser Repetition Frequency	1.6-1000KHz
Output Laser Power	20W
Beam Quality	≤1.3
Optional Waveforms	9
Total Power Consumption	≤0.5KW
Expandable Functions	High-precision Calibration Marking / Rotary Marking / Bitmap Marking
Machine Dimensions	9008401420mm
