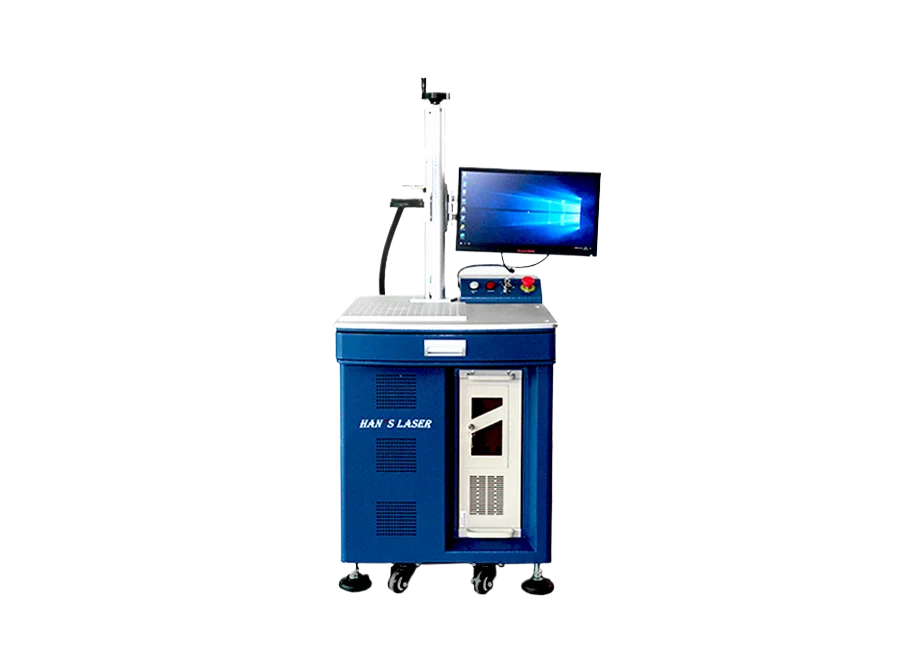

Fiber Laser Marking Machine

H Series

Machine Features

1. Adopts high-quality imported IPG Fiber Laser for stable and reliable laser output

2. High-strength K-type cabinet, integrated compact structure with stable performance

3. Multiple expandable worktable functions

4. Han’s proprietary marking software, easy to learn and operate

Applications

Applicable to various metals including iron, copper, aluminum, gold, silver, and partial non-metals such as PC, ABS, PVC, PC+ABS.

Widely used in 3C products, auto parts, electronic components, ICs, electrical appliances, precision instruments, hardware products, building materials, eyewear & watches, craft gifts and other industries.

Technical Data Sheet

Machine Model	Fiber Laser Marking Machine H Series
Laser Type	Q-switched Fiber Laser
Laser Wavelength	1064nm
Laser Repetition Frequency	1.5-1000KHz
Beam Power	≤100W
Beam Quality	1.2~2
Max Single Pulse Energy	1.0mJ
Total Machine Power	≤0.5KW
Machine Dimensions	8605001300mm
