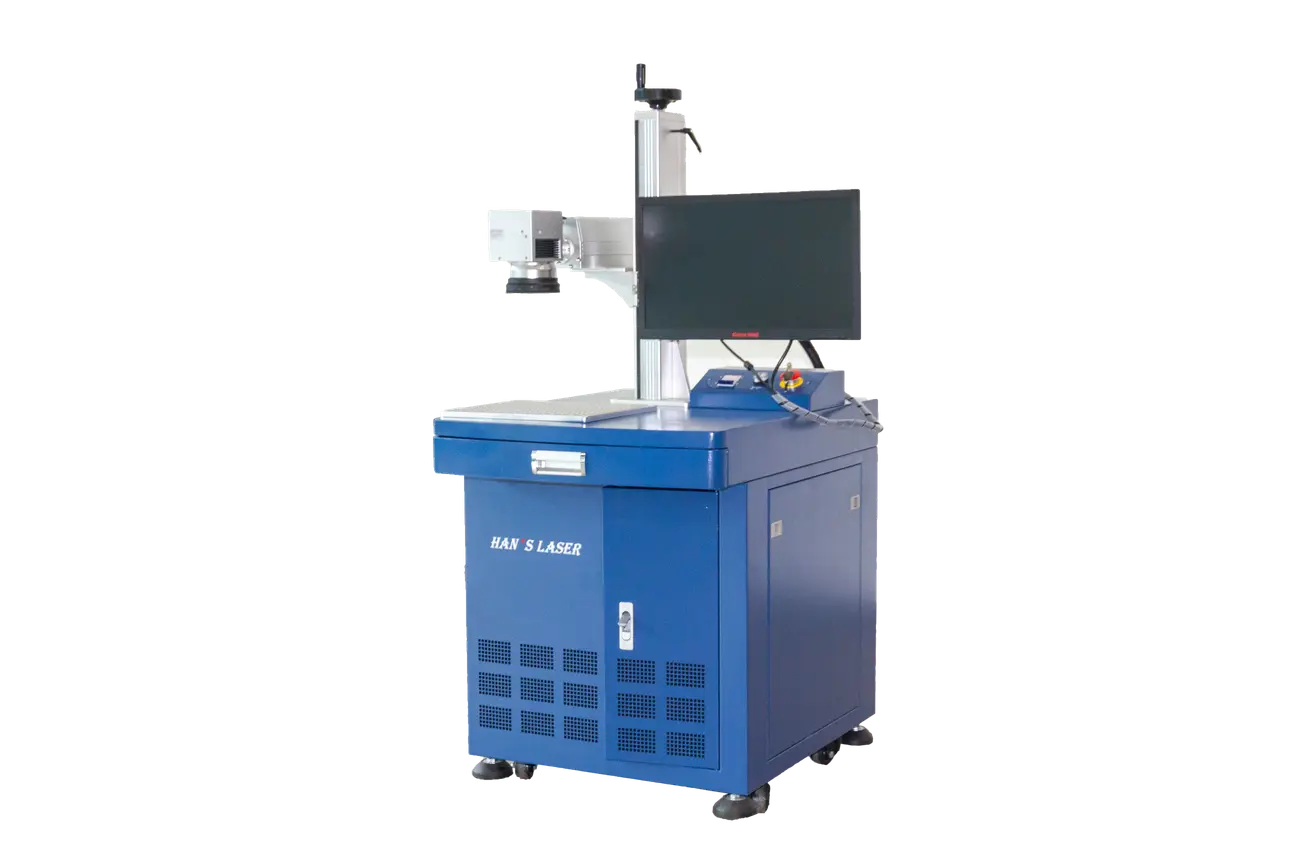

Fiber Laser Marking Machine

EM Series

Machine Features

1.Equipped with Han’s self-developed MOPA multi-mode Fiber Laser with adjustable pulse width, wide material compatibility, excellent beam quality and 16 waveform modes.

2.Core components self-developed by Han’s, stable performance and outstanding cost performance.

3.Mature optional configurations for keyboard marking, rotary marking and other applications.

4.Diverse expandable worktable functions.

5.Han’s proprietary marking software, intuitive and easy to operate.

Applications

Suitable for most common laser marking applications, including text, patterns, logos and QR codes on metals, non-metals and plastic parts. Mainly used in fields requiring high marking precision.

Technical Data Sheet

Machine Model	Fiber Laser Marking Machine EM Series
Laser Type	MOPA Fiber Laser
Laser Wavelength	1064nm
Laser Repetition Frequency	1.6-1000KHz
Output Power	20~50W
Beam Quality	1.2~2
Max Single Pulse Energy	0.8mJ
Total Power Consumption	≤0.5KW
Overall Dimensions	7956551520mm
