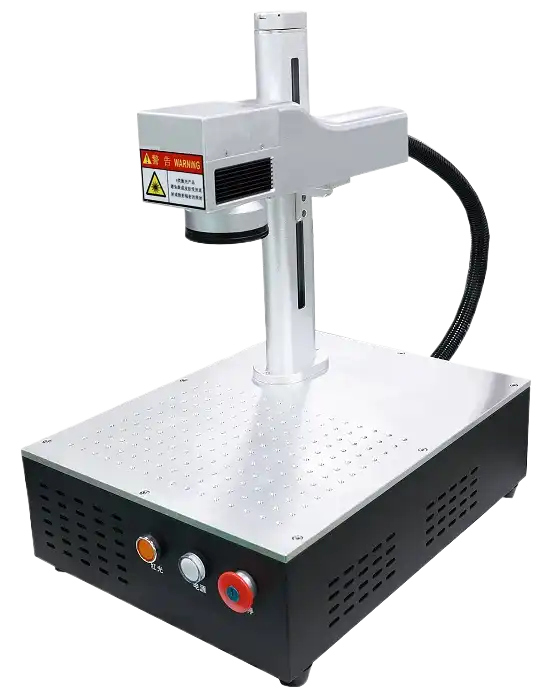

Desktop Fiber Laser Marking Machine

Machine Features

1. Excellent output beam quality and high operational reliability

2. Capable of engraving metals and selected non-metallic materials

3. Supports laser marking of various texts, symbols and patterns; character sizes range from millimeter to micron scale, ideal for anti-counterfeiting, traceability and other product marking applications

4. Compact footprint with small overall size, easy to transport; equipped with red light preview function for precise positioning

Applications

Widely applied in industries including electronic components, electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, eyewear & watches, jewelry, auto parts, plastic buttons, building materials, PVC pipes and more.

Technical Data Sheet

Machine Model	Desktop Fiber Laser Marking Machine
Laser Output Power	≤20W Q-switched Fiber Laser
Laser Wavelength	1064nm
Max Single Pulse Energy	0.8mJ
Optional Modes	1
Laser Repetition Frequency Range	25-100KHz
Beam Quality M²	1.2-2.0
Marking Area	100100mm(Standard)~400400mm(Optional)
Marking Depth	≤0.4mm
Marking Line Speed	≤7000mm/s
Minimum Line Width	0.1mm
Minimum Character Size	0.1mm
Repositioning Accuracy	±0.003mm
Total Power Consumption	≤500W
