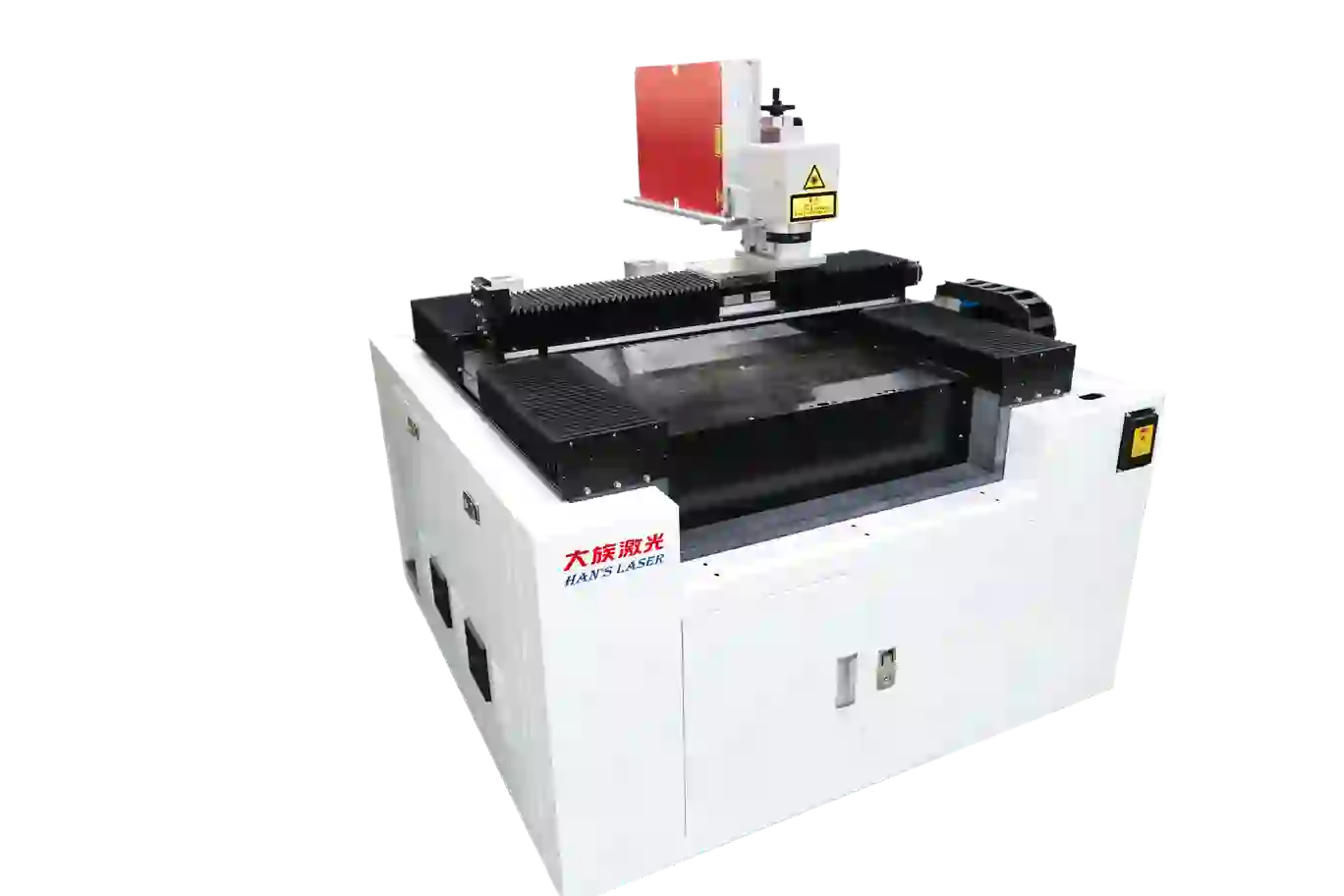

4-Axis Linked Laser Marking Machine

Machine Features

1. Han's Laser 4-Axis Linked Laser Marking Machine

Flagship product with advanced functions, large marking area and high cost performance, widely adopted.

2. 4-axis linkage control system

Synchronizes worktable servo X/Y axes and galvanometer X/Y axes, integrating worktable and galvanometer.

3. 2D synchronous motion algorithm

Realizes large-format dynamic marking with simultaneous table movement and galvanometer processing; ensures accurate position, speed, stable & precise marking.

4. Intelligent linkage & constant-speed marking

Full-featured CAM software; complex graphic high-precision marking with easy commissioning.

Applications

Widely applicable to paint stripping, coating removal, matte surface marking, graphic line marking, smart mirrors, glass processing, decorative painting, elevator patterns, advertising, large-format patterns and other fields.

Technical Data Sheet

Machine Model	4-Axis Linked Laser Marking Machine
Laser Energy	100w
Laser Type	Fiber Laser
Laser Wavelength	1064nm
Max Pulse Energy	1.0mJ
Engraving Area	500600100mm
Engraving Speed	≤3million dots per second
Repositioning Accuracy	±0.003mm
Worktable Travel Speed	500mm/s
Control System	Industrial PC + 4-Axis Linkage Laser Control Card + Servo System
Machine Overall Dimensions	150016001500mm
