TGV Glass Drilling Machine

Machine Features

1. Non-contact processing with minimal material damage and high precision.

2. The equipment features a user-friendly interface, easy operation, and convenient maintenance.

3. Marble linear motor platform ensures high stability.

4. Utilizes femtosecond laser technology for efficient and high-quality processing.

5. Independently developed processing and control system.

6. Equipped with a high-precision automatic calibration system.


Applications

Processing of through-holes in glass substrates

Technical Data Sheet
Processing Range730mm x 920mm
Platform Repeated Positioning Accuracy±1um
Platform Dynamic Positioning Accuracy±3um
Maximum Platform Moving Speed 200mm/s
Camera Positioning Accuracy±0.005mm
Overall Weight of the Machine≤3.5T
Laser Type Infrared Femtosecond
Wavelength1030nm
Power 20W
Pulse Width＜10ps
Cooling MethodWater Cooling
Power Requirement380V/50Hz AC 3P

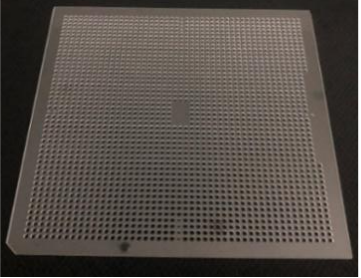

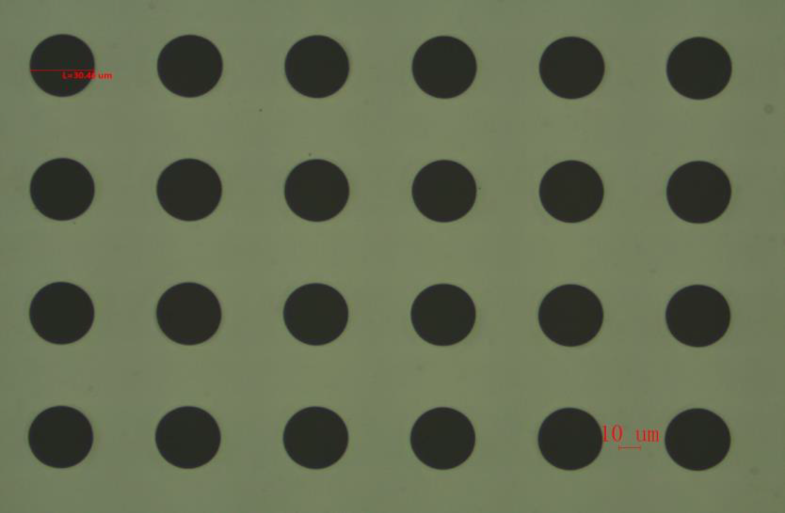

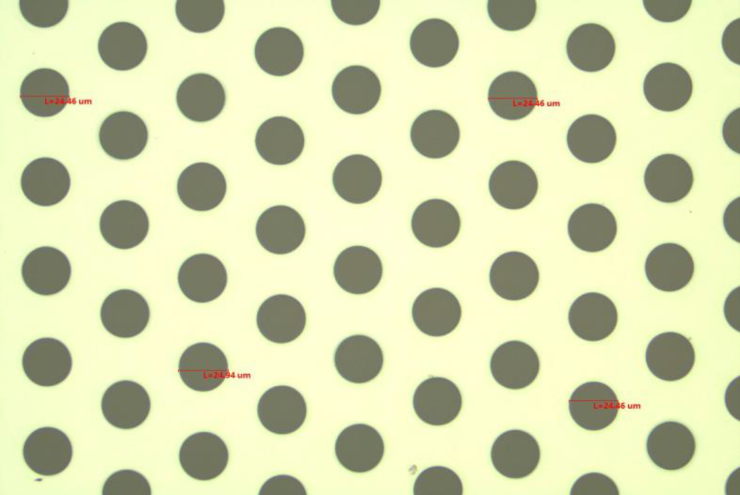

Laser Cutting Effects
