Fully Automatic AR Diffraction Waveguide Lens Cutting and Cracking Machine

Machine Features

1. Product thickness: 0.2-1mm

2. Cutting size accuracy requirement: ±0.02mm

3. Processing efficiency: 6 seconds per piece

4. Non-contact processing with minimal material damage and high precision

5. The equipment features a user-friendly interface, simple operation, and convenient maintenance

6. Marble linear motor platform for high stability


Applications

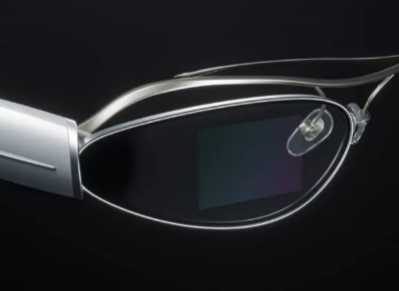

AR lens, optical coated glass

Technical Data Sheet
Machine
Fully Automatic AR Diffraction Waveguide Lens Cutting and Cracking Machine
Processing Range8-inch and 12-inch Wafers (Fully Automatic)
Platform Repeated Positioning Accuracy±1um
Platform Dynamic Positioning Accuracy±3um
Maximum Platform Moving Speed200mm/s
Camera Positioning Accuracy±0.01mm
Overall Weight of the Machine≤4.5T
Laser GeneratorInfrared Picosecond
Wavelength1030nm
Power 40W
Pulse Width＜10ps
Cooling MethodWater Cooling
Power Requirement380V/50Hz AC 3P


Laser Cutting Effects
