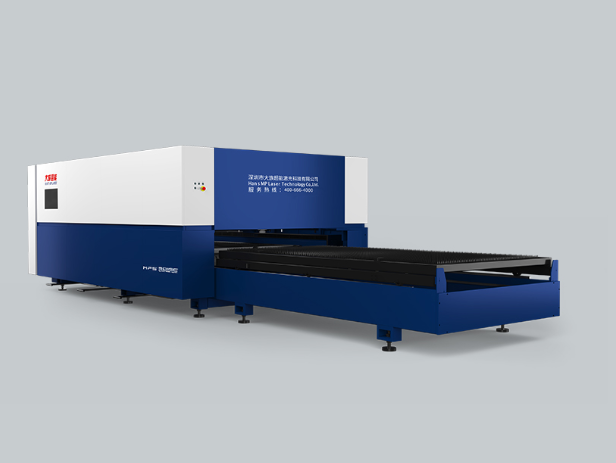

MPS C Series Fiber Laser Cutting Machine

Machine Features

1. The highly integrated all-in-one design effectively reduces operational costs for users.

2. The product features stable and reliable performance. Equipped with disc reducers, it balances speed and acceleration.

3. The control system delivers high performance and superior reliability, with humanized and user-friendly operation.

4. The high-speed parallel exchange platform greatly boosts processing efficiency. It can be fitted with an intelligent monitoring system and supports extended automatic loading and unloading functions.

5. Adopting a dual-drive gantry structure, the machine tool features a bed welded from high-quality steel and a high-strength honeycomb beam. With sophisticated heat treatment and machining processes, it maintains excellent rigidity and outstanding dynamic performance.


Applications

1.Industries:

Suitable for sheet metal processing, kitchen appliances, sheet metal enclosures & cabinets, lighting, advertising, electrical equipment and various metal product manufacturing.

2. Materials:

Specially designed for cutting carbon steel, stainless steel, galvanized steel, electrolytic steel, aluminum alloy, brass, copper and other metal materials. (The cutting capacity varies depending on the laser source.)


Laser Tube Cutting Machine Series
Technical Data Sheet

Model

MPS-3015C

MPS-4020C

MPS-6020C

Working Area

3000mm×1500mm

4000mm×2000mm

6000mm×2000mm

X/Y Axis Positioning Accuracy

±0.05mm/m

±0.05mm/m

±0.05mm/m

X/Y Axis Repeat Positioning Accuracy

±0.03mm

±0.03mm

±0.03mm

Max. Positioning Speed

120m/min

100m/min

100m/min

Max. Acceleration

1.2g

1.0g

1.0g

Max. Load Capacity of Worktable

700kg

1200kg

1800kg

Machine Weight

About 6.5T

About 7.5T

About 10T

Outline Dimensions (L × W × H)

8700mm×2920mm×2000mm

10700mm×3420mm×2000mm

14000mm×3420mm×2000mm
