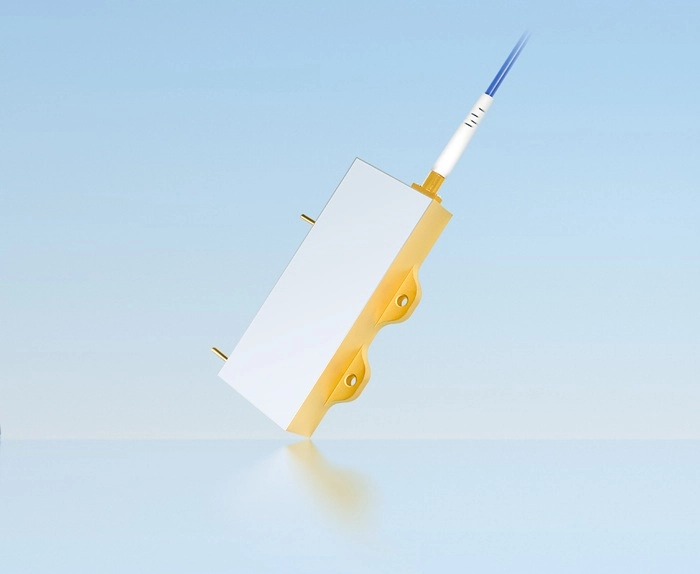

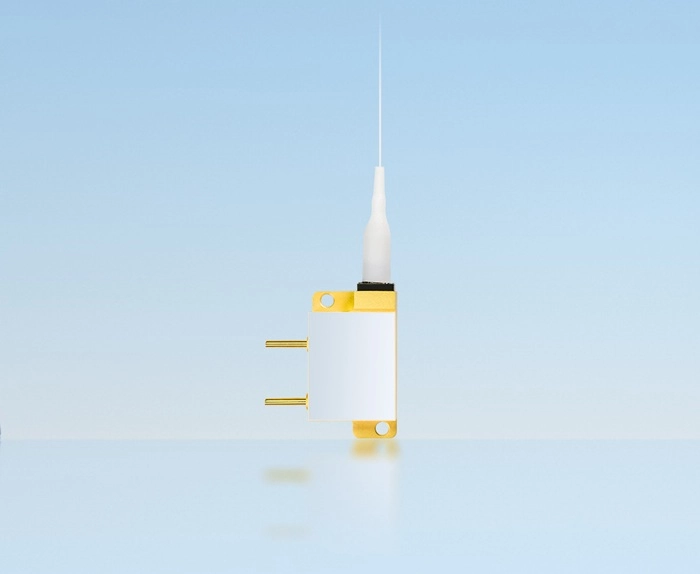

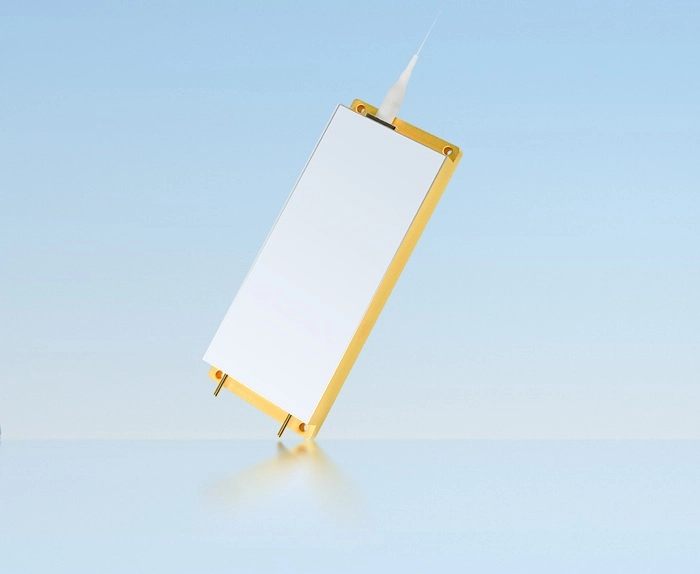

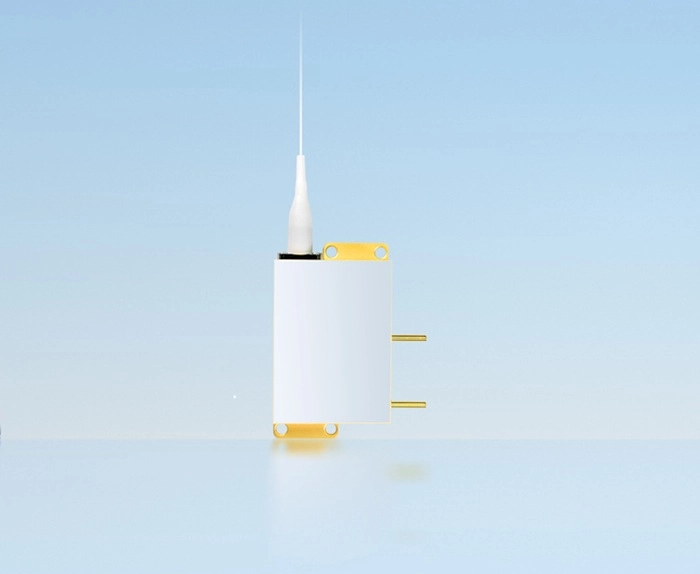

U-Series Solid-State UV Laser Pump Source

Machine Features

1. Narrow spectral linewidth, stable laser wavelength, high beam brightness and superior electro-optical conversion efficiency

2. High heat dissipation efficiency and robust anti-reflection protection

3. Excellent deformation control and consistent product performance

4. Long service life and high operational stability

Applications

1. Precision Machining

2. Medical & Aesthetic Applications

3. Scientific Research

Technical Data Sheet

Machine Model	Power（W）	Laser Wavelength（nm）	Spectral Width（FWHM ）	Core Diameter (μm)	NA(95% Energy)
HLD-U-30W808F200	30	808±3	6	200	0.160
HLD-U-30W878F400	30	878.6±0.5	0.3	400
HLD-U-65W878F400	65			400
HLD-U-120W878F200	120			200	0.165
HLD-U-175W878F200	175			200	0.165
