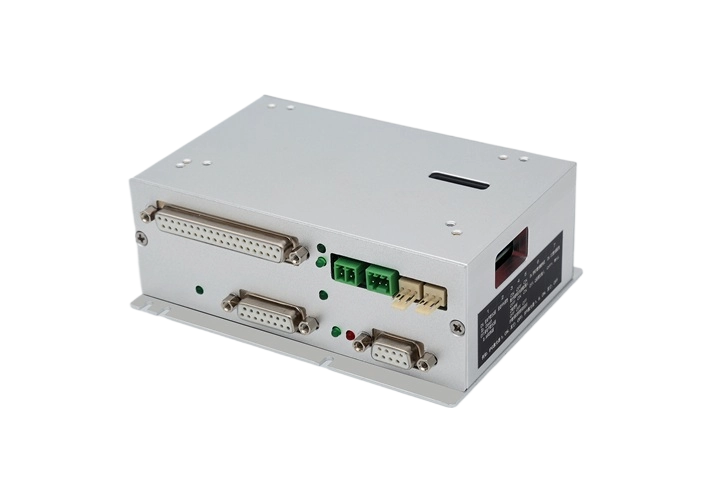

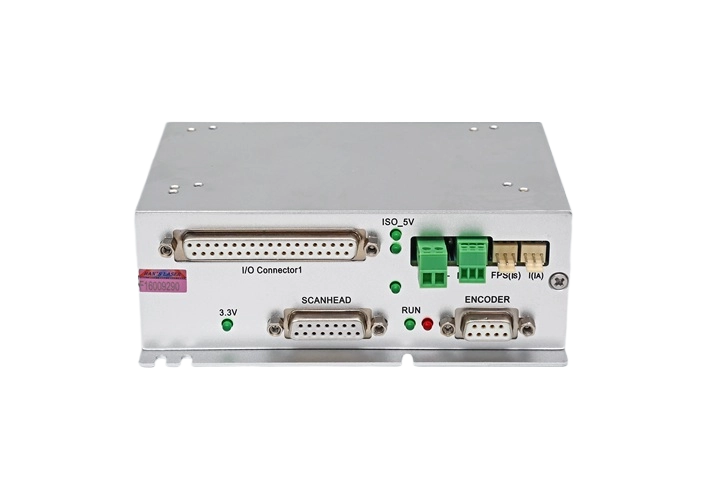

EMCC Dynamic Rotary Card

Machine Features

1. Supports dynamic rotary marking and bitmap marking

2. Supports secondary development

3. Supports high-precision calibration

4. Adopted by more than 120,000 units of equipment

Applications

Widely applied in consumer electronics, precision machining, food packaging, tobacco, photovoltaic new energy and other industries.

Technical Data Sheet

Machine Model	EMCC Dynamic Rotary Card
Compatible Software	HBM Software
Communication Interface	USB
Supply Voltage	24V~36V
Galvo Control	Compatible with mainstream galvo models on the market
Compatible Lasers	Compatible with mainstream laser types on the market
Encoder Input	Differential encoder input
General Input Ports	11 channels
General Output Ports	18 channels
Serial Port	RS485 serial communication protocol (cannot be used simultaneously with encoder)
DAC Output	2 analog output channels
flying Marking	Supported
Secondary Development	Supported
Offline Marking	Supported
