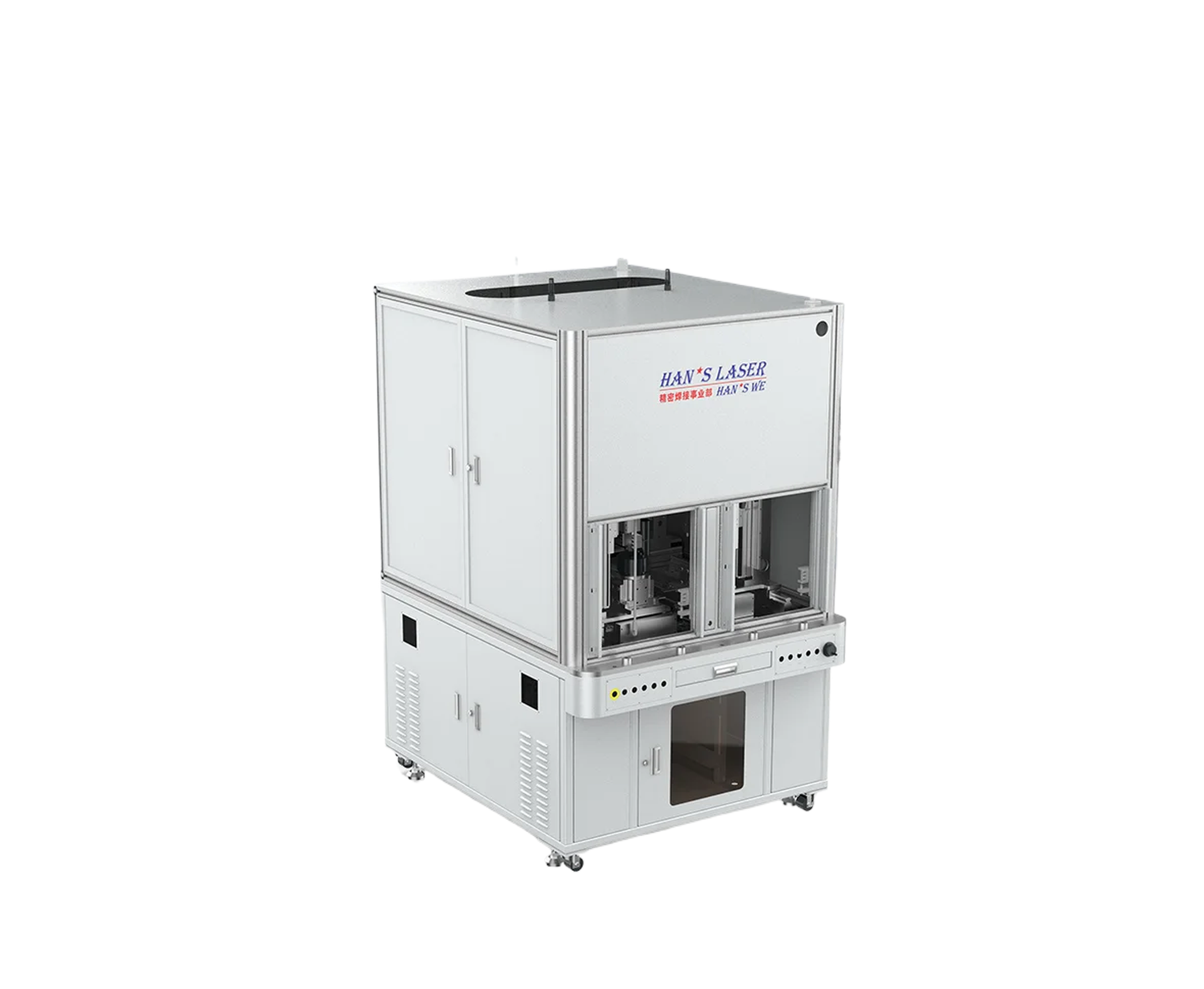

Sensor welding system

Machine Features

1. Double worktables, increased output.

2. Strong university, simple replacement of fixture, compatible with different products having different outer diameters,

3. Dust extraction function equipped, reduced welding smoke

4. Air‑blow protection equipped for superior welding surface quality

5. Industrial control system, use‑friendly human‑machine interface (HMI), straightforward operation

6. Fully enclosed safety protection cover, access control and safety interlock for ensured operation safety.


Applications

The sensor welding system is a solution for the assembly and welding of three parts: sensor pressure ring, sensor sheet and sensor core base.

Technical Data Sheet

Laser

WFF1000

Welding joint

High power welding joint

Platform configuration

7 axis

（X,Y,Y1,Y2,Z,R1,R2）
Platform trail

400mm* 200mm*500mm*500mm* 300mm

 Control system

Industry PC+PLC

Worktable

double worktables

Automation degree

Manually loading and unloading, automatically welding

welding trail

CNC programming or demonstrating

Power demand

Single phase AC220V


Laser Welding Effects

welding
welding

Recommended Products

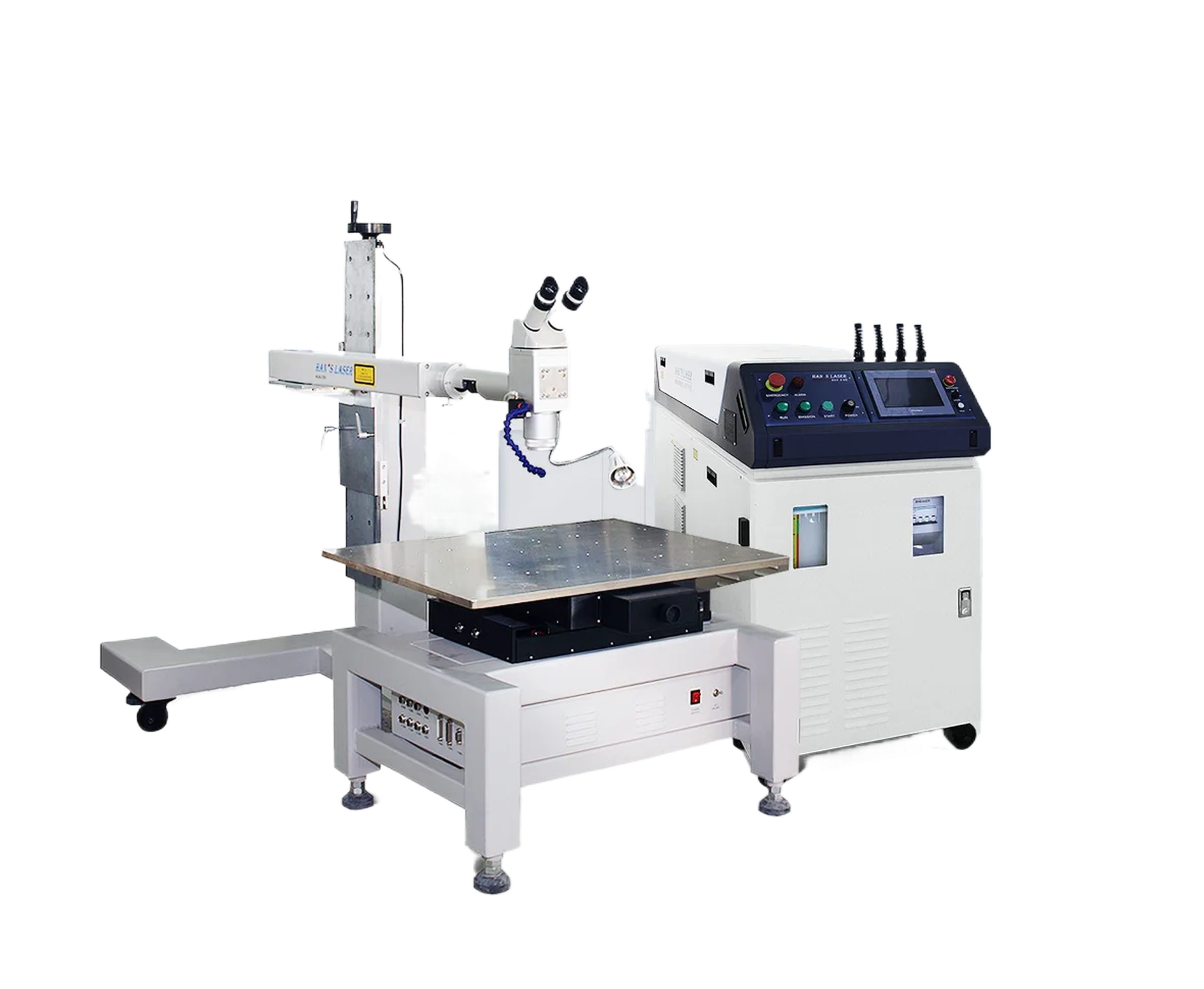

W150G

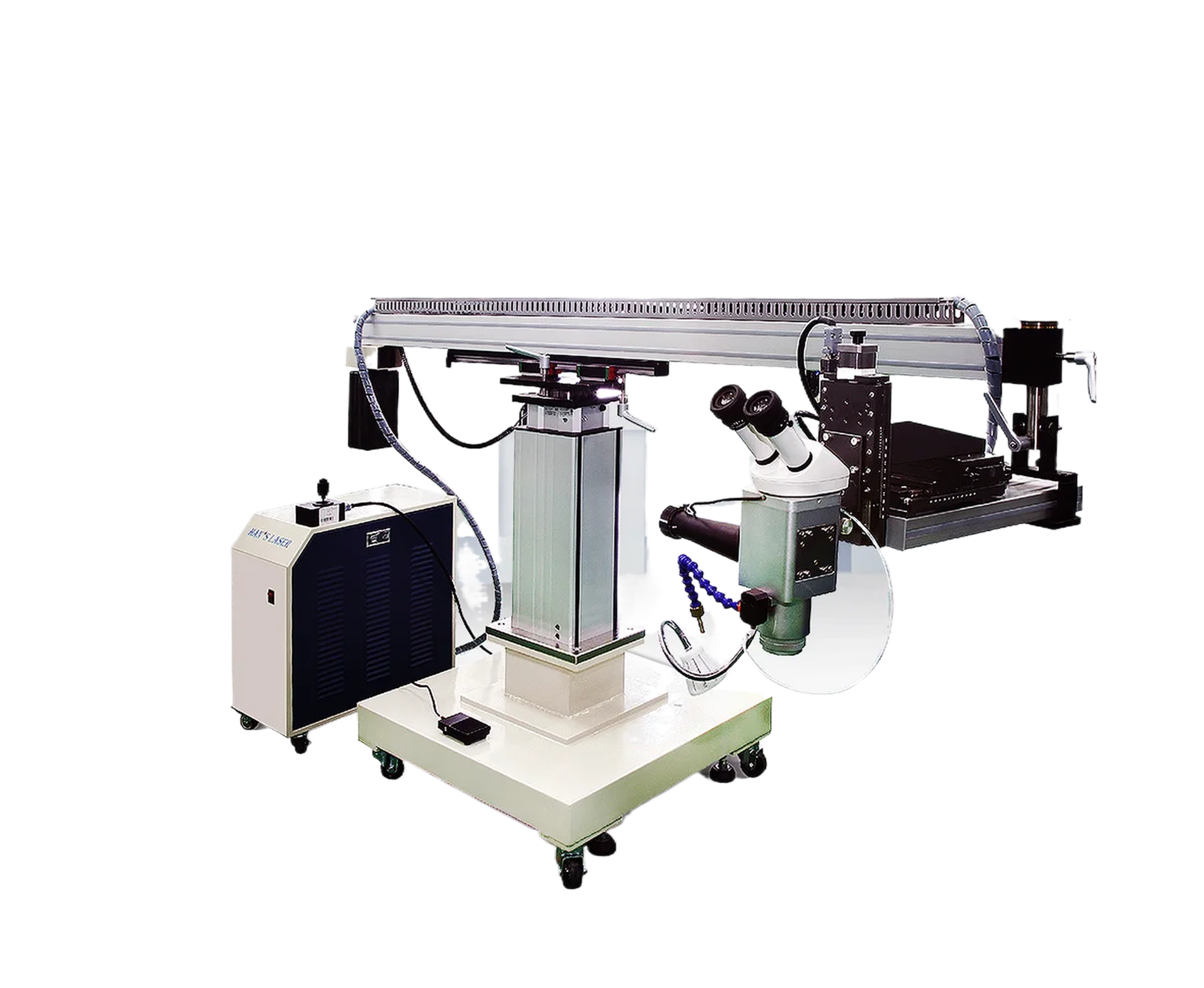

MOLD 301

MOLD 302

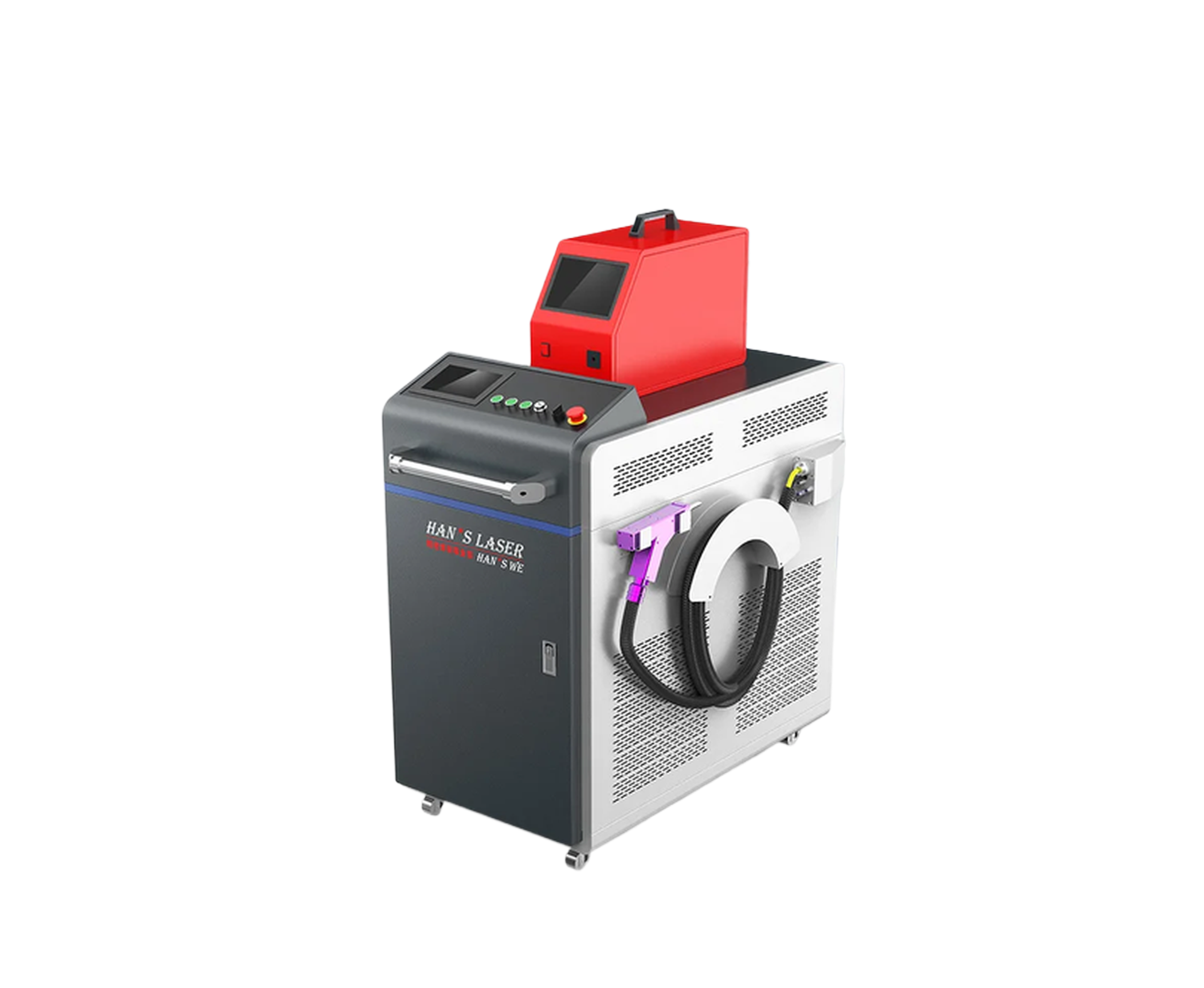

Integrated Handheld Welding Machine

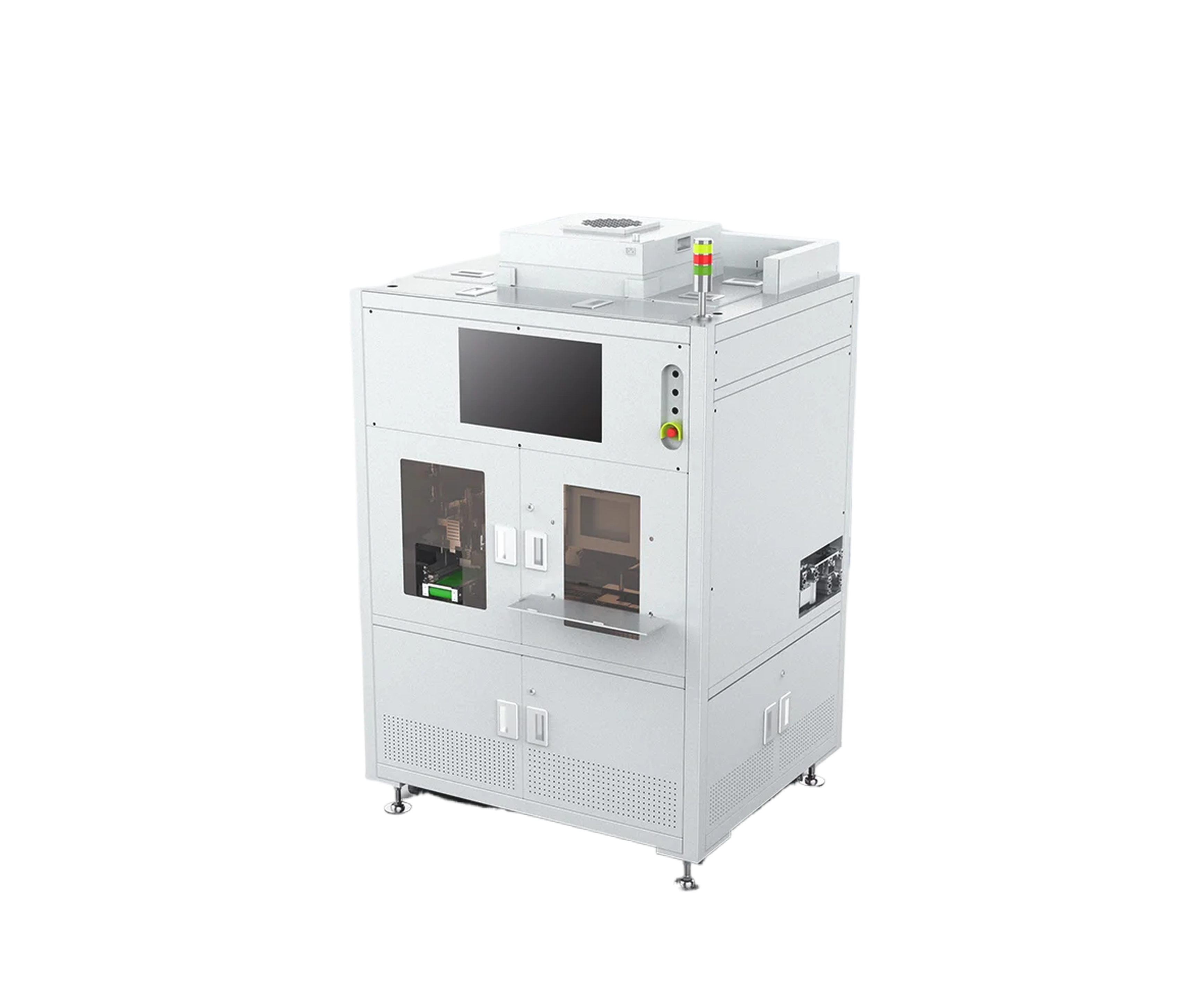

Fully automatic laser solder ball spray welding system

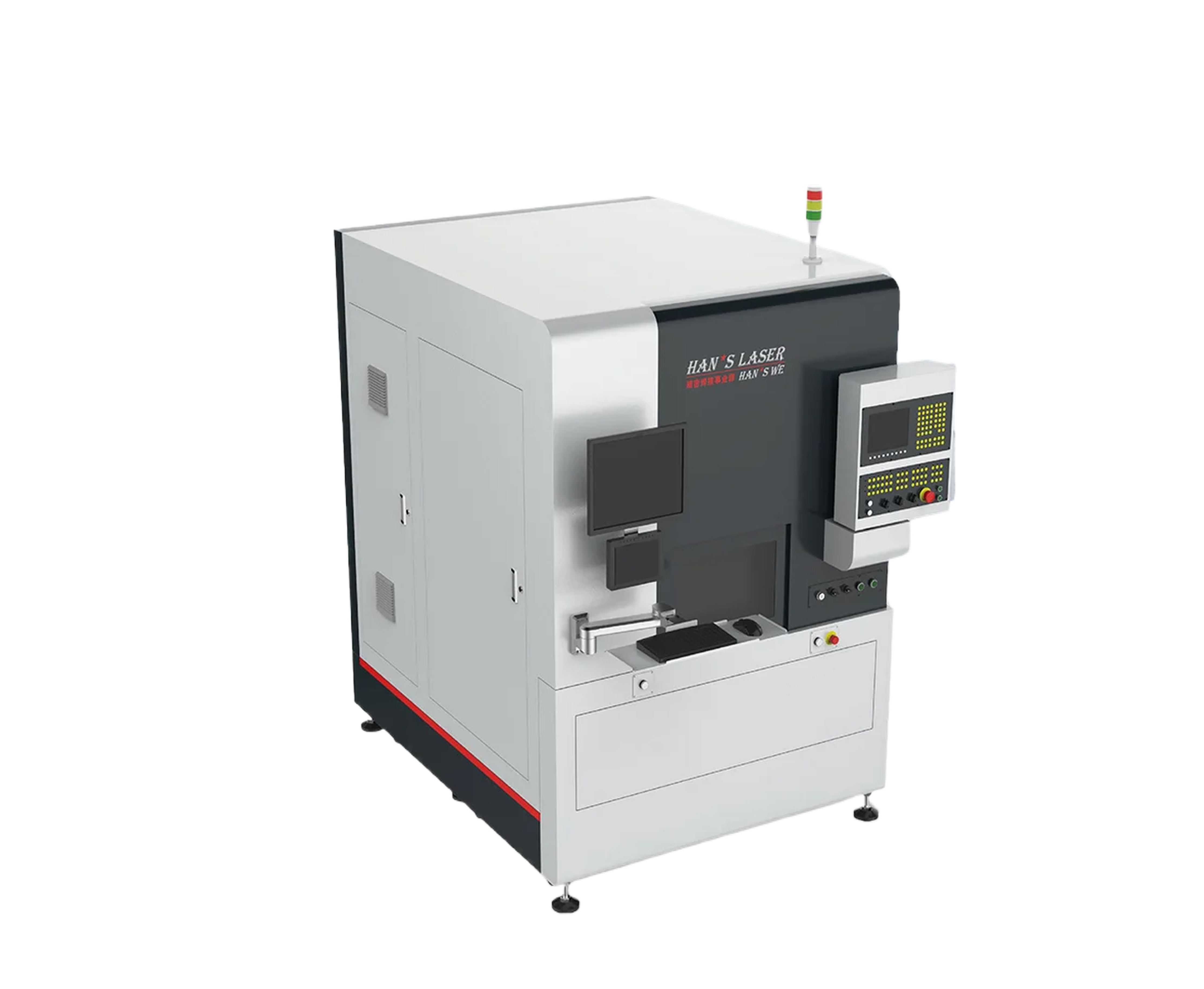

High precision five_axis linkage welding system

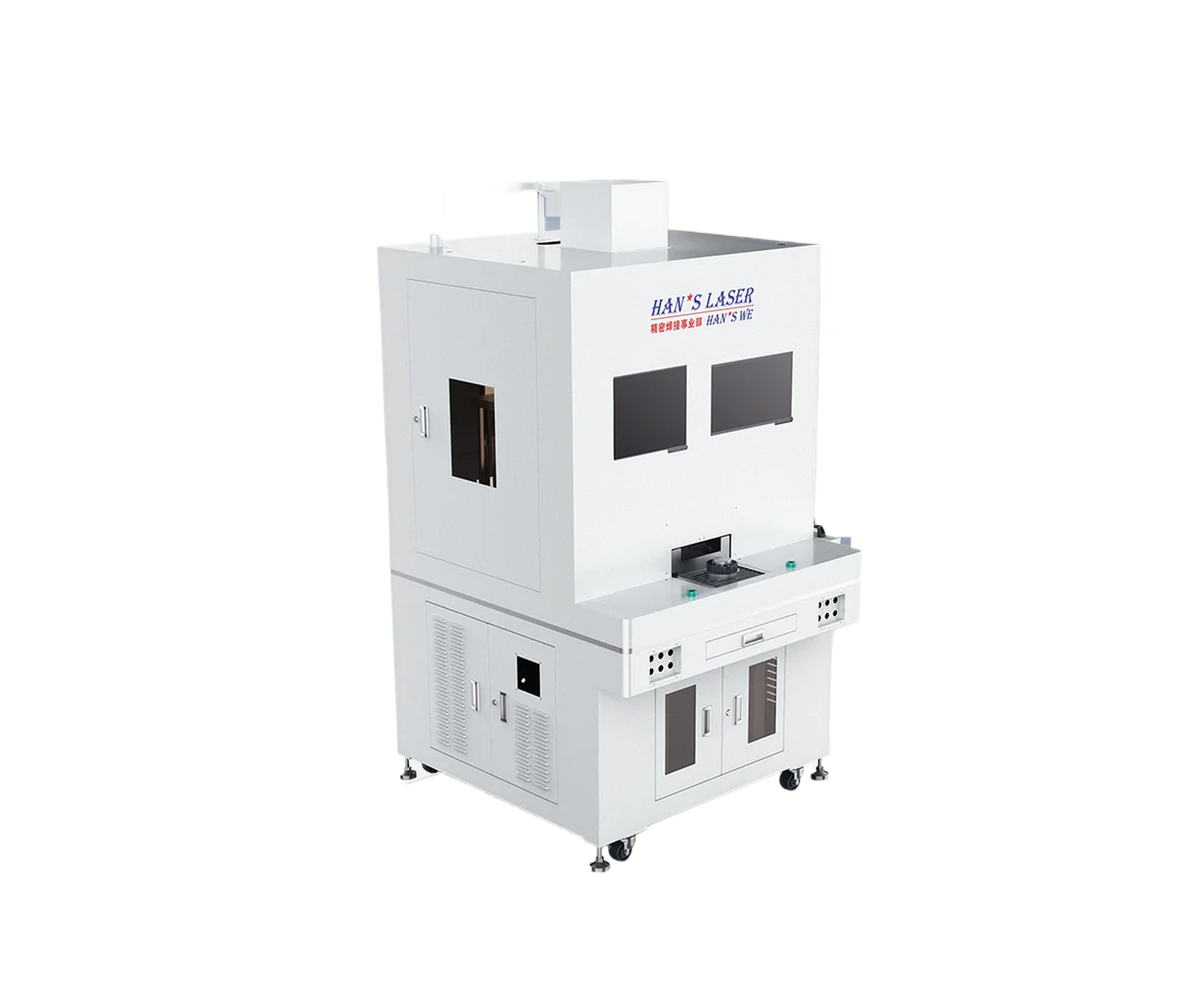

Laser welding machine for motor stator core
