SP-CO2/YLP/UV-XZ Series
SP-CO2/YLP/UV-XZ Series

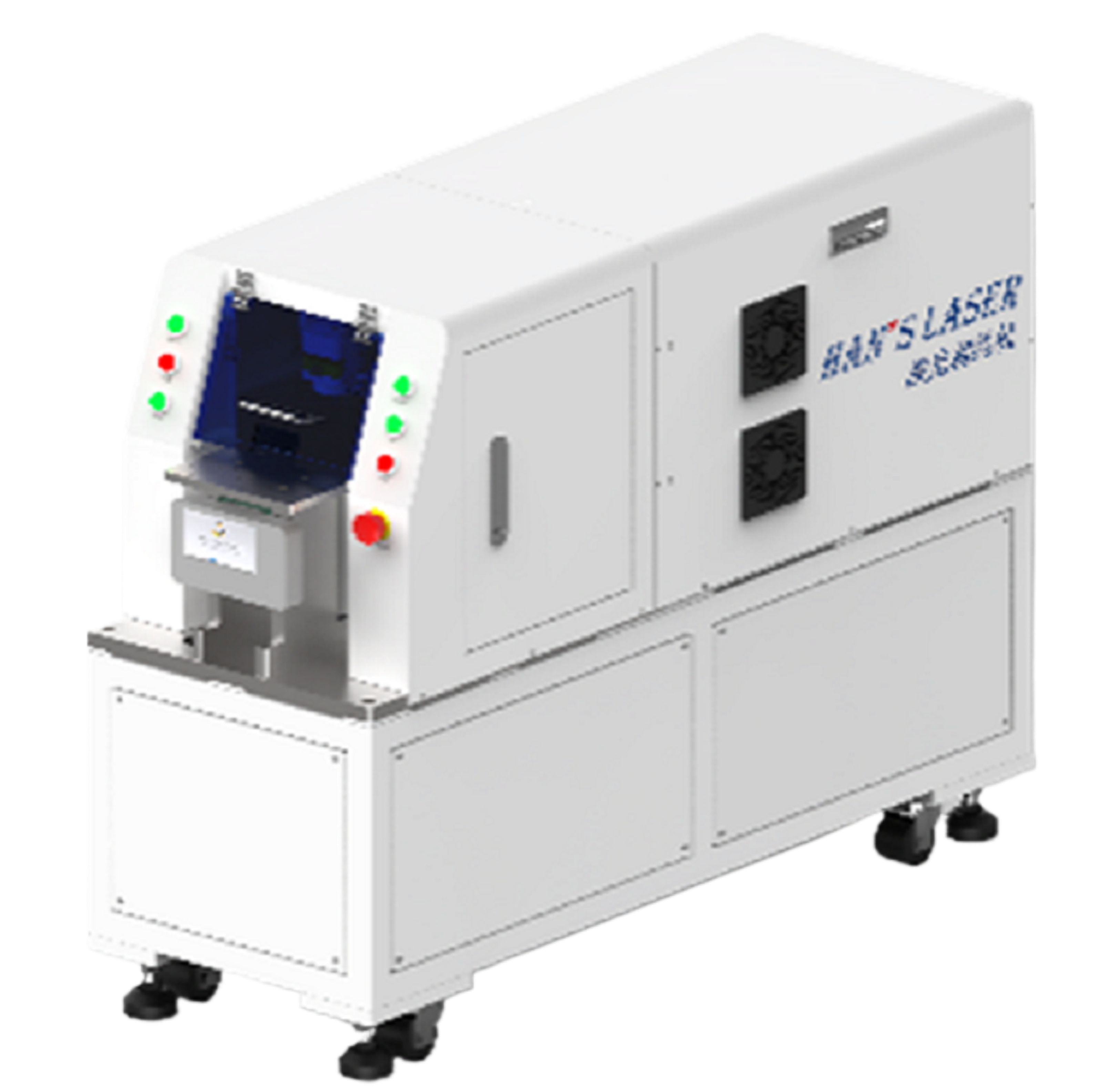

Rotary laser wire stripping machine

SP-CO2/YLP/UV-XZ Series

Machine Features

1.Optional Configurations (Can be customized)

2. Selectable fiber laser power configurations: CO2 or UV models
3. Applicable for wire diameters from 6-20mm. Customizable models for specific wire gauges.
4. Customizable equipment dimensions to match configuration requirements.
5. Split-type design (SP-CO2/YLP/UV-XZ) for compact size, ideal for integration into automated production lines.
6. Equipped with a dust extraction fan (air purifier is optional)


Applications

Circumferential cutting of aluminum foil layers. After cutting, the foil can be easily torn along the incision without damaging internal wires.

Technical Specification

Machine Model

SP- CO2/YLP/UV-XZ (Integrated)

SP- CO2/YLP/UV-XZ (Split-type)

Laser Power(Optional)

CO2:30/55

Fiber:20/30/50

UV:5/10

CO2:30/55

Fiber:20/30/50

UV:5/10

Laser Wavelength

CO2:10.6/9.3um

Fiber:1064nm

UV:355nm

CO2:10.6/9.3um

Fiber:1064nm

UV:355nm

Compatible Wire Diameter

6-20（can be customized）

6-20（can be customized）

Rotation Angle(°)

±360

±360

Rotation Speed(°/S)

≤180

≤180

Compressed Air(Mpa)

0.3~0.5

0.3~0.5

External Dimensions(Lmm*Wmm*Hmm)

1250*450*1000（can be customized）

760*260*580（can be customized）

Net Weight(Kg)

300

60

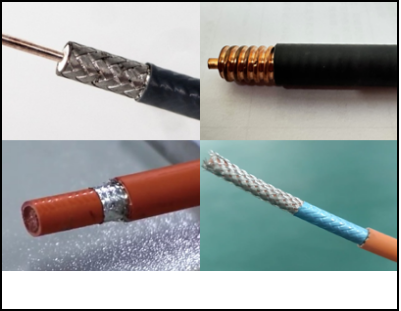

Laser Cutting Effects
