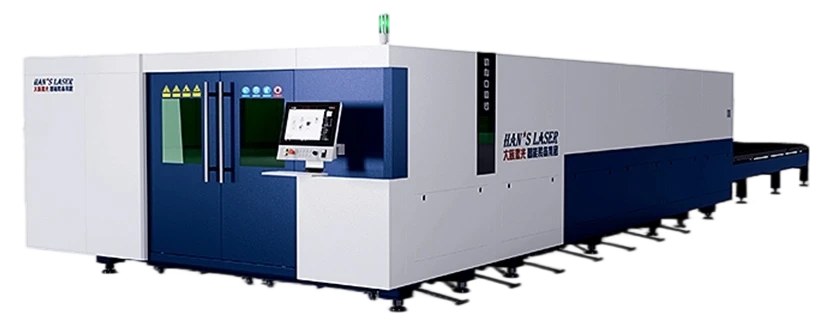

Laser Cutting Machine

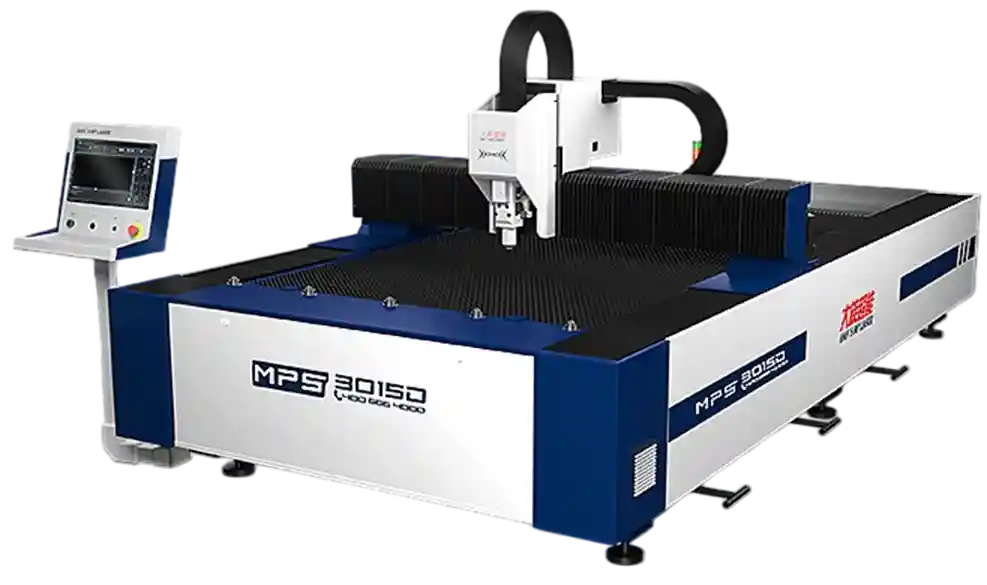

MPS-D Series

Machine Features

1. Dual servo drive with precision reducers and rack & pinion, excellent dynamic performance

2. Han’s Laser cutting control system, mature and continuously optimized; high performance, reliable, user-friendly operation

3. Advanced gas circuit system with imported pneumatic components; switchable high/low-pressure assist gas, superior cutting quality & lower operating cost

4. Gantry structure, welded steel frame, honeycomb high-strength beam; precise heat treatment & machining, high rigidity and long-term stable operation

Applications

Applied to Industries:

Rail transit, shipbuilding, automobile, construction machinery, agricultural & forestry machinery, electrical equipment, elevator manufacturing, home appliances, grain machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchen & bathroom hardware, decoration & advertising, laser job shop and other machinery manufacturing sectors.

Applied to Materials:

Carbon steel, stainless steel, aluminum alloy, brass, red copper, pickled sheet, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy and other metal materials.

Technical Data Sheet

Model	MPS-3015D	MPS-4020D	MPS-6020D	MPS-6025D	MPS-8025D
Processing Area	3000mm×1500mm	4000mm×2000mm	6000mm×2000mm	6000mm×2500mm	8000mm×2500mm
X/Y Axis Positioning Accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m	±0.05mm/m	±0.05mm/m
X/Y Axis Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Max. Positioning Speed	120m/min	100m/min	100m/min	100m/min	100m/min
Max. Acceleration	1.2g	1.0g	1.0g	1.0g	1.0g
Max. Worktable Load	700kg	1200kg	1800kg	3000kg	4000kg
Machine Weight	Approx.4.0T	Approx.4.5T	Approx.6.0T	Approx.7.5T	Approx. 9.5T
Overall Dimensions (L × W × H)	5000mm×2300mm×2000mm	6000mm×2900mm×2000mm	8500mm×2900mm×2000mm	8500mm×3500mm×2000mm	10500mm×3500mm×2000mm

Cookies Consent

Han's Laser Solutions

Laser Cutting Machine

MPS-D Series

Applications

Recommended Products

F Series

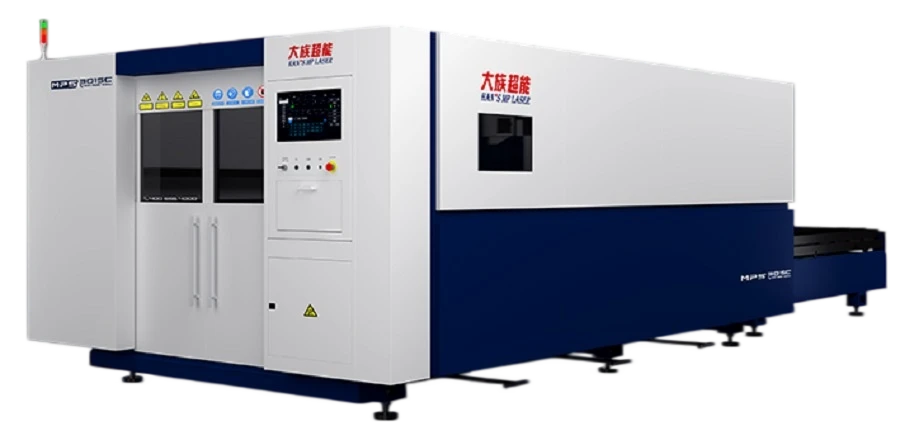

MPS-C Series

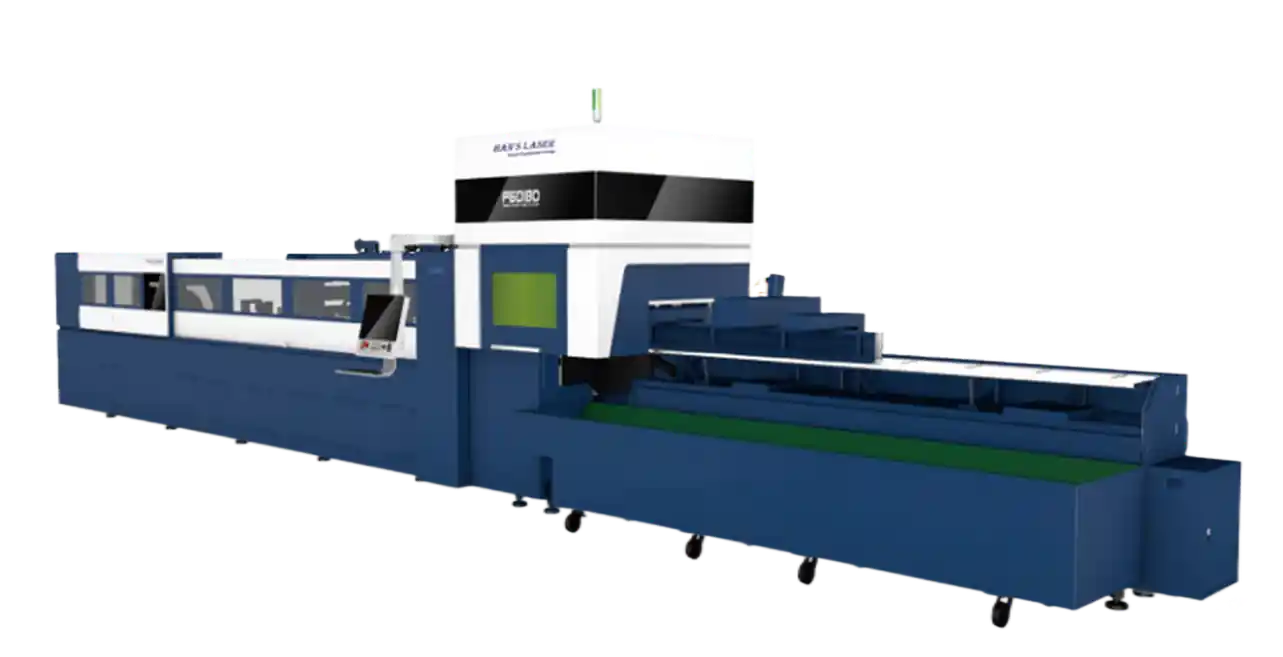

P Series

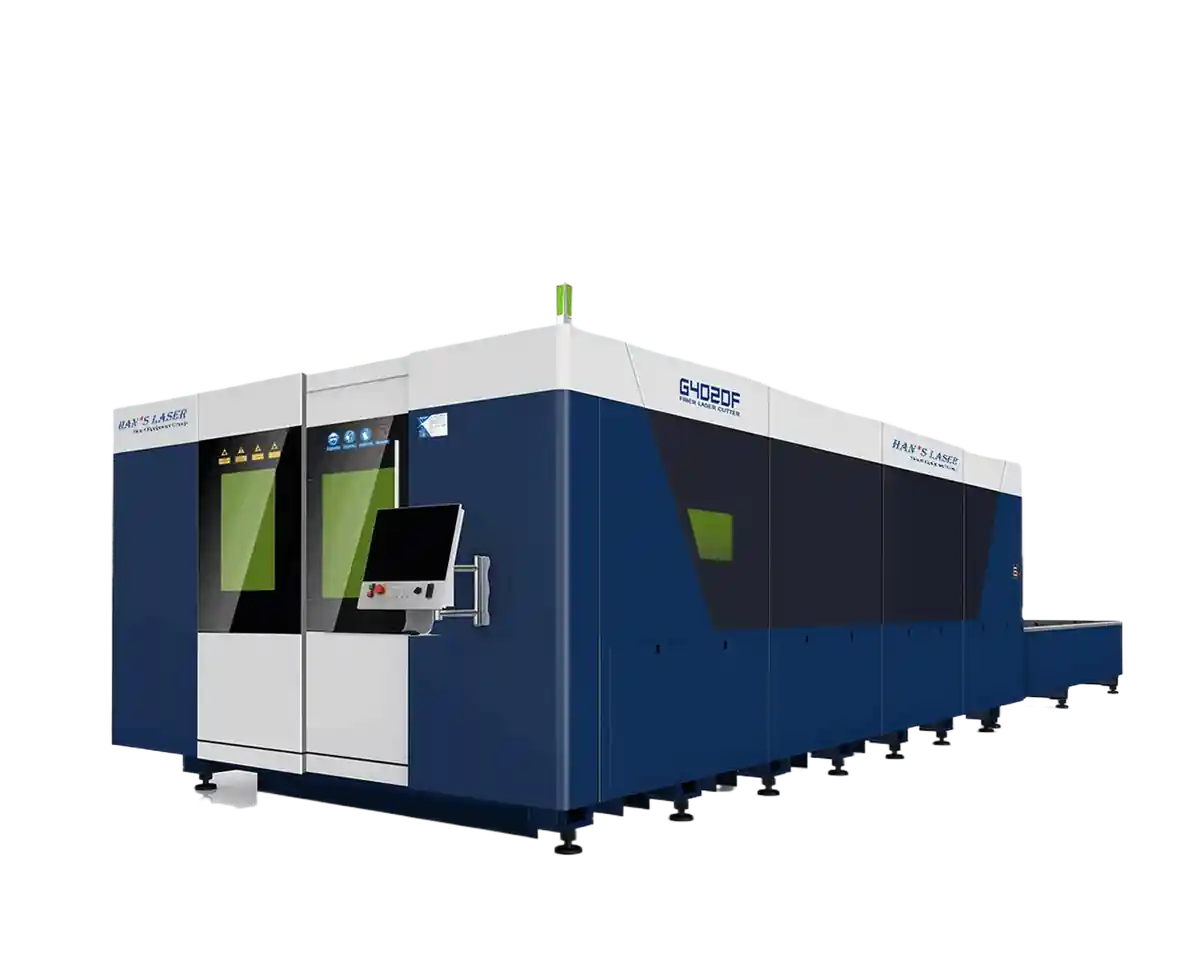

G Series

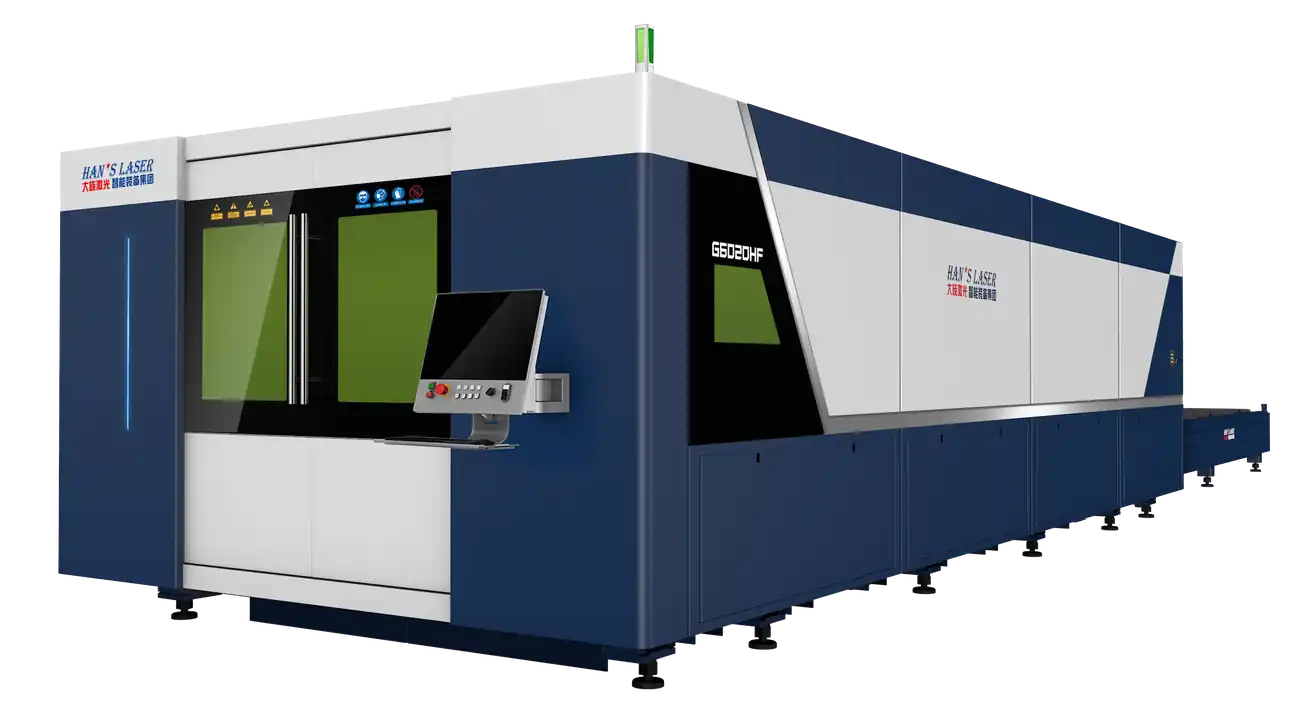

HF Expert Series

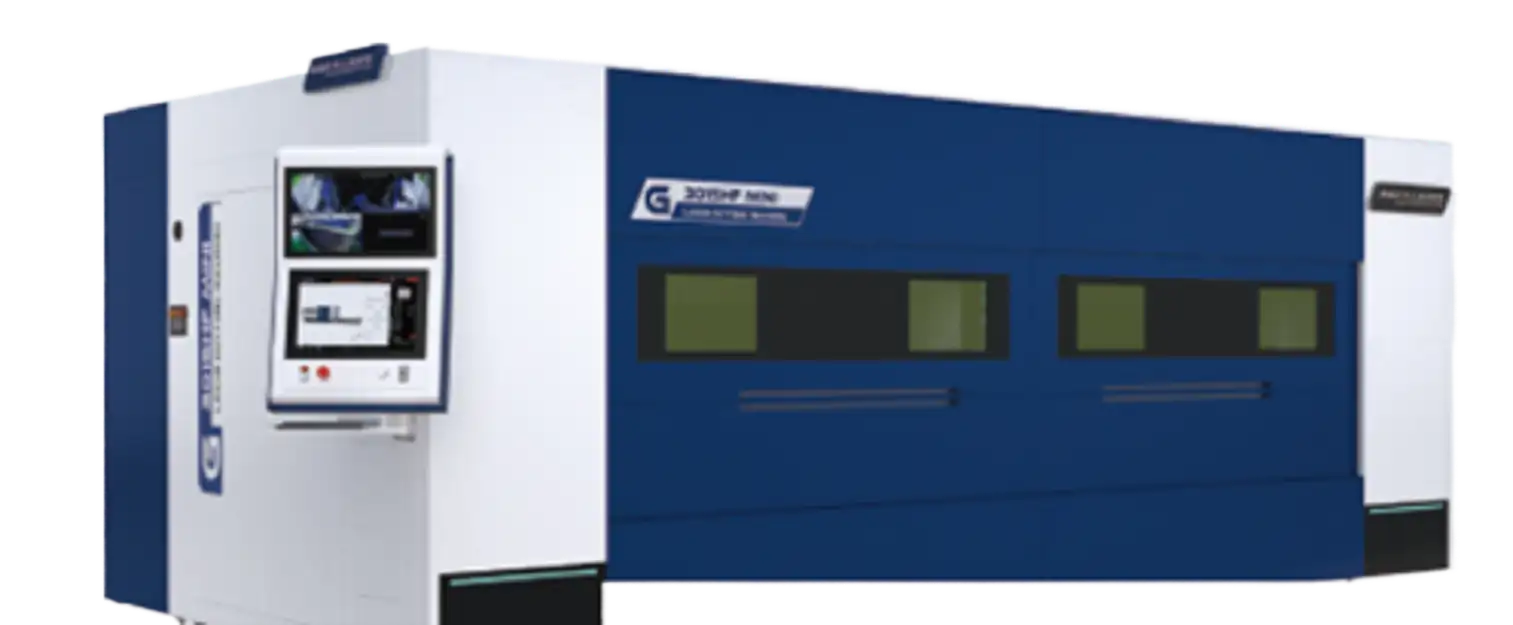

HF Mini Series

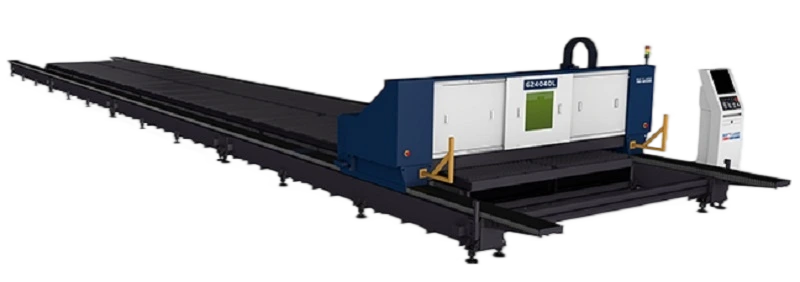

(Ground Rail Type)
