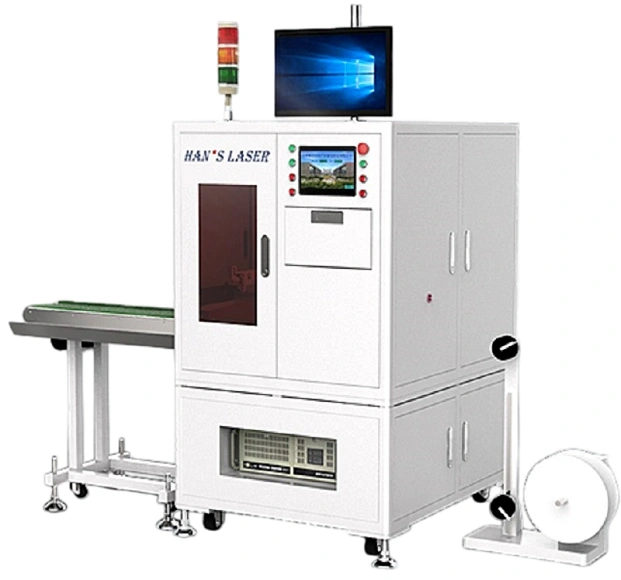

Fully Automatic CNC Laser Wire Stripping Machine

PCVMSP Series

Machine Features

1. Laser stripping method, supporting integrated cutting and stripping for both single-core wires and twisted-pair wires.

2. Causes no damage to wire jackets or inner core wires. Twisted-pair wires achieve burr-free and flat cuts with stable and controllable processing quality.

3. Wire cutting length range:

3.1 Single-core wire: 20~1000 mm, tolerance within 0.002×L mm.

3.2 Twisted-pair wire: 60~1000 mm, tolerance within 0.003×L mm.

3.3 Custom sizes available.

4. Stripping tip length: 1~7 mm; single wire tolerance ±0.2 mm, double wire tolerance ±0.3 mm.

Applications

Main Applications: Outer sheath cutting and automatic cutting of wires.

Technical Data Sheet

Machine Model	Fully Automatic CNC Laser Wire Stripping Machine PCVMSP Series
Laser Power	CO2 Laser :2*30W
Laser Wavelength (Optional)	10.6 um
Wire Specification	0.5- 3mm
Cutting Speed	Subject to specific wire types, max. up to 2000 mm/s
Adjustable Lens Height Range	±25mm
Cutting Program	Straight line, I-shape, filled area (any graphics can be cut by graphic design)
Applicable Wires	Single-core wires and twisted-pair wires
Control System	PLC control system + motion control card
Cutting Length	Subject to wire specifications
Stripping Length	≤5mm
Production Line + Wire Stripping Machine + Wire Payoff Machine (Overall Dimensions) L × W × H (mm)	270011001540
