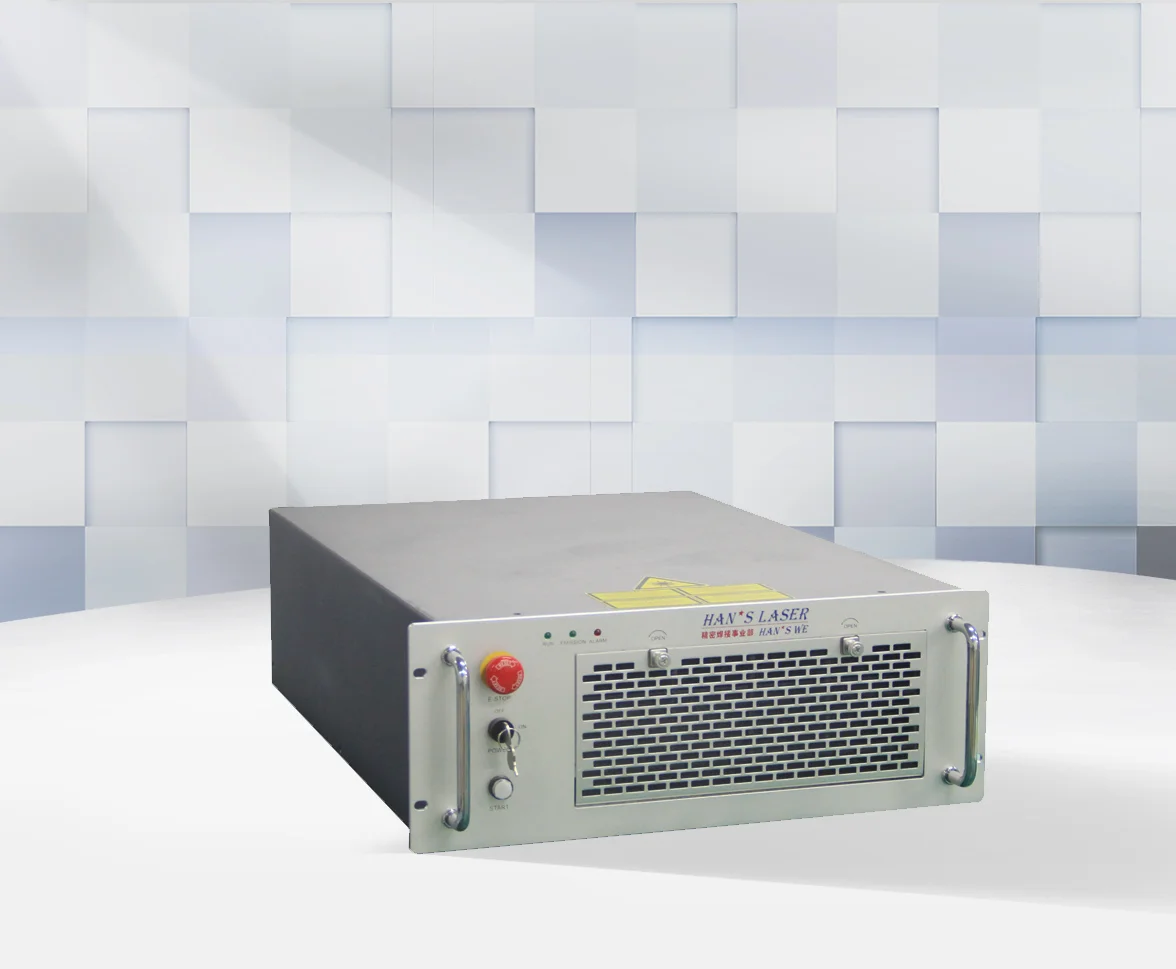

Semiconductor laser welder - WFD10/25/50/100/1000
Semiconductor laser welder - WFD10/25/50/100/1000

Semiconductor laser welder - WFD10/25/50/100/1000

Brief Description
The WFD series is a diode laser that uses diode materials to illuminate between energy bands. Two parallel mirror surfaces inside the diode are formed as a resonant cavity, which illuminates the light, and outputs laser of wavelength 915 nm.
With fiber t
Contact Us
特点和应用:
Specification:
1. Pulsed, continuous dual working mode;
2. A more diverse way of working;
3. Low maintenance cost and low power demand, zero consumables, electro-optical conversion efficiency up to 47%;
4. Better integrated applications for on-site placement and integration;
5. Compact structure space makes handling, management and maintenance more convenient and free.

Application:
Widely applied to the reinforcement and sealing welding of plastics Medical plastic parts.
1. Auto plastic parts.
2. Plastic bottle sealing welding.
3. Plastic pipe sealing welding.
4. Oxygen mask sealing welding.

性能参数:
Model  WFD10 WFD25 WFD50 WFD100 WFD1000
Control mode  CW CW CW CW CW
Maximum Average Power (W) 10W 25W 50W 100W 1000W
Waveform width 0.1~80000ms 0.1~80000ms 0.1~80000ms 0.1~80000ms 0.1~80000ms
Wave form 16 x 16 sections 16 x 16 sections 16 x 16 sections 16 x 16 sections 16 x 16 sections
Laser wavelength  915nm 915nm 915nm(808nm,980nm optional) 915nm 915nm
Fiber Output 1 1 1 1 1
Fiber Diameter 200um 200um 200um 200um 300um
Bending radius >150mm >150mm >150mm >150mm >250mm
Numerical aperture 0.22(Na value) 0.22(Na value) 0.22(Na value) 0.22(Na value) 0.22(Na value)
Fiber length 5m 5m 5m 5m 5m
Fiber plug D80 D80 D80 D80 QBH
Power consumption 200W 150W 240W 350W 2700W
Power supply 220V±10%/50Hz 220V±10%/50Hz 220V±10%/50Hz 220V±10%/50Hz 220V±10%/50Hz
Machine dimension (L*W*H) 560x440x177mm  595x455x177mm  560x440x177mm  560x440x177mm  677x440x177mm
Cooling mode Built-in air cooling Forced air cooling (built-in) Built-in air cooling Built-in air cooling Built-in air cooling
Sample

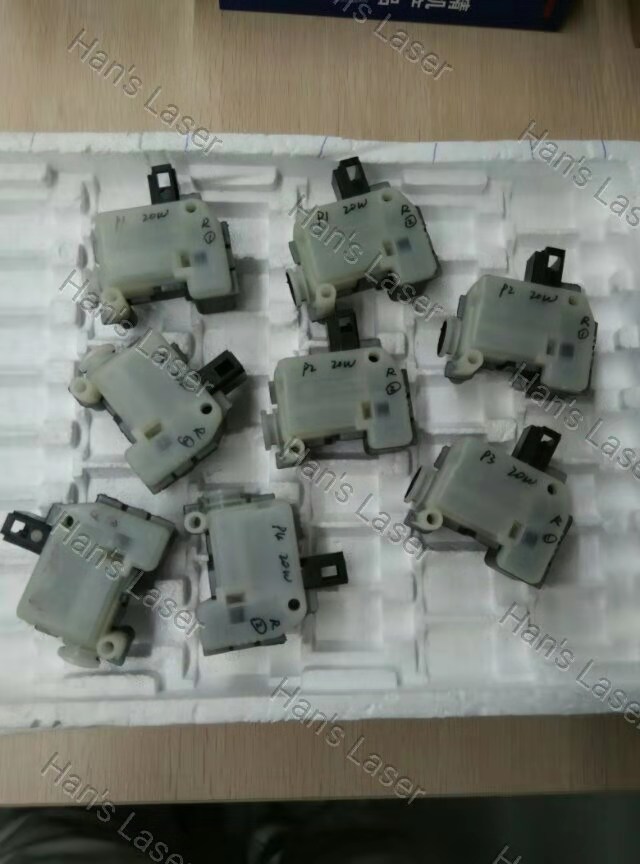

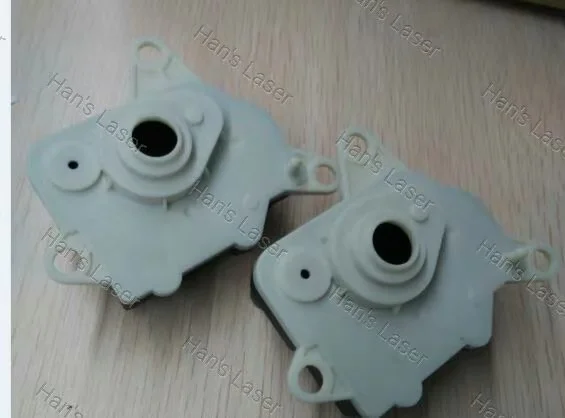

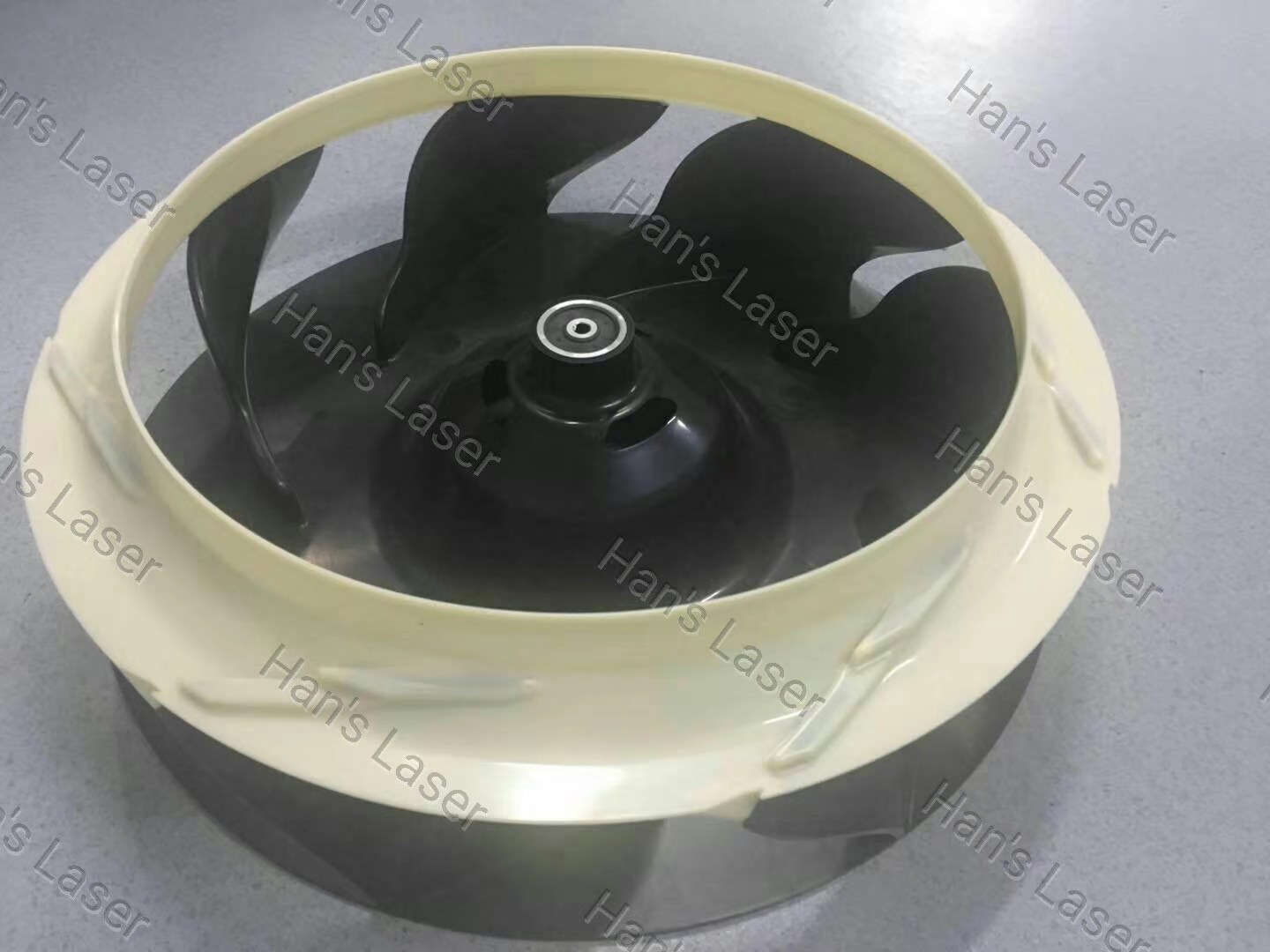

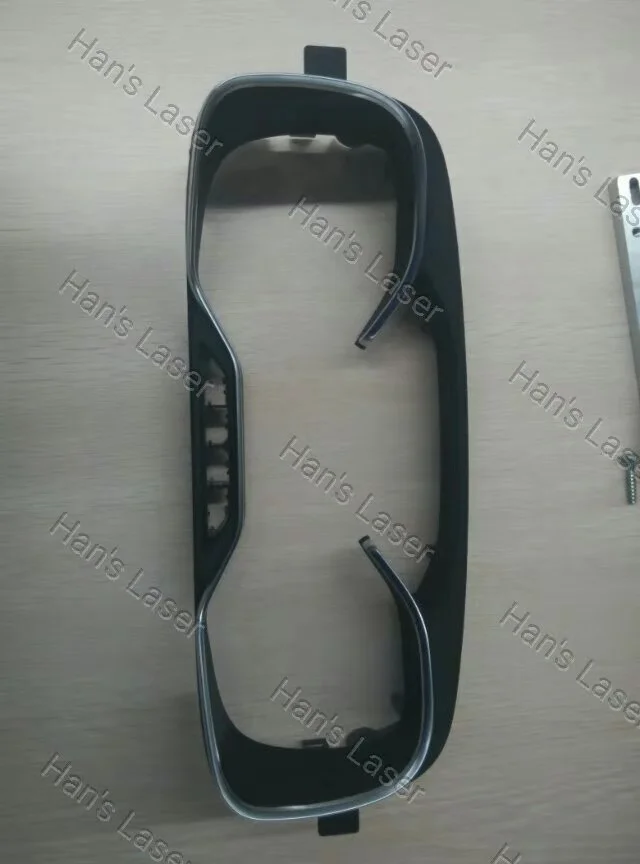

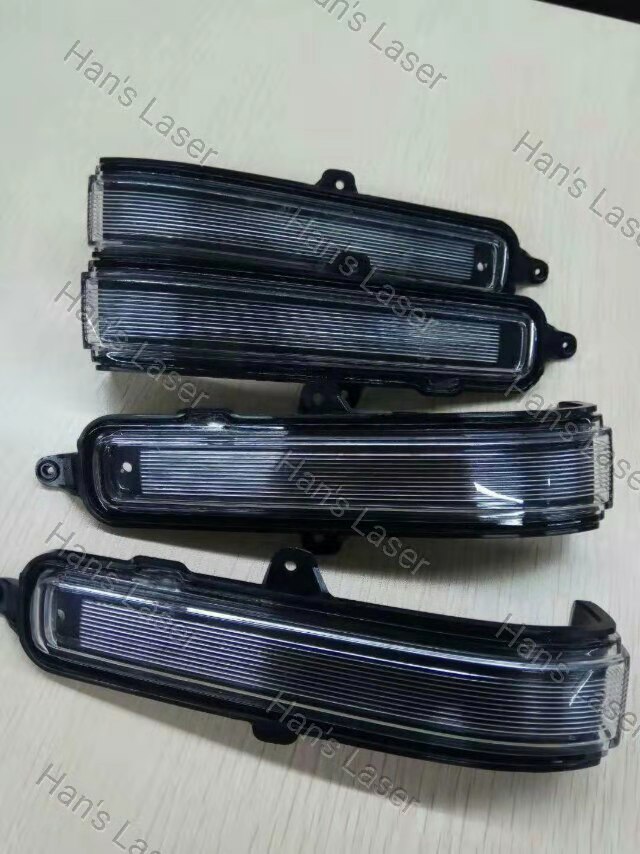

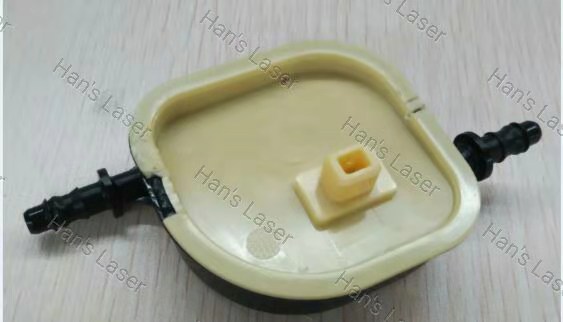

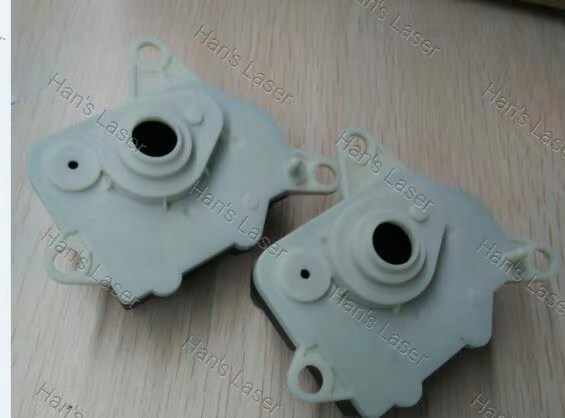

Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
Plastic welding sample
