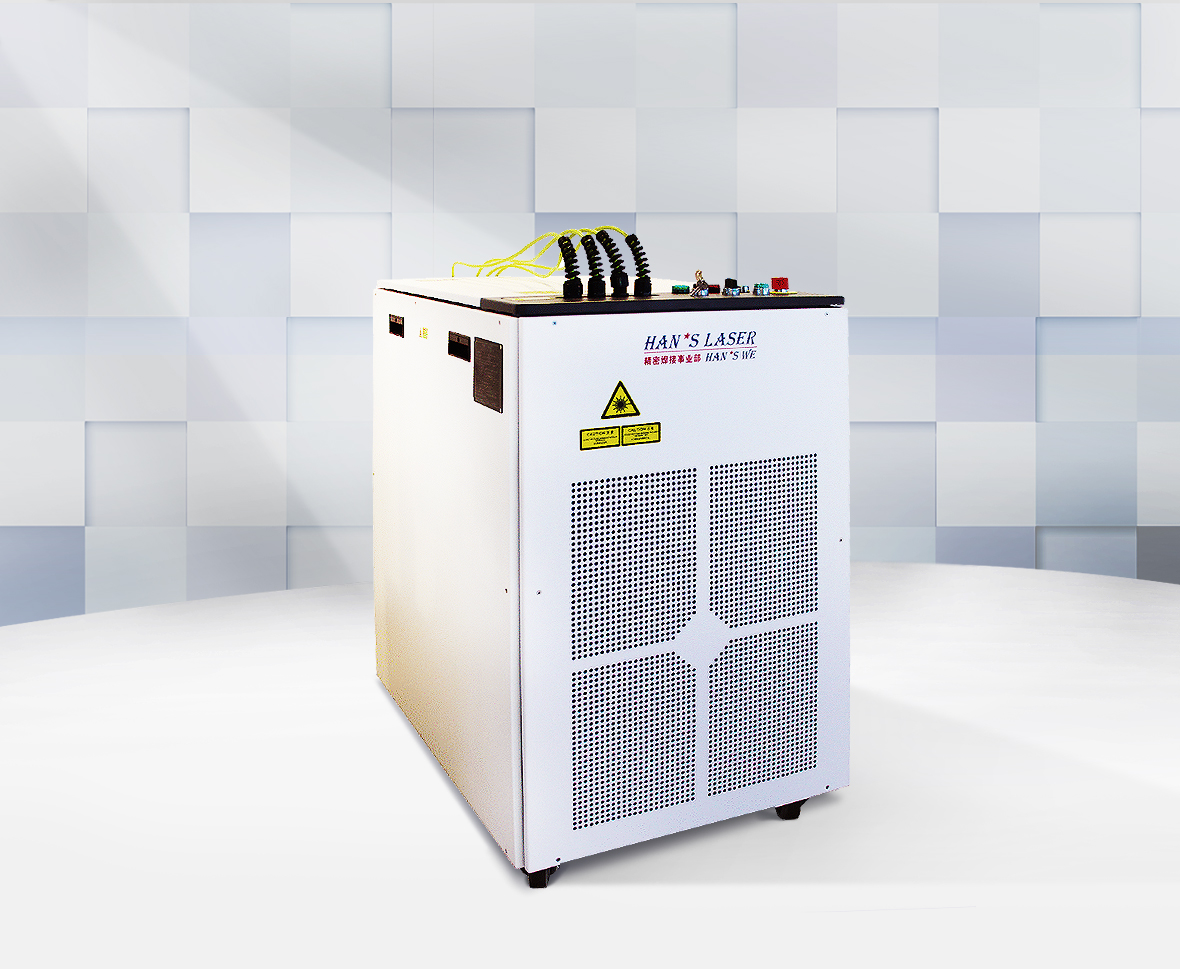

FP300
FP300

FP300

Brief Description
FP series is a new generation near-infrared semiconductor pumped fiber laser. With good beam quality, fiber transmission and high electro-optical conversion efficiency, It is mainly used for rapid welding thin materials.
Categories Fiber laser welder
Contact Us
Features:
1. High aspect ratio, thin line weld width, narrow heat affected zone, zero deformation, and fast welding speed.
2. Smooth and clean weld with or without simple process after welding.
3. High weld strength, no porosity, eliminates the impurities of the base metal.
4. The microstructure can be refined after welding, Weld strength is at least equal to or exceeds base metal strength.
5. Tiny laser spot can be precisely positioned and easily automated.
6. Suitable dissimilar metal welding.
7. Excellent for spot welding, butt welding, overlap sealing welding.

Applications:
● Battery welding, pipe welding, thin steel plate welding
● Electronic components, instrumentation, medical equipment, small metal parts welding

Material,
● Stainless Steels, Carbon Steels
● Gold & Silver, Aluminum, Tool Steels
● Nickel Alloys, Brass & Copper, Titanium
Specification:
Laser model  FP150 FP300 SFP150 SFP300
Laser wavelength  1070nm  1070nm 1070nm 1070nm
Working mode  Continuous/pulse  Continuous/pulse Continuous/pulse Continuous/pulse
Max. laser average power  Pulse 150W/ continuous 250W Pulse 300W/ continuous 300W Pulse 150W/ continuous 250W Pulse 300W/ continuous 300W
Max. laser peak power 1500W 3000W  1500W 3000W
Max. laser pulse energy  15J 30J 15J 30J
Pulse width  Pulse 0.2-50ms Pulse 0.2-50ms Pulse 0.2-50ms Pulse 0.2-50ms
Pulse frequency  ≤5000Hz ≤5000Hz ≤5000Hz ≤5000Hz
Waveform number  ≤50 groups, each group ≤16 segments ≤50 groups, each group ≤16 segments ≤50 groups, each group ≤16 segments ≤50 groups, each group ≤16 segments
Fiber output number  2 paths standard, 4 paths at most  2 paths standard, 4 paths at most  Single path  Single path
Max. beam split frequency  80Hz 80Hz —— ——
Fiber core diameter  200μm (standard) 200μm (standard) 50μm 50μm
Aiming positioning mode  Red light guide (CCD and monitor, optional) Red light guide (CCD and monitor, optional) Red light guide (CCD and monitor, optional) Red light guide (CCD and monitor, optional)
Cooling mode  Forced air cooling (its own) Forced air cooling (its own) Forced air cooling (its own) Forced air cooling (its own)
Main machine power consumption  <1.5kW <1.8kW <1.5kW <1.8kW
Power demand  220V±10%, 50/60Hz 220V±10%, 50/60Hz 220V±10%, 50/60Hz 220V±10%, 50/60Hz
Dimension  600x900x900mm 600x900x900mm 560x440x177mm 630x440x220mm
Sample

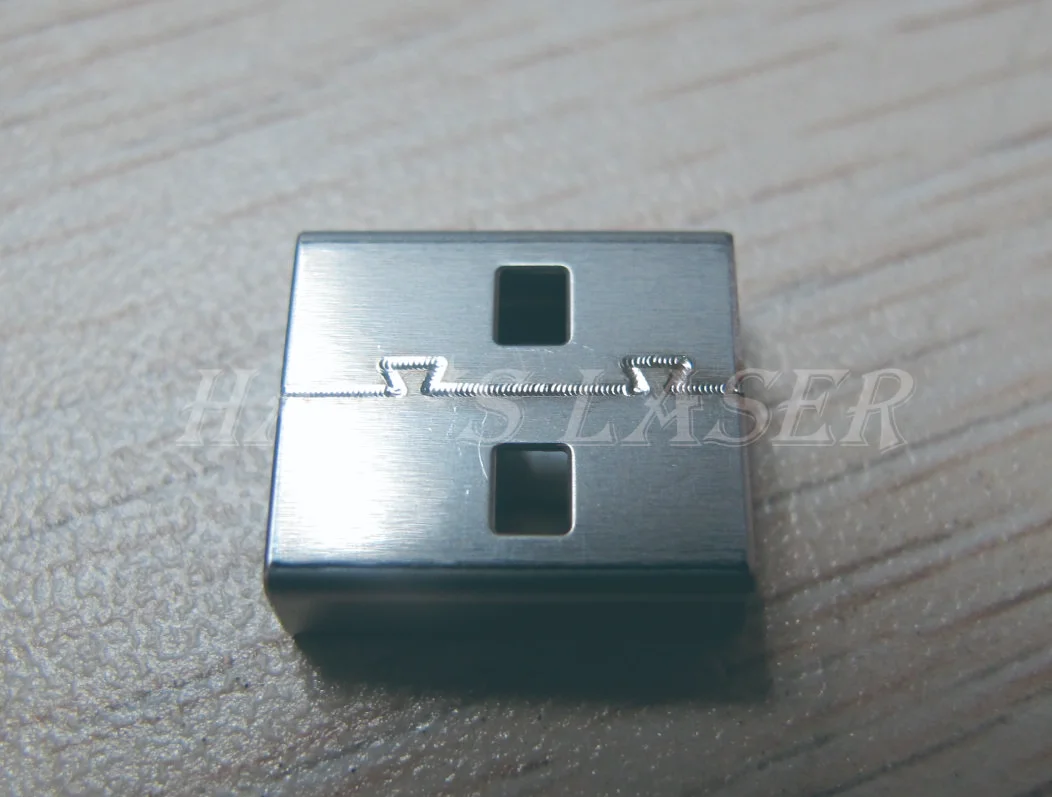

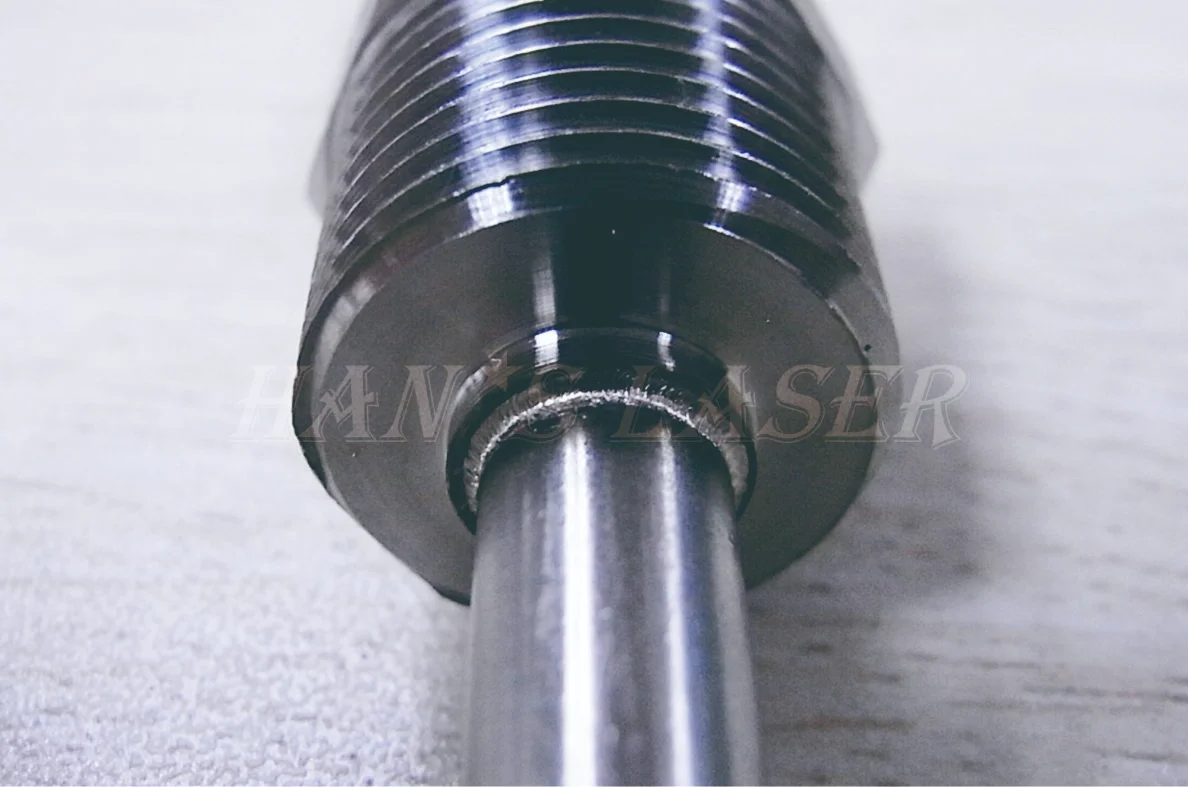

Welding sample

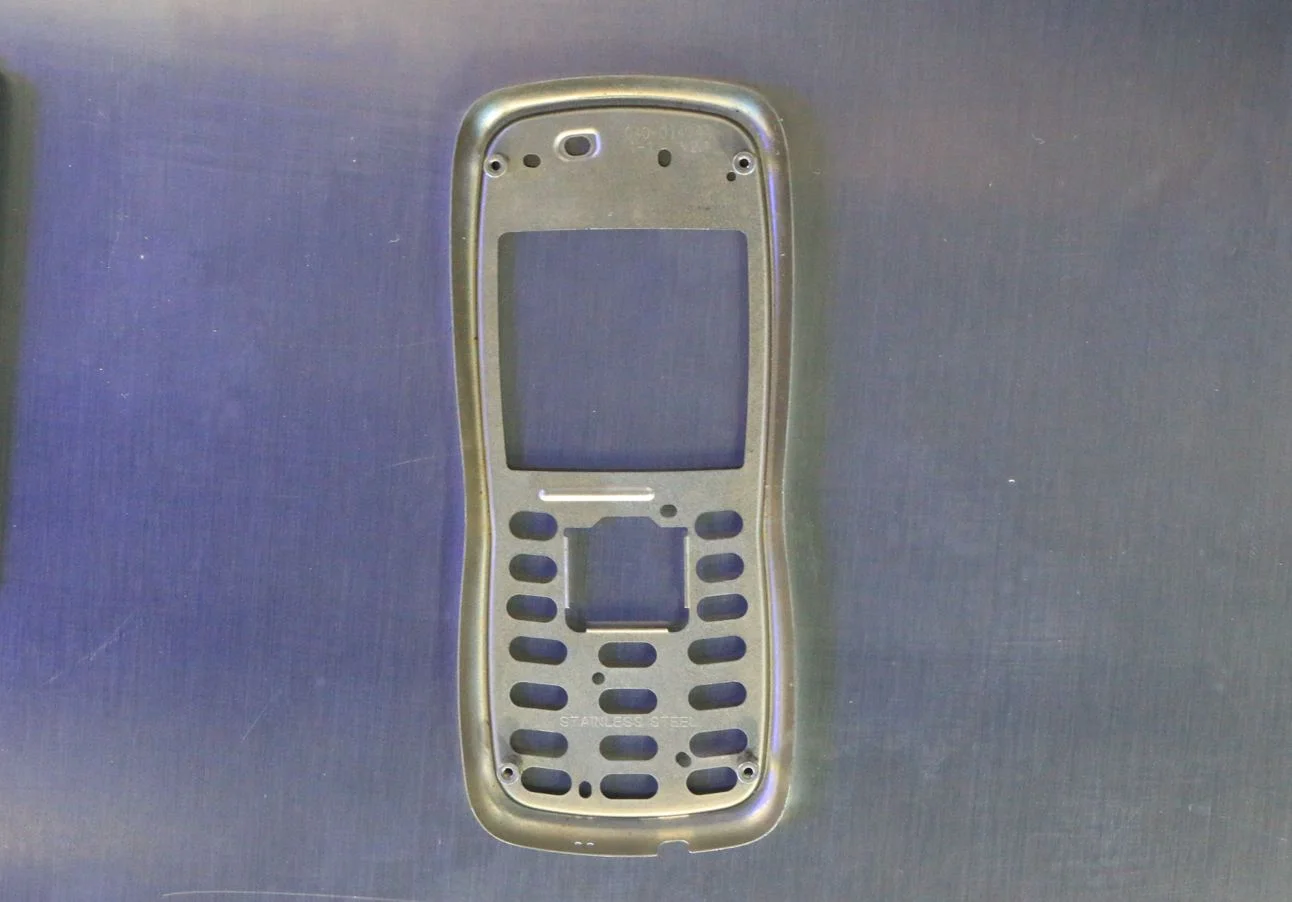

Welding sample

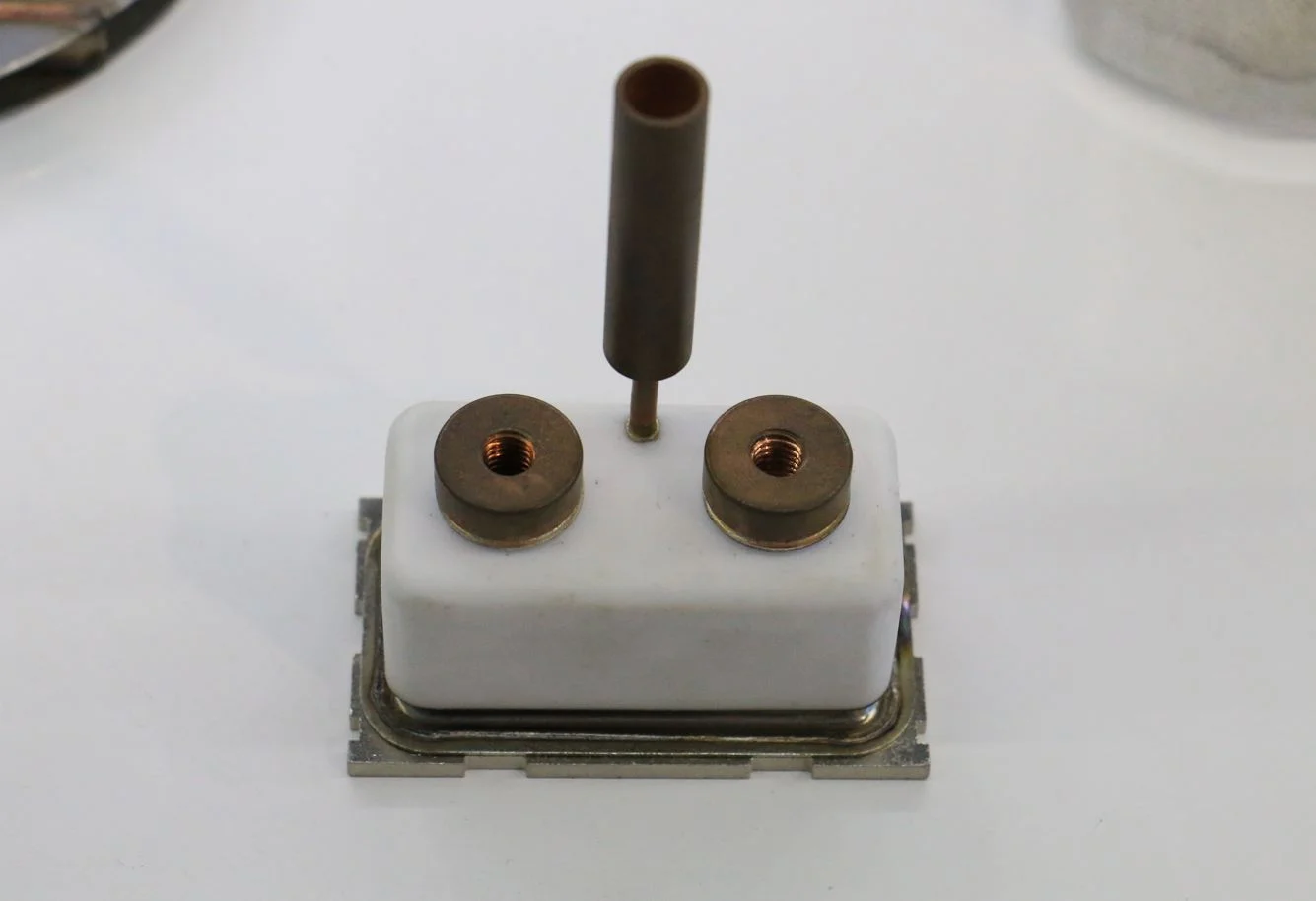

Welding sample

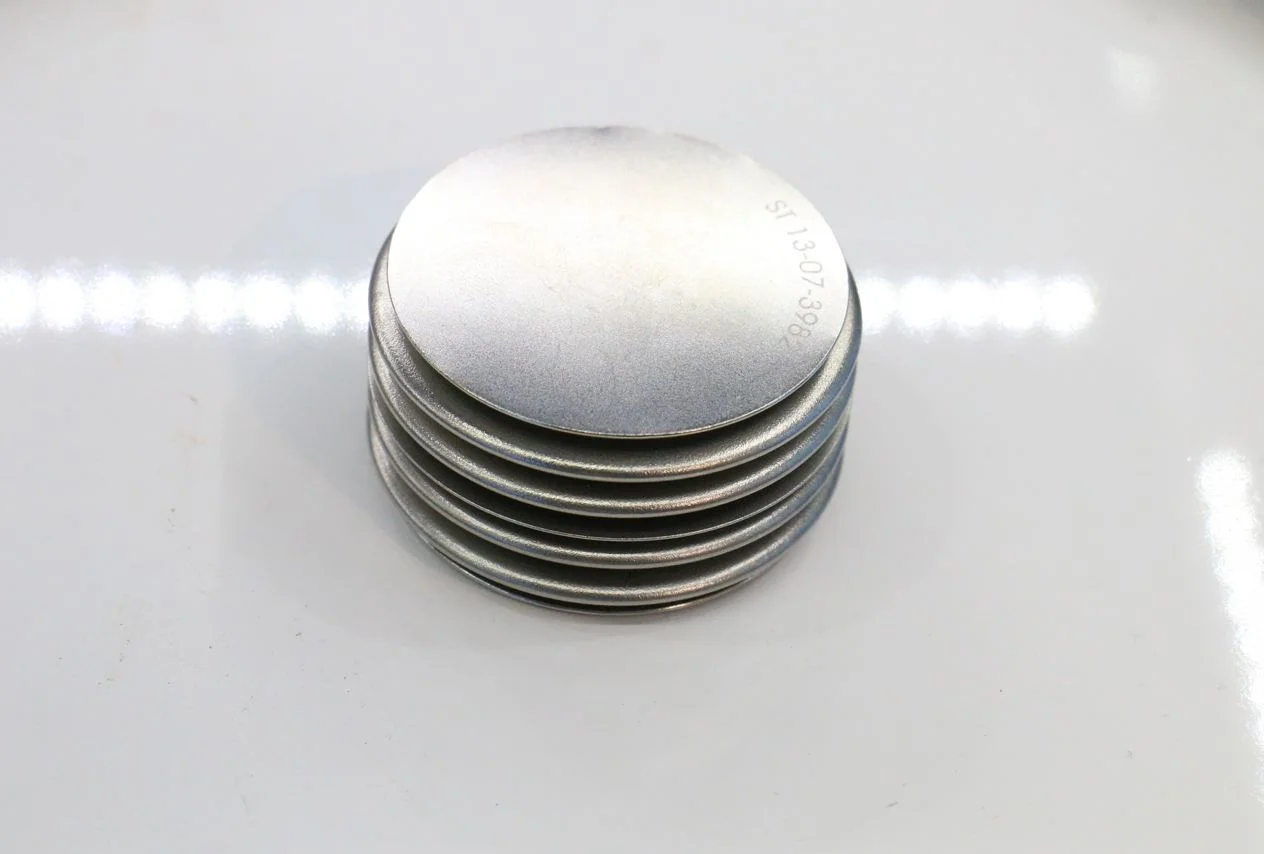

Welding sample

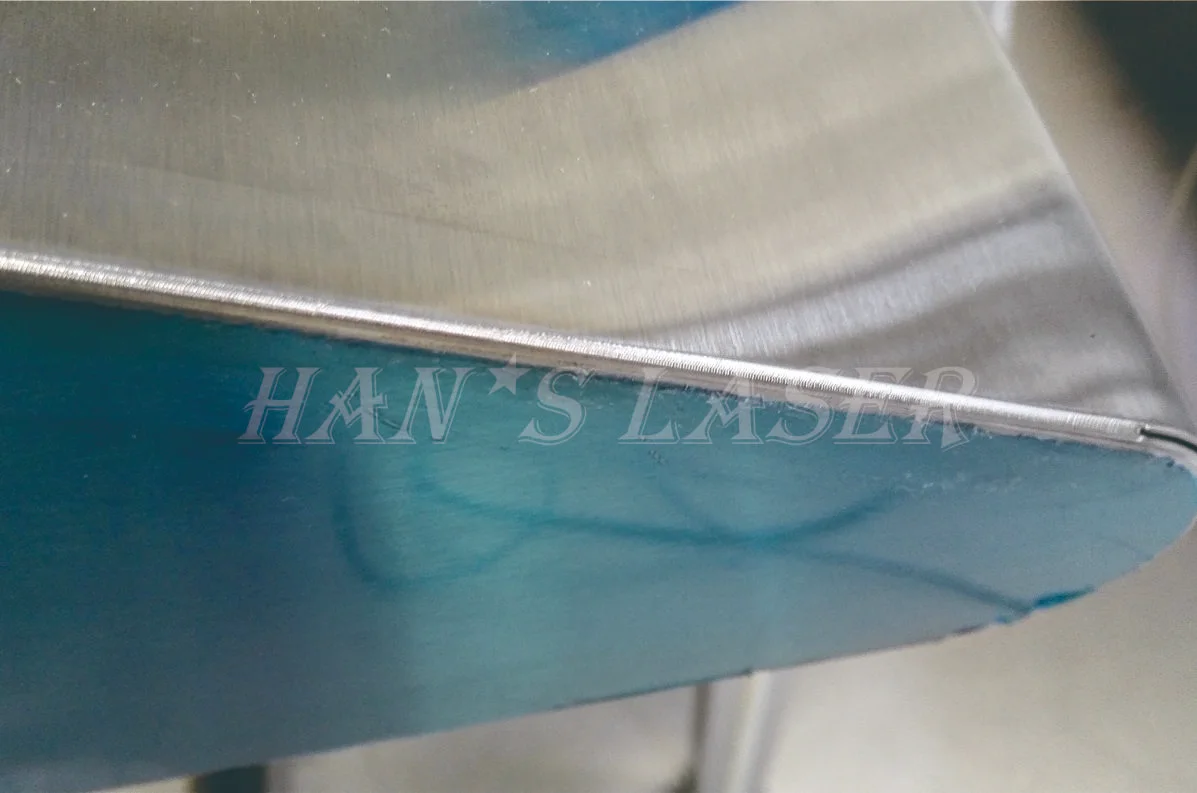

Welding sample

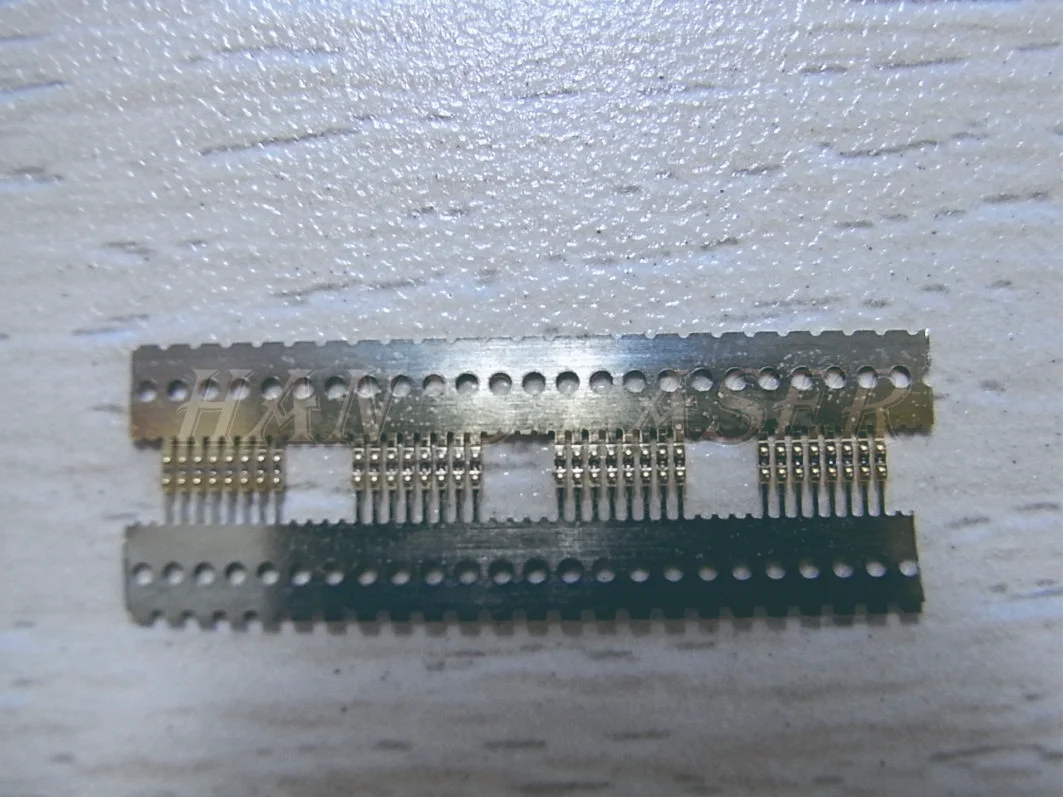

Welding sample

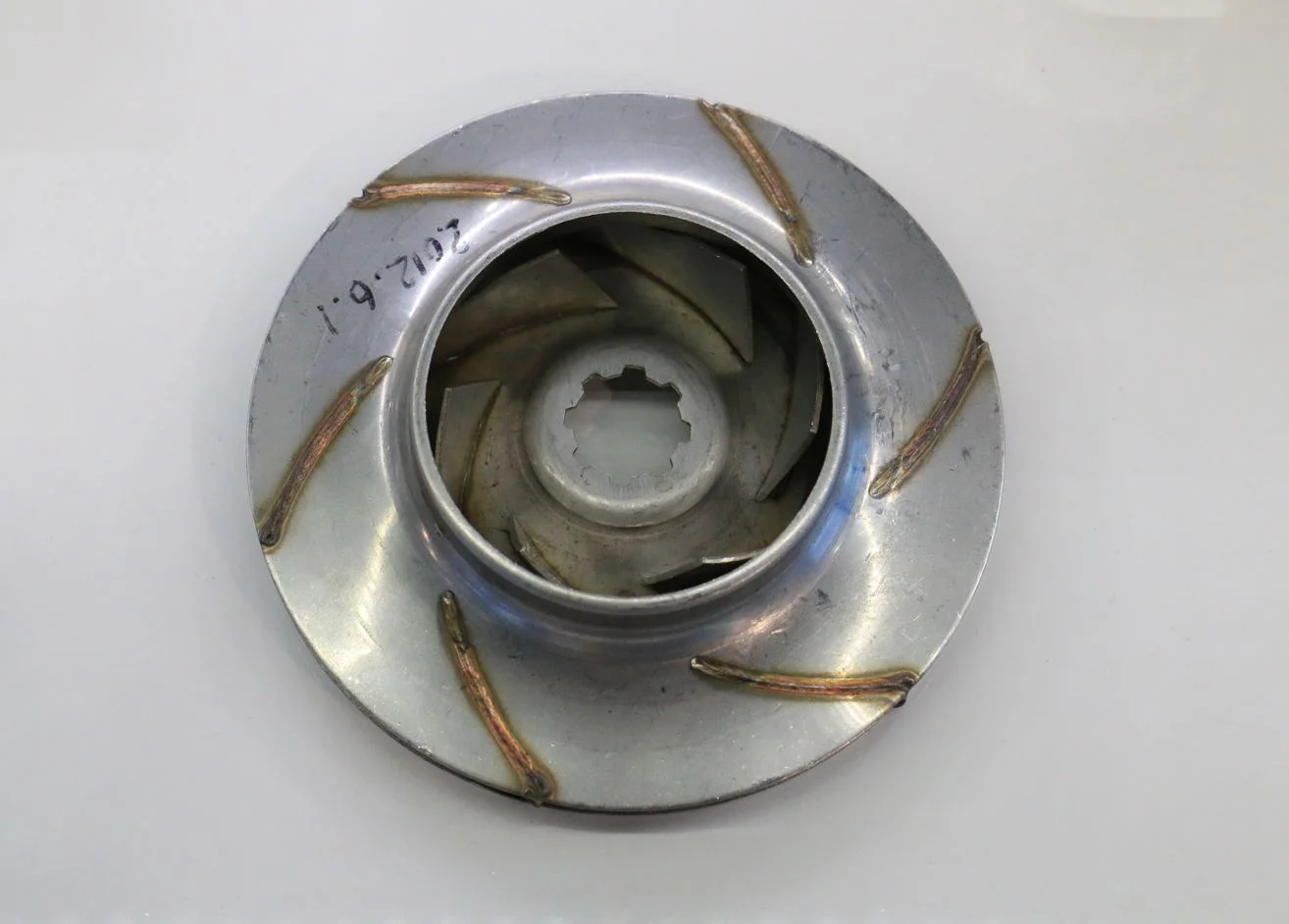

Welding sample
Welding sample
Welding sample
Welding sample
Welding sample
Welding sample
Welding sample
Welding sample
Welding sample
Welding sample
