Mainly used for laser cutting of metal sheet, such as stainless steel, plain carbon steel plate, aluminum plate, etc.;
Can be used to cut aluminum oxide, aluminum nitride ceramics.
Cutting Product Industry:
IT industry products, such as laptops, mobile
Features:
1. Marble machine base, AIO sealed structure.
2. Adopt linear motor to drive.
3. Adopt high-precision, mute, anticorrosive guide rail to drive.
4. Adopt fiber laser device, cutting head.
5. HAN’S LASER Cutting Software.
2. Adopt linear motor to drive.
3. Adopt high-precision, mute, anticorrosive guide rail to drive.
4. Adopt fiber laser device, cutting head.
5. HAN’S LASER Cutting Software.
Specification:
| No. | Item | Parameter |
| 1 | Laser wavelength | 1070nm |
| 2 | Laser power | 150W |
| 3 | X / Y / Z axis itinerary | 300/300/80mm |
| 4 | X/Y axis repeated positioning accuracy | ±0.002mm |
| 5 | Z axis repeated positioning accuracy | ±0.03mm |
| 4 | Equipment Dimensions: L * W * H | 1450*1450*1800mm (for your reference only) |
| 5 | Machine weight | 2100kg (for your reference only) |
| 6 | Power demand (fluctuation <± 5%) | Single phase 220V，50/60HZ,50A |
| 7 | Total machine Power | 5.5KW |
| 8 | Relative humidity | 45%-75% |
| 9 | Ambient temperature | 20℃-30℃ |
Sample

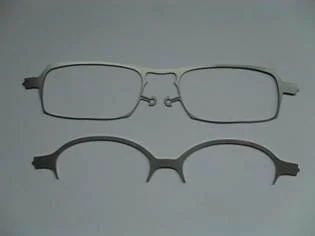

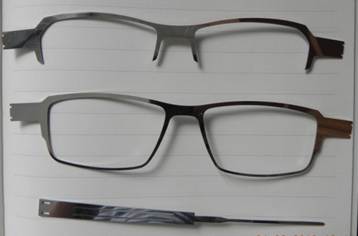

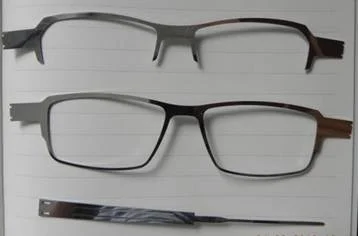

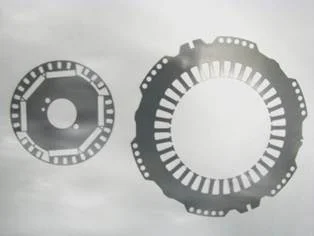

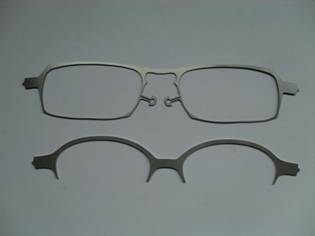

Cutting sample
Cutting sample
Cutting sample
Cutting sample
Cutting sample
Cutting sample
