Single-module Series 500-3000W CW Fiber Laser
Brief Description
Laser cutting, laser welding, laser cladding, laser cleaning, additive manufacturing, etc.
Categories
CW Fiber Laser
Contact Us
Product description

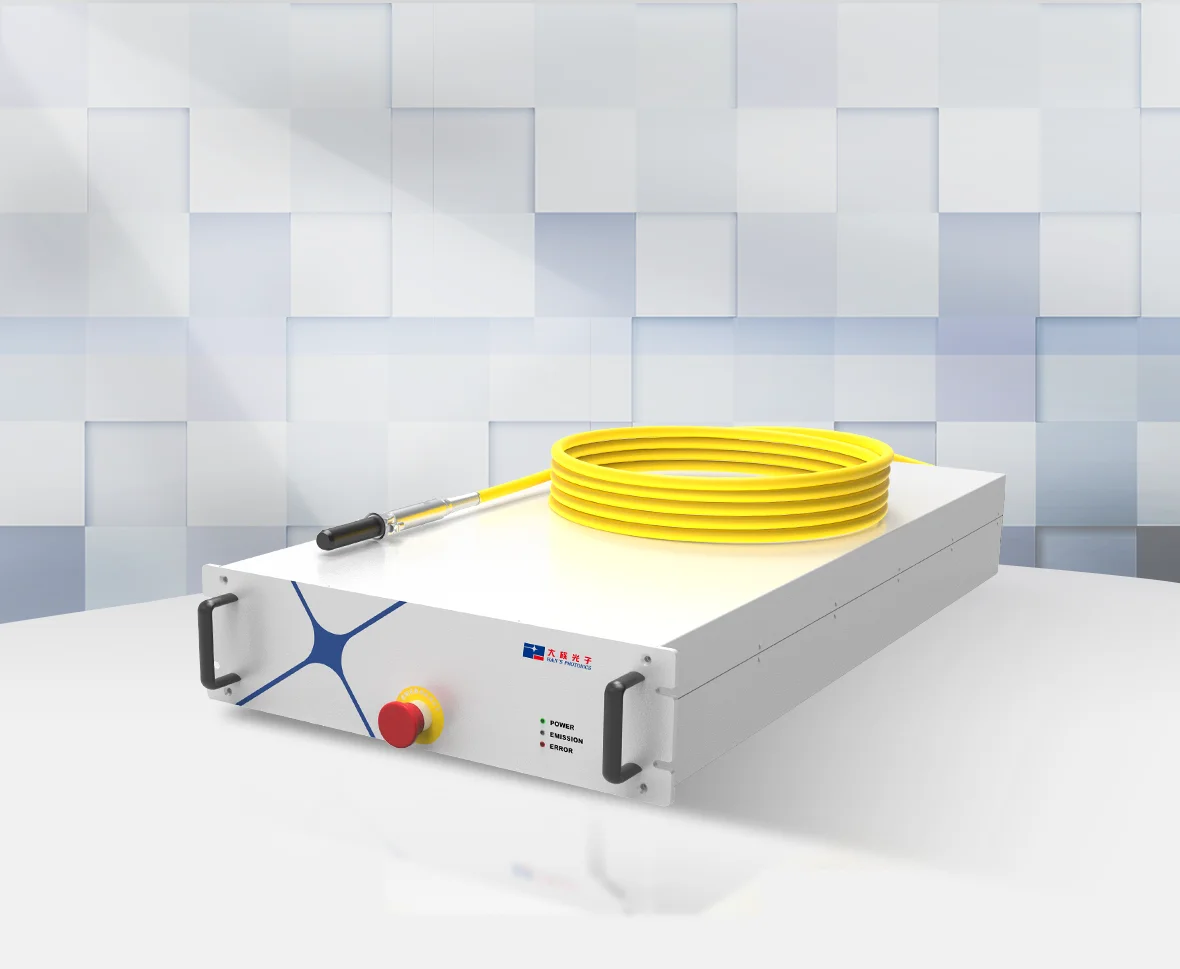

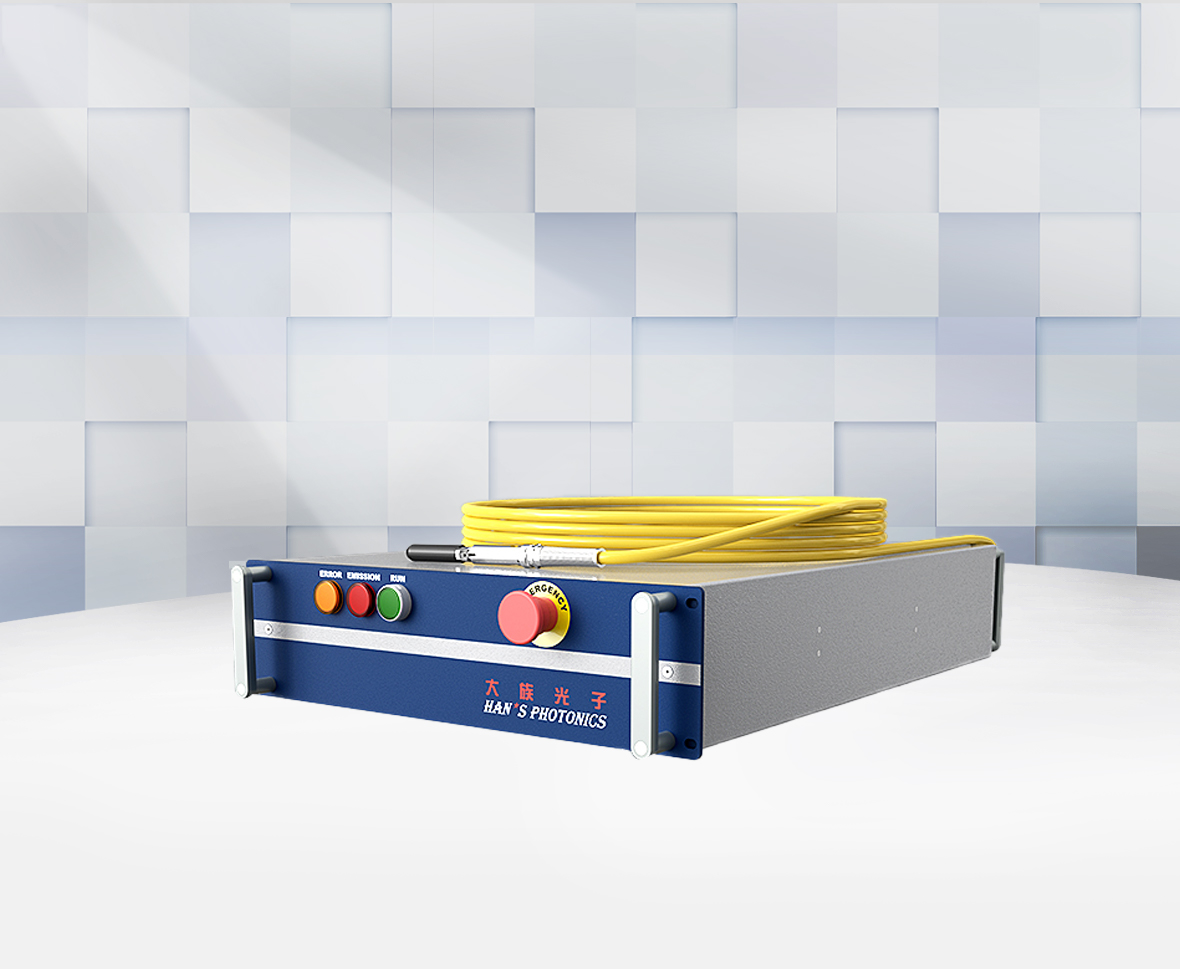

Han's Photonics Single-Module Continuous Fiber Lasers is compact and lightweight, equipped with a newly-designed module, which has higher photoelectric conversion rate and can pump more energy. It's equipped with a new generation of self-developed electric control system, making the equipment more compatible and easier to operate. It has real-time internal monitoring and fast data feedback response, with pulse modulation response in the micro second range. It's also equipped with Han's laser expert-level application analysis and multiple beam quality options to furthest promote the performance of the laser. Let us be your laser application expert!
Product features
1. 976nm Pumping technology, and photoelectric conversion rate up to 40%;
2. Integrated optical-and-electric module, and practical cabinet design;
3. Efficient and steady cutting performance for either thin or thick plates;
4. Leading anti-reflection capability, no need to worry about processing high-reflection material.
Han's Photonics Single-Module Continuous Fiber Lasers is compact and lightweight, equipped with a newly-designed module, which has higher photoelectric conversion rate and can pump more energy. It's equipped with a new generation of self-developed electric control system, making the equipment more compatible and easier to operate. It has real-time internal monitoring and fast data feedback response, with pulse modulation response in the micro second range. It's also equipped with Han's laser expert-level application analysis and multiple beam quality options to furthest promote the performance of the laser. Let us be your laser application expert!
Product features
1. 976nm Pumping technology, and photoelectric conversion rate up to 40%;
2. Integrated optical-and-electric module, and practical cabinet design;
3. Efficient and steady cutting performance for either thin or thick plates;
4. Leading anti-reflection capability, no need to worry about processing high-reflection material.
| MODLE | HSC-500 | HSC-1000 | HSC-1500 | HSC-2000 | HSC-3000 | HSC-4000 | HSC-6000 | HSC-8000 | HSC-12000 | ||
| Output Power | W | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 12000 | |
| Wave Length | nm | 1080±5 | |||||||||
| 3DB Bandwidth | nm | 5±1 | 6±1 | ||||||||
| Power Range | % | 10-100 | |||||||||
| Power Stability | % | ±1 | |||||||||
| Max. Modulation Frequency | kHz | 5 | |||||||||
| Operation Mode | Continuous / Modulated | ||||||||||
| Polarization Mode | Random | ||||||||||
| Optical Interface | QCS/QBH | QBH | |||||||||
| Delivery Fiber Length | m | 5 (Can be customized) | 15 (Can be customized) | 20 (Can be customized) | |||||||
| Operating Voltage | 220V | 380V | |||||||||
| Control Mode | External control interface / Network interface card | ||||||||||
| Dimension | mm | 600*448*120（Excluding handles) | 910*448*120 （Excluding handles) | 910*448*120 （Excluding handles) | 950*448*2454 （Excluding handles) | ||||||
| Weight | kg | ＜35 | ＜40 | ＜45 | ＜70 | ＜80 | ＜160 | ||||
| Cooling | Water cooling | ||||||||||
