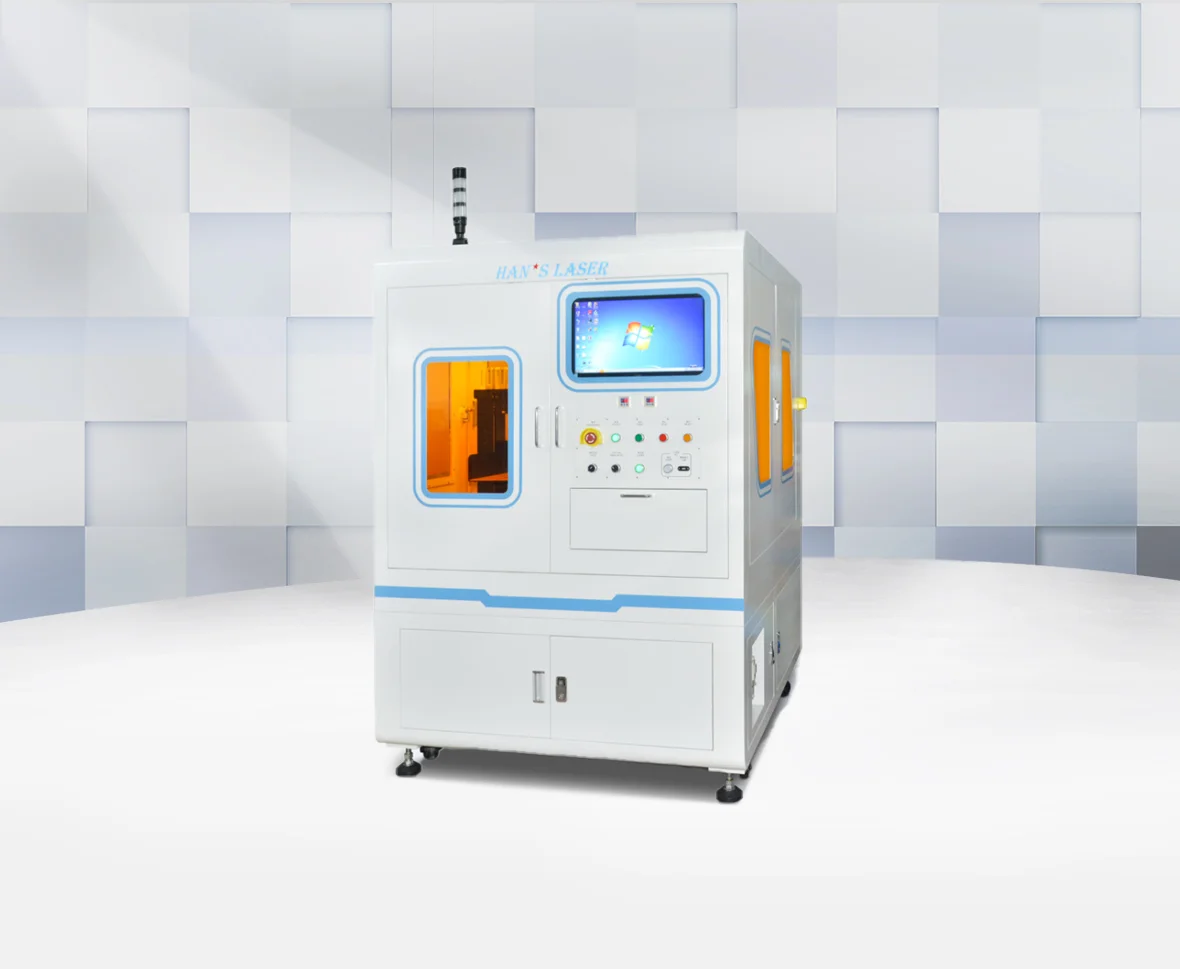

The equipment can realize automatic loading and unloading for stacked FPC, automatic positioning and marking, automatic code reading and proofreading, automatic transfer of film or separation paper ;
Double vehicle processing, fast station switching and
Characters:
The equipment can realize automatic loading and unloading for stacked FPC, automatic positioning and marking, automatic code reading and proofreading, automatic transfer of film or separation paper ;
Double vehicle processing, fast station switching and efficient processing.
Application：
It is applied to the marking of tracing information such as copper foil, FPC steel sheet, PI, CVL, barcode, QR code and characters of FPC soft board in the fields of mobile digital products, wearable devices, automotive electronics and so on.
The equipment can realize automatic loading and unloading for stacked FPC, automatic positioning and marking, automatic code reading and proofreading, automatic transfer of film or separation paper ;
Double vehicle processing, fast station switching and efficient processing.
Application：
It is applied to the marking of tracing information such as copper foil, FPC steel sheet, PI, CVL, barcode, QR code and characters of FPC soft board in the fields of mobile digital products, wearable devices, automotive electronics and so on.
|
Model |
HDZ-FPC4530D |
|
Laser type |
Green laser, UV laser, fiber laser |
|
Range of laser BOX |
50mm*50mm |
|
Adapt to substrate size |
100mm*100mm-300mm*450mm |
|
Adapt to substrate thickness |
0.036mm-1.6mm |
|
Process way |
one side |
|
Final machining position accuracy |
±0.1mm（CCD location） |
|
Supported file format |
Dxf、Plt |
|
Cooling mode |
Air cooling / Water cooling |
|
Supported system |
Can be connected to MES/IMS/PMS/ERP system |
|
Overall dimension |
1300mm*1600mm*2200mm |
Sample
