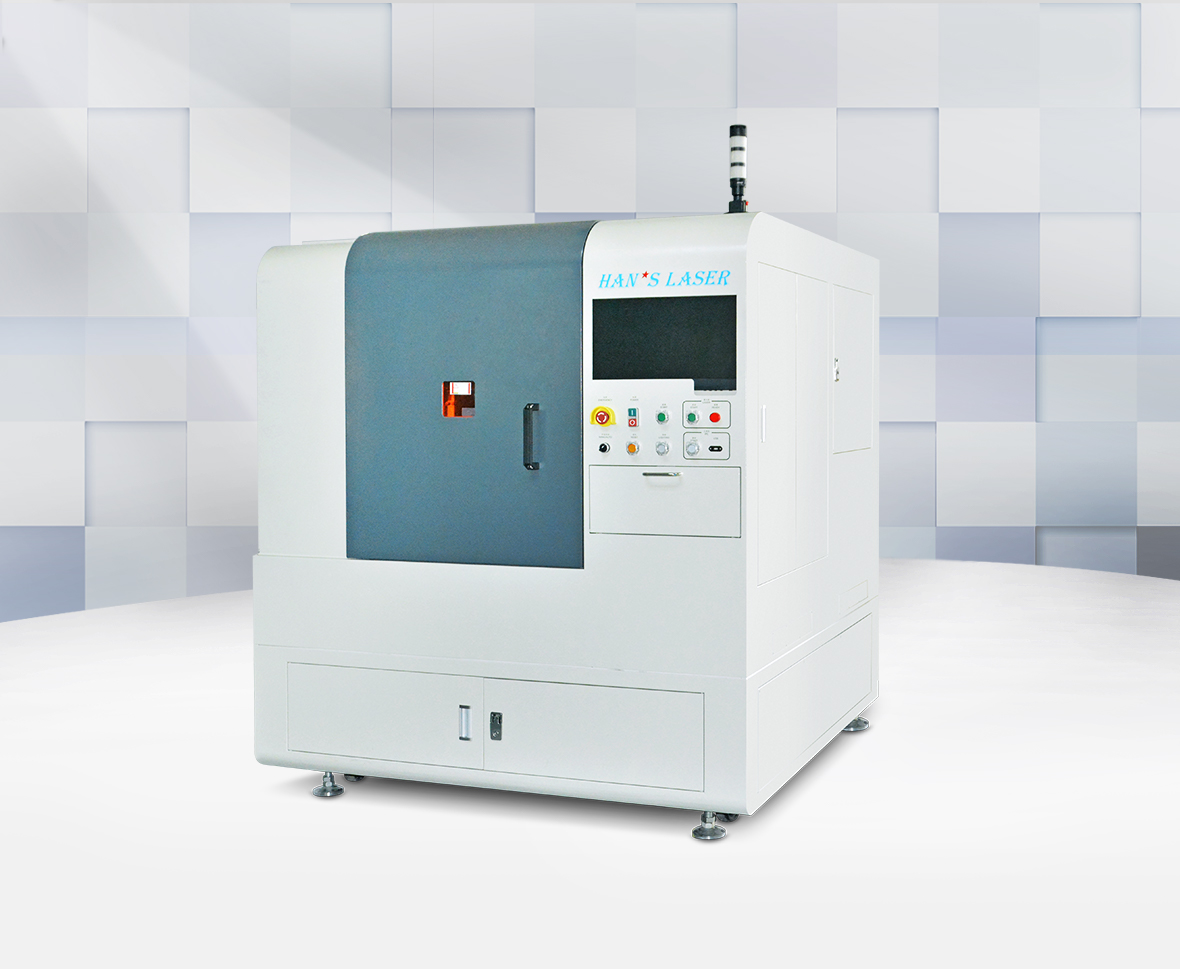

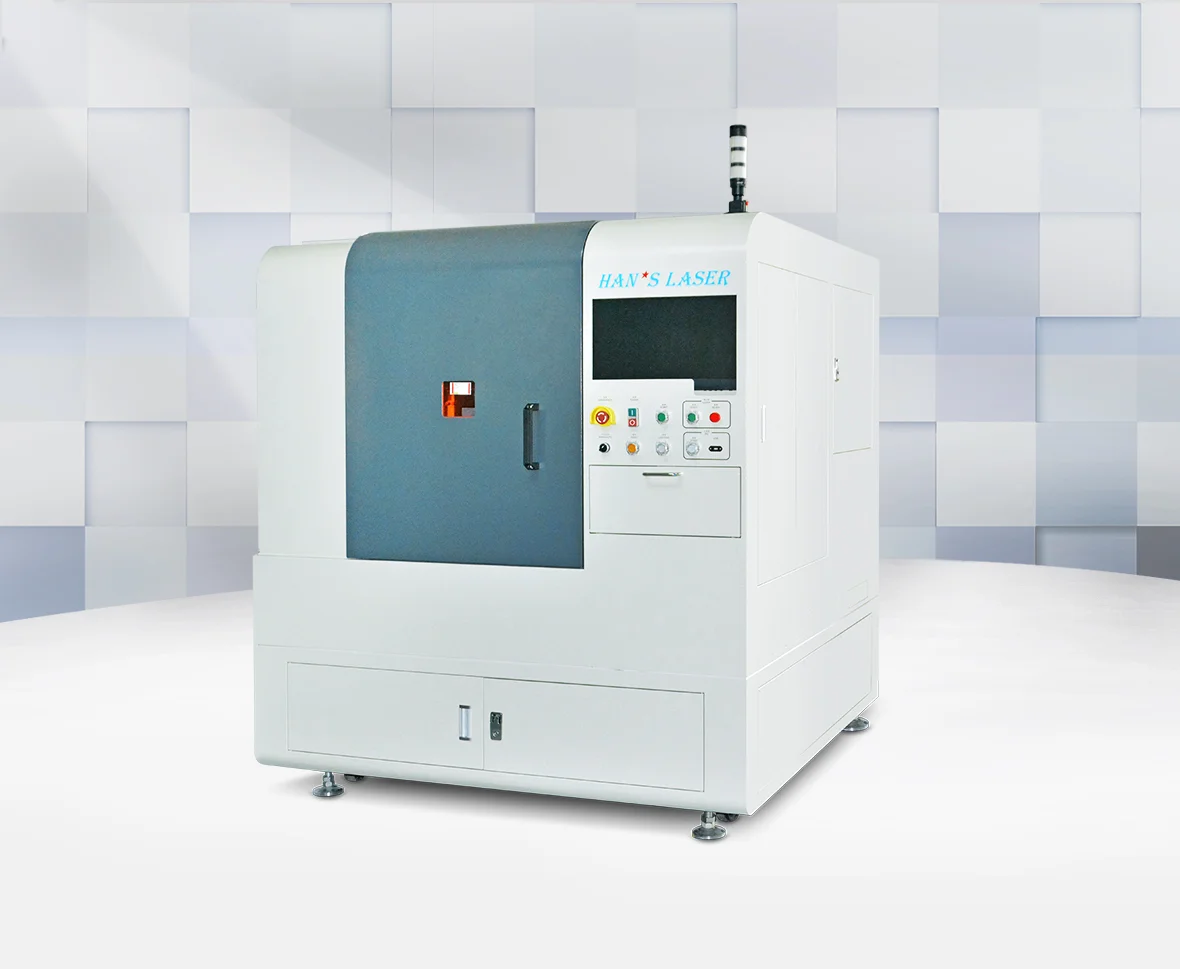

Ultrafast Glass Cutting and Drilling Machine HDZ-GCF3000
Ultrafast Glass Cutting and Drilling Machine HDZ-GCF3000
Brief Description
1、Glass thickness: 0.1-1.2mm
2、Edge breakage size: <0.005mm
3、Processing speed: 4s/pcs, 115*60mm, R5mm,DOL<50µm, T=0.7mm Corning
4、Non-contact processing, little damage to the material, high cutting precision.
Categories Precision cutting
Contact Us

Features :

1、Glass thickness: 0.1-1.2mm

2、Edge breakage size: <0.005mm

3、Processing speed: 4s/pcs, 115*60mm, R5mm,DOL<50µm, T=0.7mm Corning

4、Non-contact processing, little damage to the material, high cutting precision

5、Layering 3d cutting, used for cutting non-tempered glass and tempered glass

6、The action time of single laser spot is short, the heat-affect- ed zone is small, and no broken glasses are produced.

7、It can be used with linear motor together to cut in a high speed and high efficiency



Application areas:

Applicable for the high-speed specially-shaped cutting of glass and sapphire with DOL<50µm, cover plate glass of mobile phone, protective lens of camera, cover plate of Home key, and optical lens.

Overall technical parameter
  Processing scope 150X150mmAutomatic);
300X250mmManual
Platform repeated positioning precision ±1μm
  Platform dynamic positioning precision ±3μm
  Max. moving speed of platform 1000mm/s
  CCD positioning precision ±0.01mm
  Machine weight 3.5T
   Cutting thickness 0.7mmonce
   Edge breakage value 10μm
Laser technical parameter
Laser type Infrared picosecond
Wavelength 1064nm
Power 20W
Pulse width <10ps
Cooling mode Water cooling
Laser power supply 380V, 3PH, 8kW
Sample
Sapphire camera cutting
TFT Notch cutting

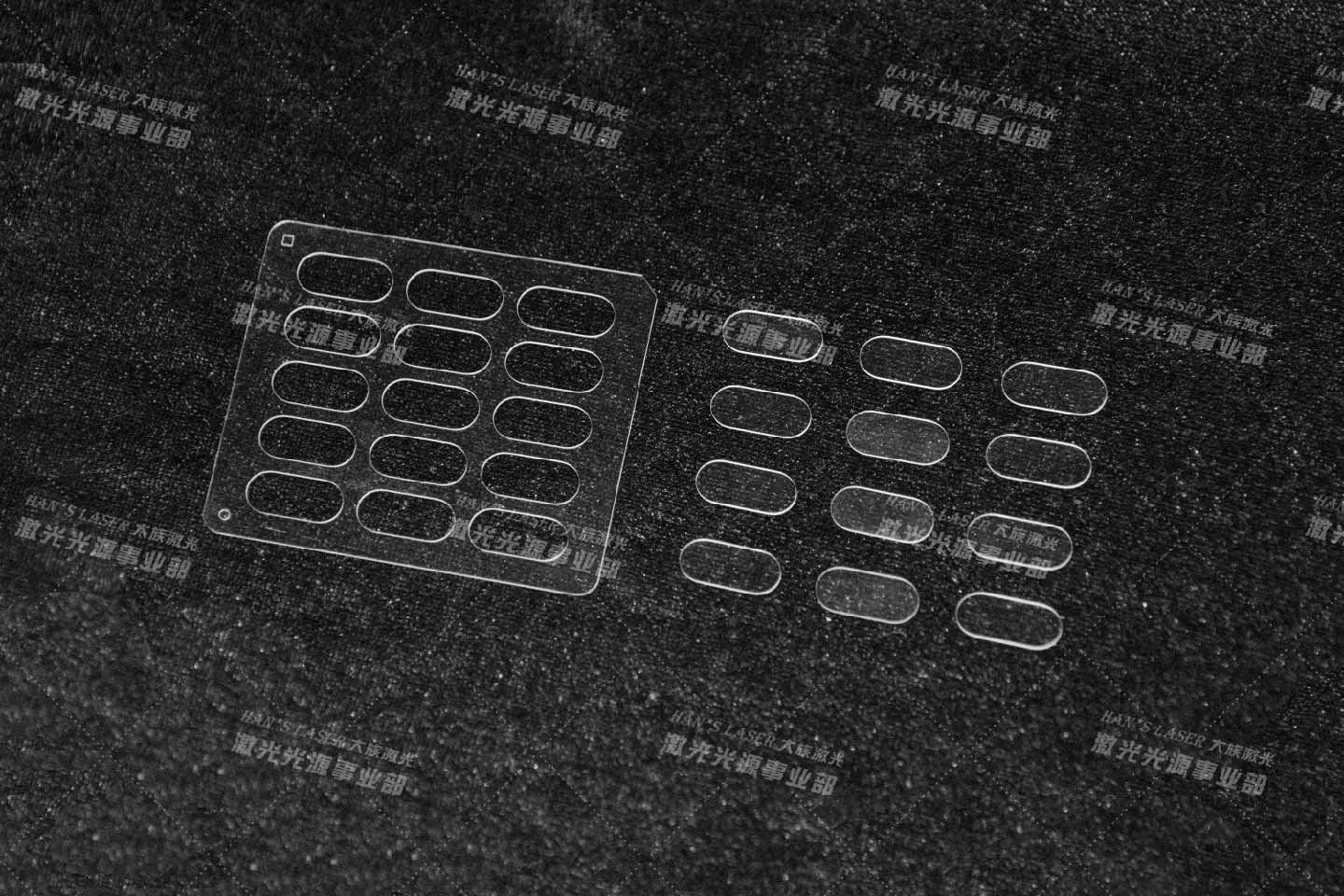

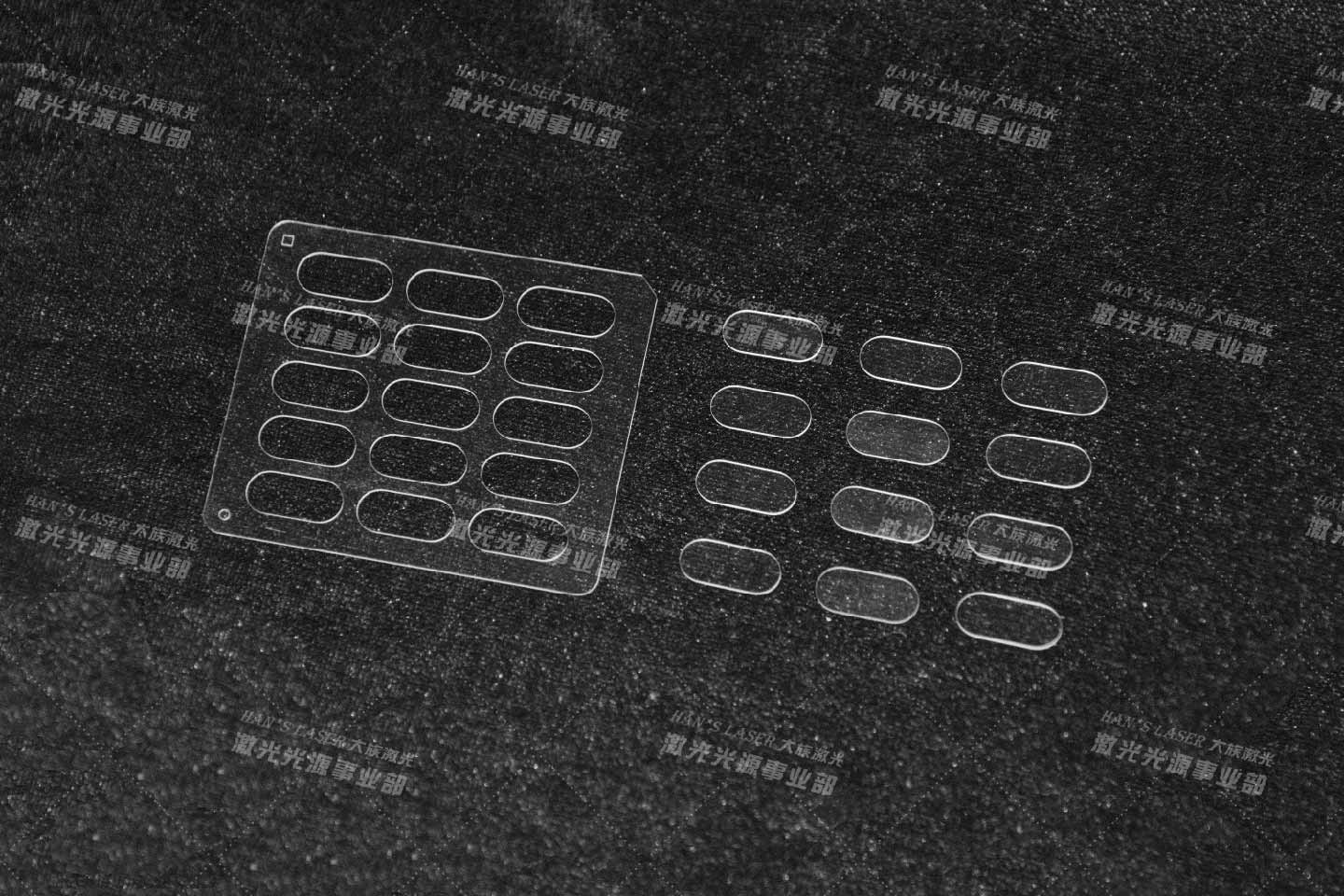

Camera glass cover cutting

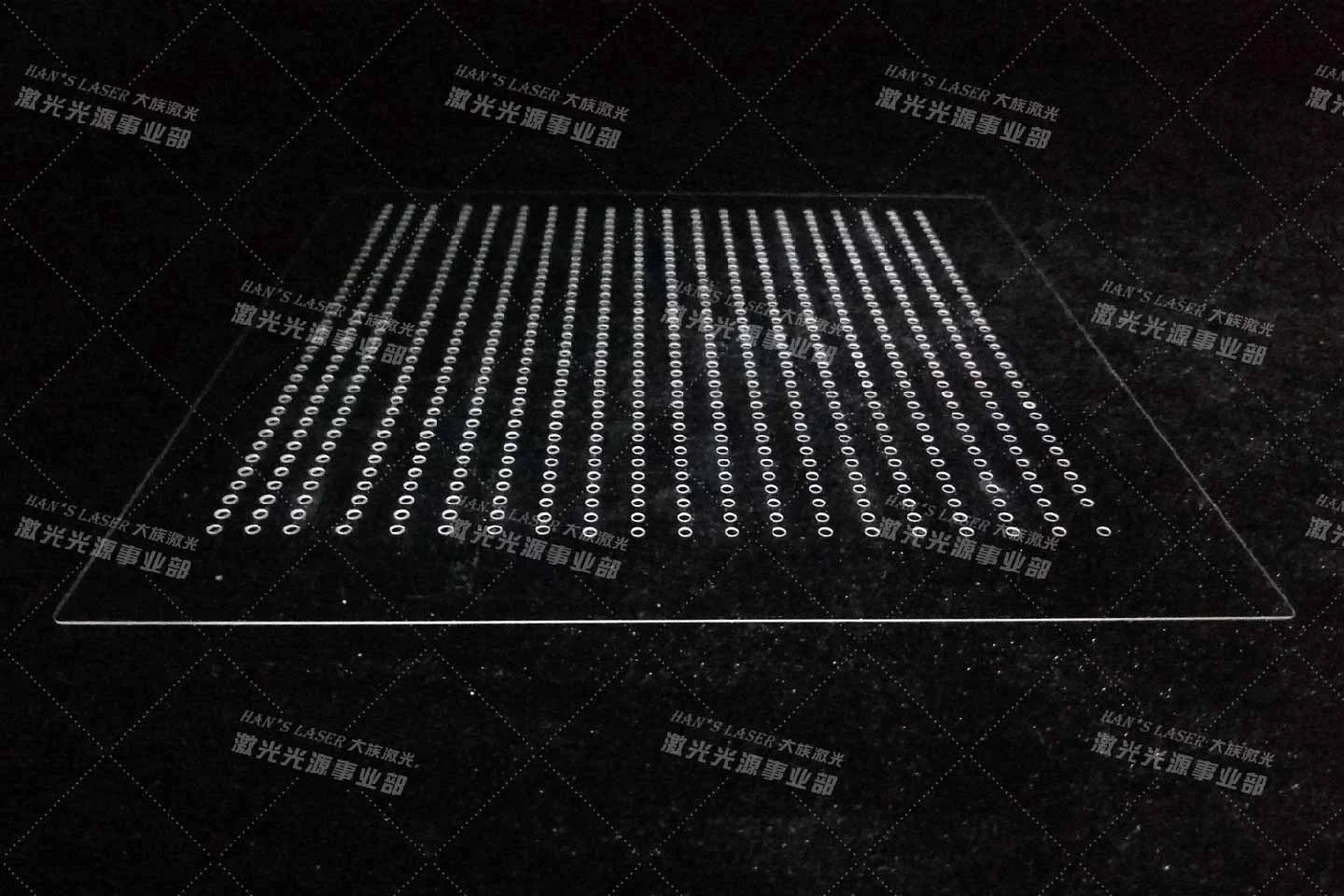

0.7mm glass drilling φ2.0mm
