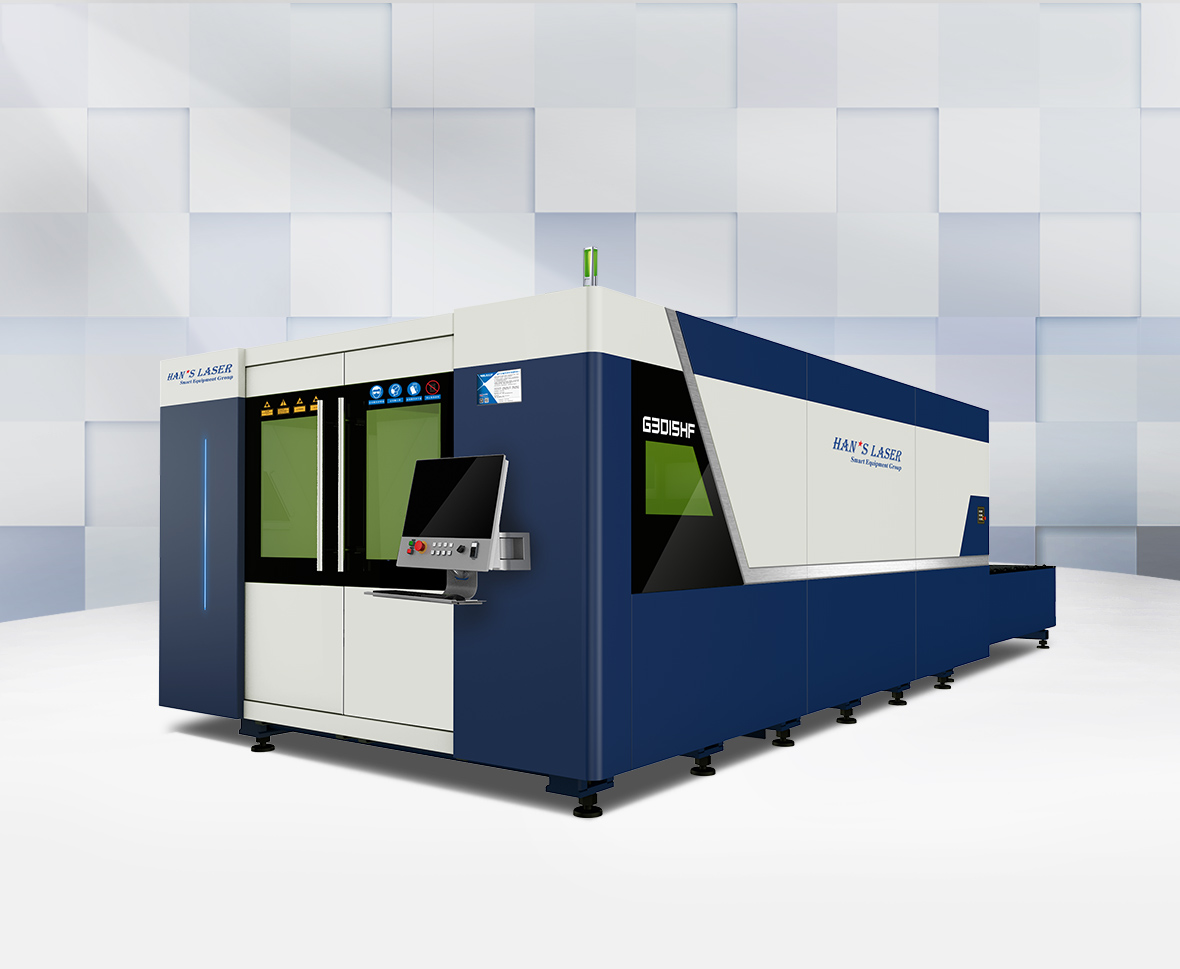

HF Series Fiber Laser Cutting Machine
HF Series Fiber Laser Cutting Machine
HF Series Fiber Laser Cutting Machine
Brief Description
HF fiber laser cutting machine is a well-established product innovated by Han’s Laser Smart Equipment Group.
Categories Sheet metal cutting
Contact Us
Features:
Stable operation
HF series fiber cutting machine takes full advantage of the optical fiber transmission. The laser is directly transmitted from the laser to the cutting head of the machine tool through the optical fiber. The mechanical structure is simple, the optical path is constant, the maintenance is basically maintenance-free, and the cutting performance is stable.

Reliability & Safety
Safe-oriented design. The machine is full-cover with metal protector, safety door control system, considering both of vision and safety. A typically module and redundancy structure laser source adapts to constant operation, 24/7 manufacturing is a legend anymore.

Eco-machine
Without extreme consumption of carbon dioxide, nitrogen, and helium; electricity-light convention can reach up to 30%, saves more for environment.

International standard
CE certification owned G3015HF series machine sold to Europe, North and East Asia, and highly praised by European and American market. Over 5000 sets machines running on the market, 70% in domestic market. The large production makes a Han’s Laser a world top company.

Specification:
Technical data G3015HF G4020HF G6020HF G6025HF
Working Area & Range Working Area 3000mm×1500mm 4000mm×2000mm 6000mm×2000mm 6000mm×2500mm
X axis 3050mm 4030mm 6030mm 6030mm
Y axis 1525mm 2020mm 2020mm 2520mm
Z axis 120mm 120mm 300mm 300mm
Accuracy X/Y axis
positioning accuracy
±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
X/Y axis
repositioning accuracy
±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. speed X/Y axis
positioning speed
200m/min 200m/min 180m/min 160m/min
X/Y
max acceleration
2.8G 2.8G 2.5G 2.1G
Weight & Dimensions Max.weight work-piece 900kg 1600kg 2900kg 3600kg
Weight 10000Kg 14000Kg 18000Kg 20000Kg
Length x Width x Height [1] 9081mm×2993mm×2155mm 11230mm×3470mm×2320mm 14900mm×3470mm×2320mm 14900mm×4020mm×2320mm

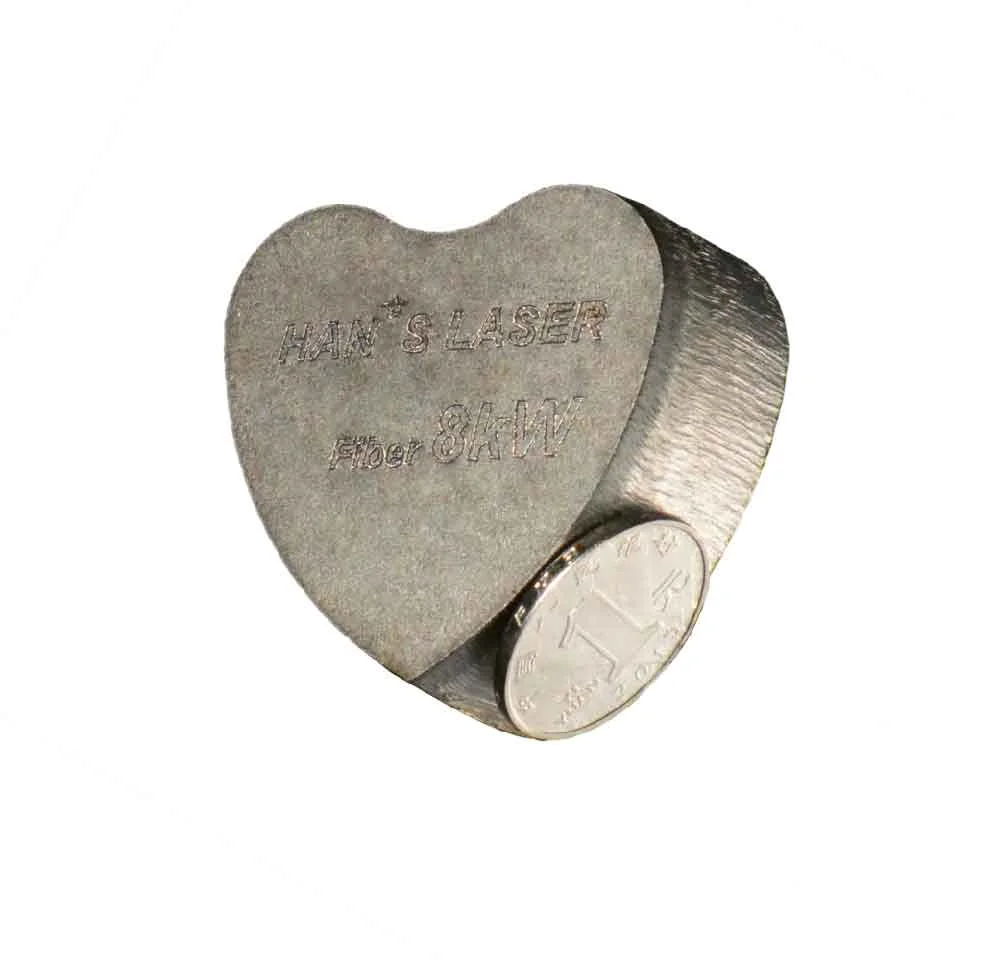

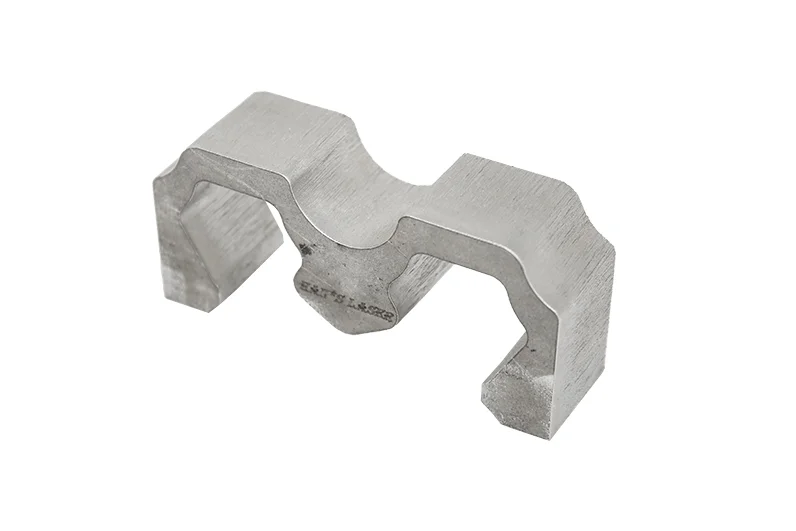

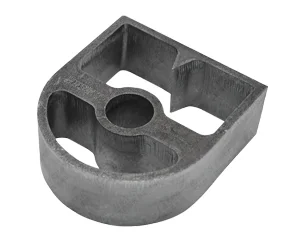

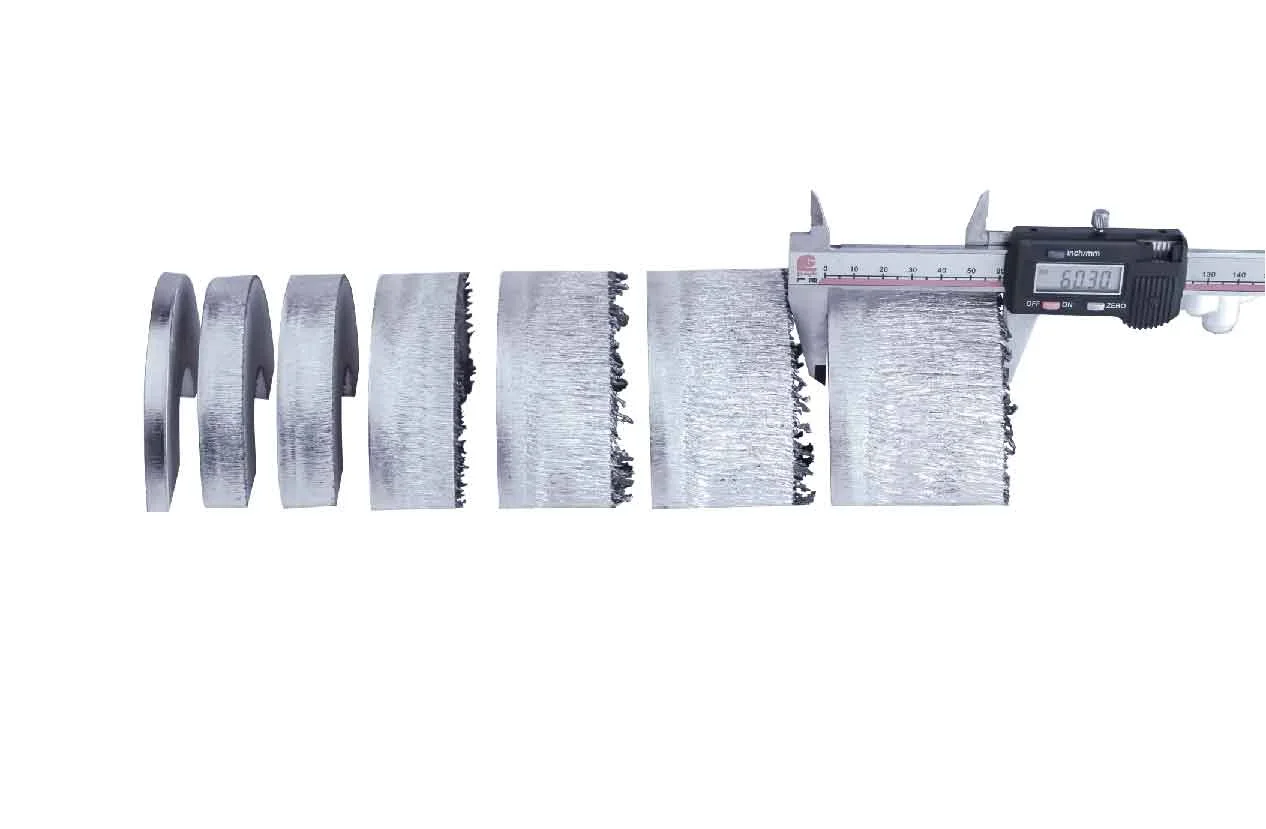

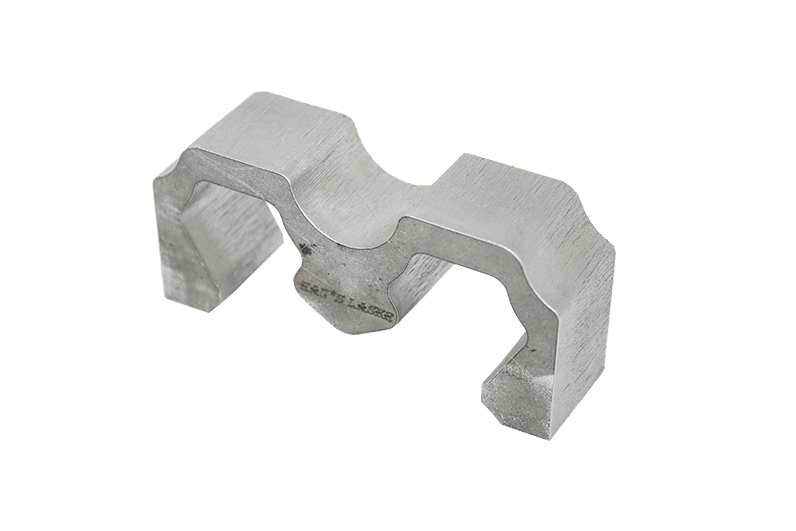

Sample
12KW cutting sample
25mm stainless steel
30mm aluminium alloy

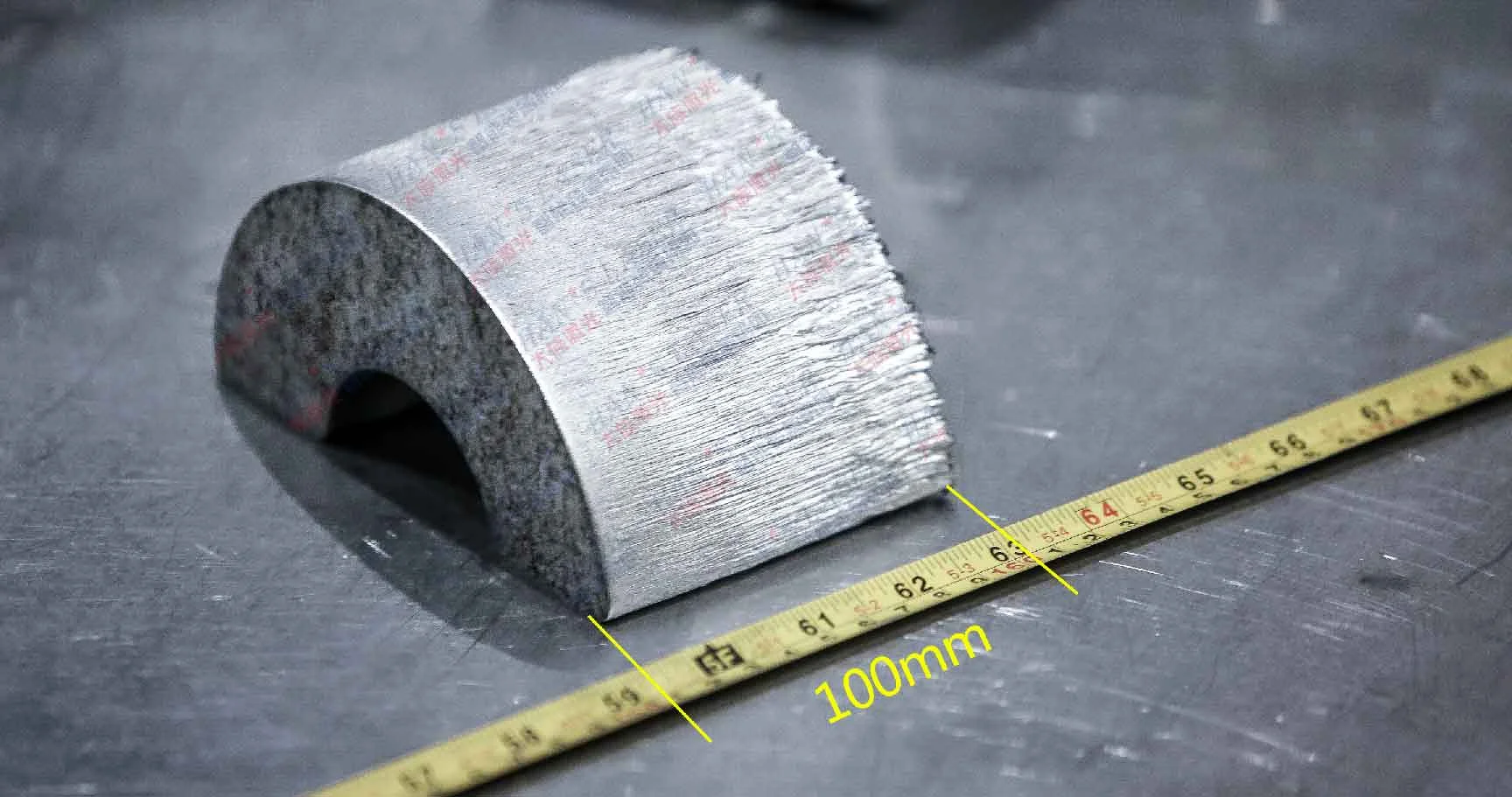

20kw cutting sample
