1.Realize X, Y, Z motion control in three directions;
2.Real-time controls the rotation of the laser and changes of processing tilt angle;
3. By setting different combination of processing parameters, users can realize various irregular drilling.
Application:
1.Automobile Industry—fuel spray nozzle

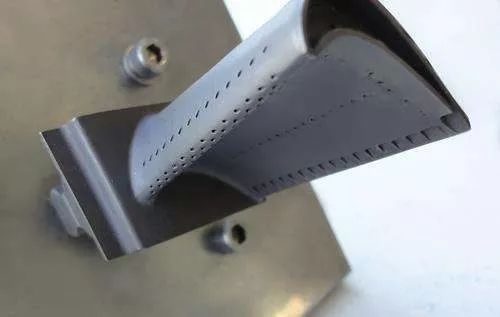

2.Aerospace Industry—turbine blade film hole
3.Electric Industry---Electric probe card
4.Watch Industry---Gear machining, Dial plate micro-hole inlay
5.Medical field---Heart stent cutting
2.Aerospace Industry—turbine blade film hole
3.Electric Industry---Electric probe card
4.Watch Industry---Gear machining, Dial plate micro-hole inlay
5.Medical field---Heart stent cutting
Features:
1. By setting multi-dimensional parameters in control software, to form the machining path, and output any irregular shape and any taper drilling.
2. Realize the optical quality of the processed inner wall Ra<0.1μm.
3. Equipped with coaxial high-pressure air blowing device and annular dross suction device to facilitate dross discharge.
4. High precision linear motion platform with repeatability of ±0.002 mm.
5. Optional coaxial image observation, real-time monitoring module of power
2. Realize the optical quality of the processed inner wall Ra<0.1μm.
3. Equipped with coaxial high-pressure air blowing device and annular dross suction device to facilitate dross discharge.
4. High precision linear motion platform with repeatability of ±0.002 mm.
5. Optional coaxial image observation, real-time monitoring module of power
Sample
square hole

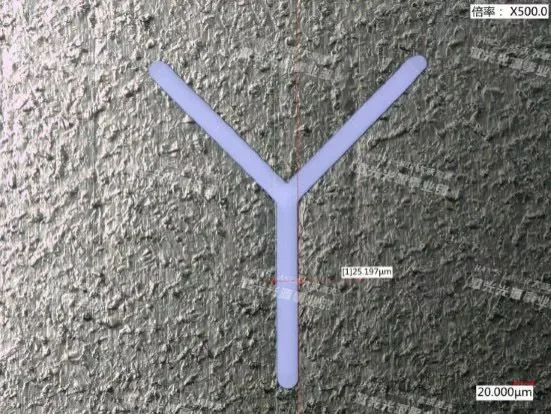

Y type heterotypic hole

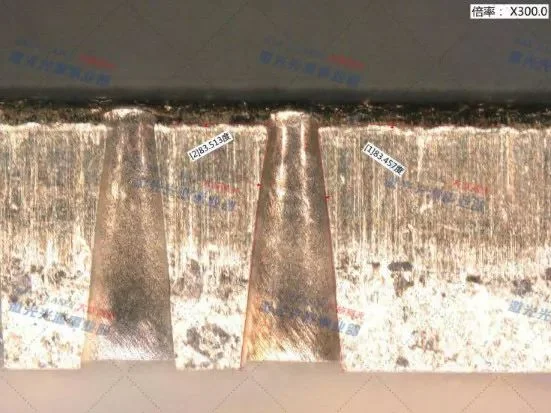

Negative taper hole

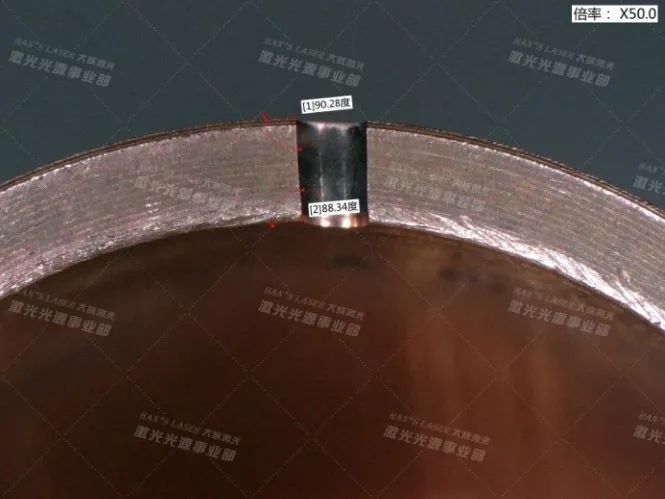

Zero taper hole
curved surface drilling

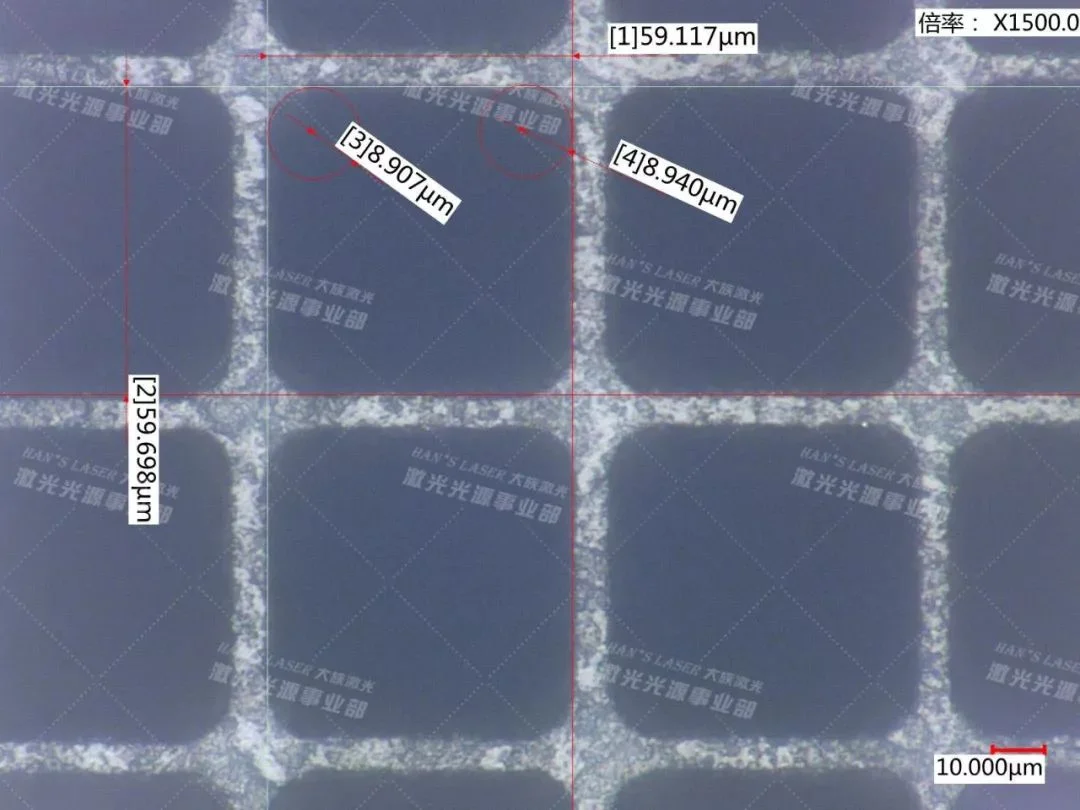

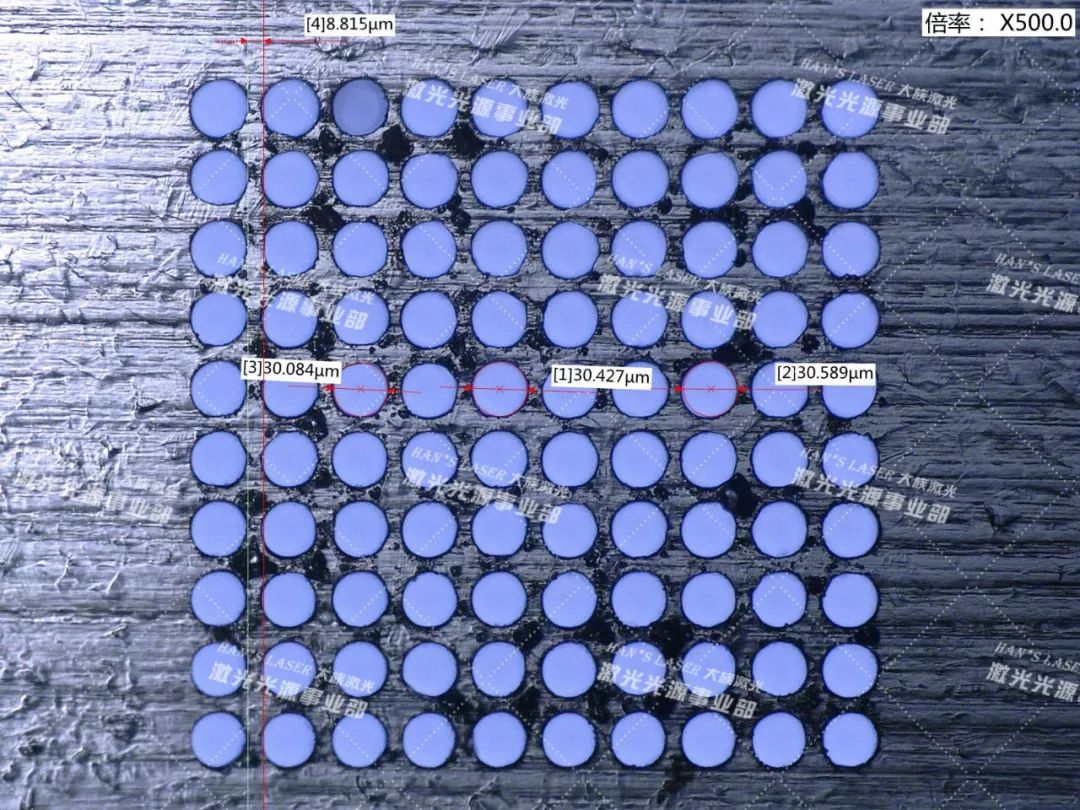

Microporous matrix

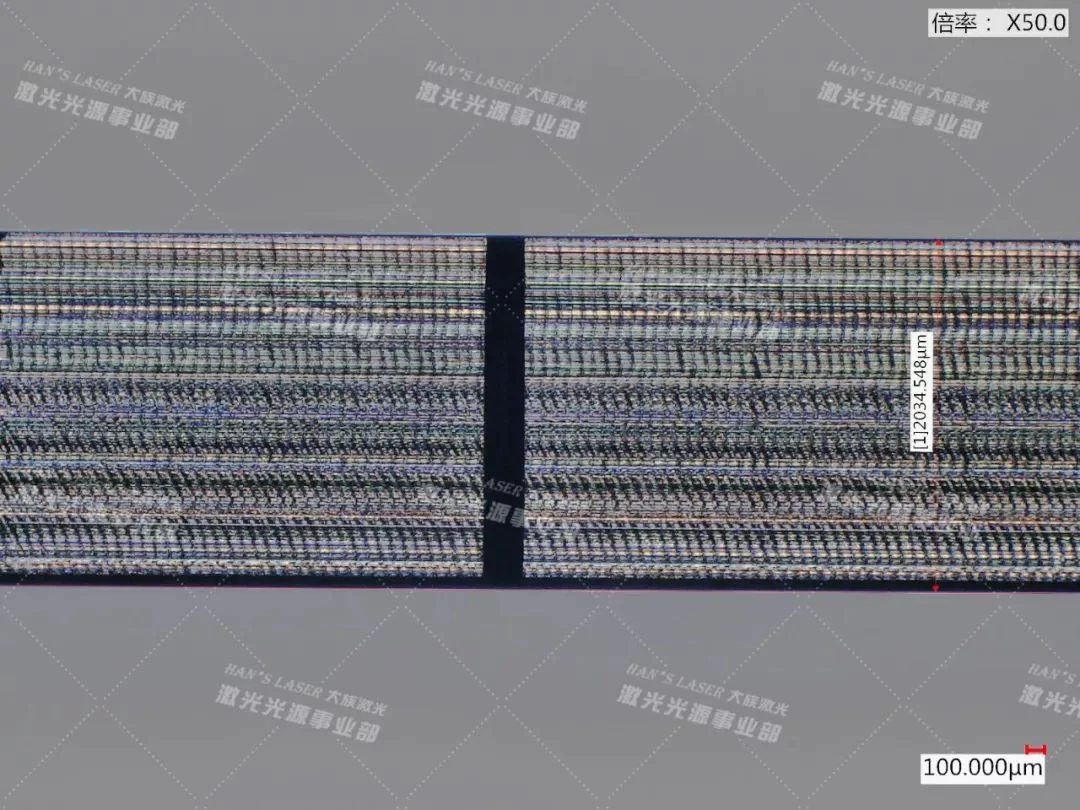

heart stent

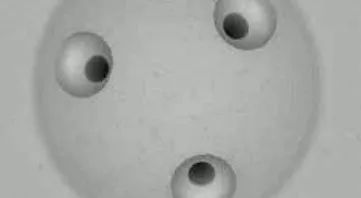

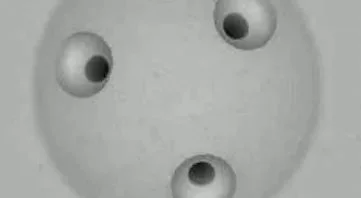

Oil nozzle drilling
Micro-hole drilling
Turbine drill
